Brand: Jinko
Product code: AEP-01669

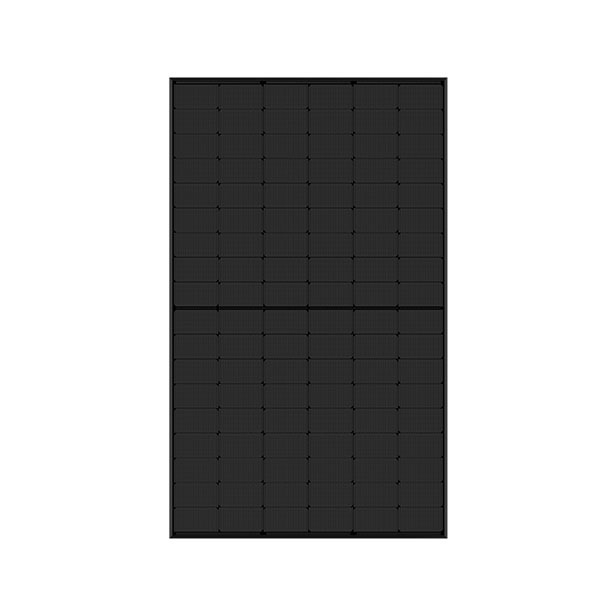

410W Tiger Neo TOPCon N-Type 54 Cell All Black MC4
- 410 W
- 54 cells
- 37.77
- 31.66
- 13.68
- 12.95
410W N-Type TOPCon all-black solar panel, 108 half-cells, MC4, 25-year product warranty.
£61.09 inc. VAT
£50.91 exc. VAT
Out of stock
This 410W panel uses N-Type TOPCon cell technology across 108 half-cut cells (6x18) in Jinko's Tiger Neo line, finished all-black with a black anodised aluminium frame and black backsheet. SMBB busbar technology and Hot 2.0 processing are used to improve light capture and reduce light and elevated-temperature induced degradation. The module measures 1722x1134x30mm and weighs 22kg, rated at 21.00% efficiency with a 1000V DC maximum system voltage. It is certified to withstand 2400 Pa wind load and 5400 Pa snow load, carries IEC 61215 and IEC 61730 certification, and is built with a 400mm/200mm TUV-rated 4.0mm² output cable set. The panel carries a 25-year product warranty and a 30-year linear power warranty, with annual degradation limited to 0.40% and at least 87.4% of rated output retained after 30 years.
Specifications
Electrical
| Maximum Power (NOCT) | 308 Wp |
|---|---|
| Cell Technology | N-type Mono-crystalline, 108 half-cells (6x18) |
| Maximum System Voltage | 1000 V DC (IEC) |
| Maximum Series Fuse Rating | 25 A |
| Power Tolerance | 0~+3% |
| Temperature Coefficient of Isc | 0.046 %/°C |
| Nominal Operating Cell Temperature (NOCT) | 45±2 °C |
Mechanical
| Front Glass | 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
|---|---|
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Output Cables | TUV 1x4.0mm², (+): 400mm, (-): 200mm or customized length |
| Maximum Static Load | 2400 Pa wind / 5400 Pa snow |
Operating
| Operating Temperature | -40°C ~ +85°C |
|---|
Performance
| Annual Degradation | 0.40% |
|---|---|
| Output Retention at Year 30 | 87.4% |
General
| Power | 410 W |
|---|---|
| Cells | 54 cells |
| Panel Voc | 37.77 |
| Panel Vmp | 31.66 |
| Panel Isc | 13.68 |
| Panel Imp | 12.95 |
| Panel Temp Coeff Voc Pct Per | -0.25 |
| Panel Temp Coeff Vmp Pct Per | -0.3 |
| Panel Efficiency | 21 |
| Panel Frame | 30 |
| Panel Weight Kg | 22 |
