Brand: Aiko
Product code: AEP-01629
490W Neostar 3S N-Type Mono-Glass ABC 54 Cell All Black MC4-EVO2A Gen 3
- 490 W
- 54 cells
- 41.1
- 34.7
- 14.88
- 14.13
490W N-Type ABC all-black mono-glass solar panel, 108 cells, 24.5% efficiency, 30-year product and performance warranty.
£162.34 inc. VAT
£135.28 exc. VAT
Out of stock

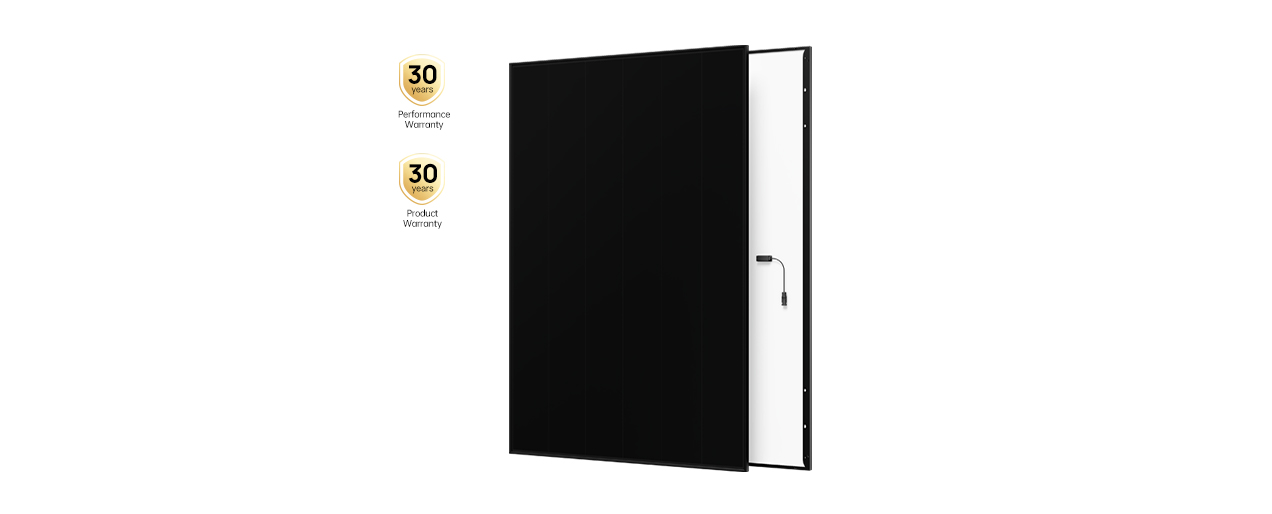

The Aiko Neostar Pro 3S54 (AIKO-A490-MCE54Mb) is a 490W N-Type ABC mono-glass solar panel with an all-black frame and backsheet. It uses 108 cells and reaches 24.5% module efficiency, with Voc 41.10V, Vmp 34.70V, Isc 14.88A and Imp 14.13A. The panel is built with 3.2mm tempered glass, a high weather-resistant backsheet and a black anodised aluminium frame, measures 1762 x 1134mm and weighs 21.1kg. Cabling terminates in Original MC4-EVO2A connectors on a 1200mm cable, and the panel is rated to a maximum system voltage of 1500V DC with a 25A maximum series fuse rating. First-year degradation is capped at 1%, falling to 0.35% a year from year two to 30. It is certified to IEC 61215 and IEC 61730, and carries a 30-year product warranty alongside a 30-year performance warranty.
Specifications
Electrical
| Maximum system voltage | 1500 V DC |
|---|---|
| Maximum series fuse rating | 25 A |
| Temperature coefficient of Isc | +0.05 %/°C |
Construction
| Glass | 3.2mm tempered glass |
|---|---|
| Backsheet | High weather resistant backsheet |
| Cell type | N-Type ABC |
| Frame | Black anodized aluminum |
Connections
| Connector type | Original MC4-EVO2A |
|---|---|
| Cable | 4 mm² (IEC) 12AWG (UL), approx. 1200mm |
Performance
| First-year degradation | ≤1% |
|---|---|
| Annual degradation from year 2-30 | ≤0.35% |
Mechanical
| Maximum static loading | Front 5400Pa, Back 2400Pa |
|---|---|
| Hail test | 25mm diameter hail at 23 m/s |
Safety
| Fire rating | IEC Class C |
|---|
Warranty
| Product warranty | 30 years |
|---|
General
| Power | 490 W |
|---|---|
| Cells | 54 cells |
| Panel Voc | 41.1 |
| Panel Vmp | 34.7 |
| Panel Isc | 14.88 |
| Panel Imp | 14.13 |
| Panel Temp Coeff Voc Pct Per | -0.22 |
| Panel Temp Coeff Vmp Pct Per | -0.26 |
| Panel Efficiency | 24.5 |
| Panel Frame | 30 |
| Panel Weight Kg | 21.1 |
Documents and datasheets
Datasheets
AIKO-A490-MCE54Mb Neostar Pro 3S54 — Datasheet
PDF · 1.3 MB
