Brand: JA SOLAR
Product code: AEP-01665
500W Mono PERC MBB Traceable Single Glass 66 Cell Silver Frame MC4
- 500 W
- 66 cells
- 45.59
- 38.35
- 13.93
- 13.04
500W mono PERC half-cell solar panel, 132 cells, 21.1% efficiency, silver frame, single glass, MC4 connectors.
£82.38 inc. VAT
£68.65 exc. VAT
Out of stock

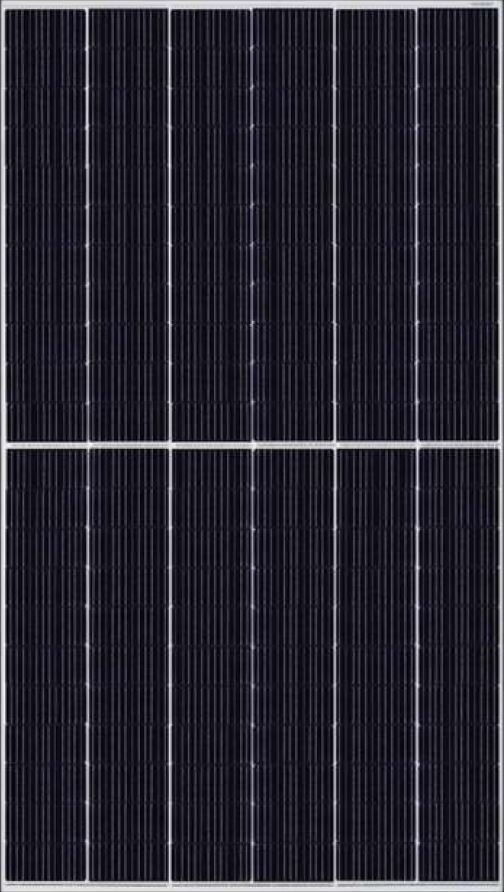

The JA Solar JAM66S30-500/MR is a 500W monocrystalline PERC half-cell module built from 132 11BB half-cut cells in a 66-cell single-glass layout with a silver frame. Efficiency is 21.1%. It is 2094mm long with a 35mm frame. The junction box is IP68-rated with 3 diodes, cabling is 4mm2 (IEC) / 12 AWG (UL) terminated in genuine MC4-EVO2 / QC 4.10-35/45 connectors, and the module is rated for 1500V DC systems. It carries a 12-year product warranty with a 25-year linear performance warranty, certified to IEC 61215 and IEC 61730.
Specifications
Electrical
| Maximum System Voltage | 1500 V DC |
|---|---|
| Maximum Series Fuse Rating | 25 A |
| Cable Cross Section Size | 4mm2 (IEC), 12 AWG (UL) |
| Connector | Genuine MC4-EVO2 / QC 4.10-35/45 |
Mechanical
| No. of cells | 132 (6x22) |
|---|---|
| Junction Box | IP68, 3 diodes |
| Maximum Static Load, Front | 3600 Pa |
| Maximum Static Load, Back | 1600 Pa |
| Operating Temperature | -40 to +85 °C |
| Fire Performance | UL Type 1 |
General
| Power | 500 W |
|---|---|
| Cells | 66 cells |
| Panel Voc | 45.59 |
| Panel Vmp | 38.35 |
| Panel Isc | 13.93 |
| Panel Imp | 13.04 |
| Panel Efficiency | 21.1 |
| Panel Frame | 35 |
