Brand: Enphase
Product code: AEI-00670

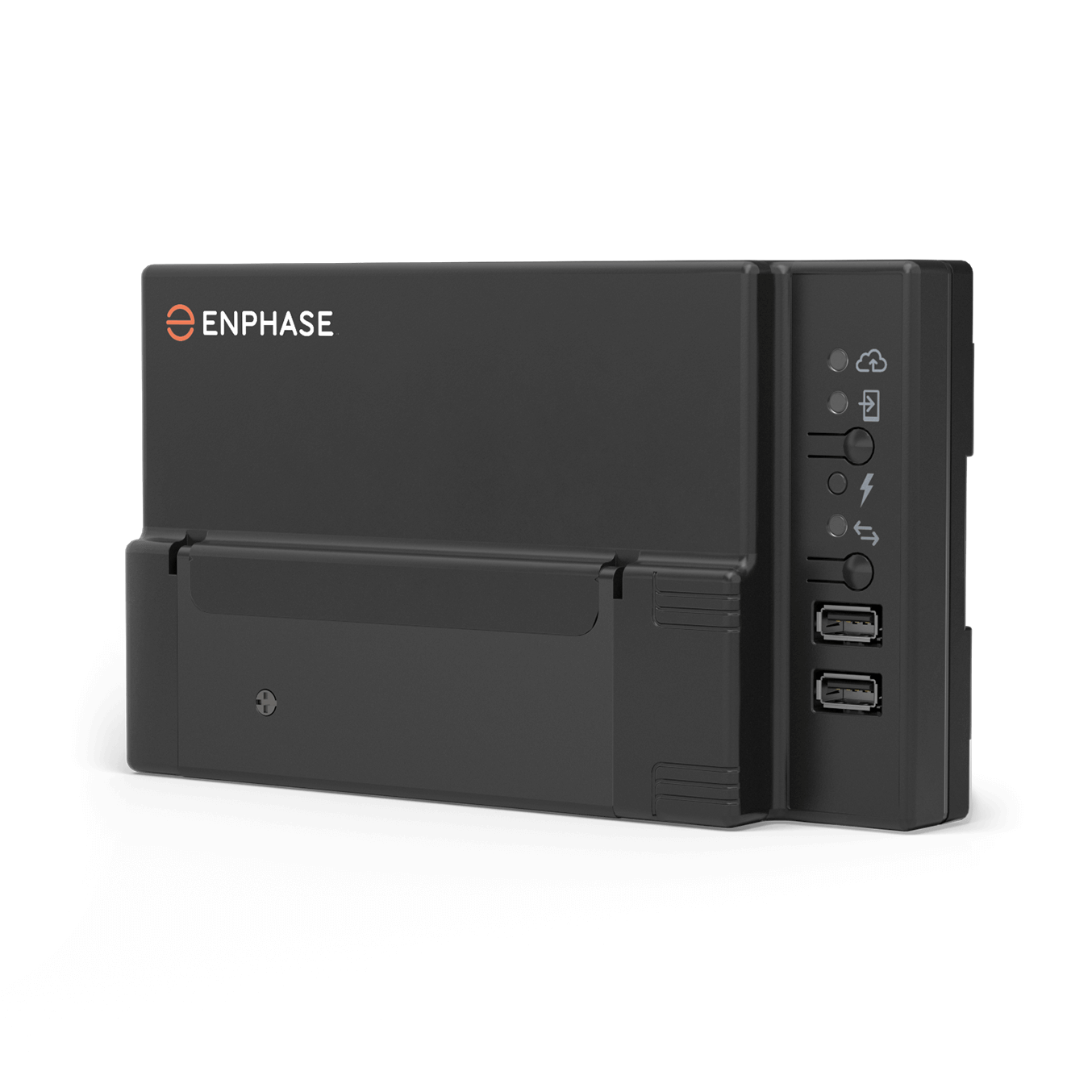

Envoy-Standard Communication Gateway, 230VAC (WIFI ) no plug.
- 5
WiFi-enabled IQ Gateway Standard for Enphase microinverter system monitoring with basic PV production tracking
£184.11 inc. VAT
£153.43 exc. VAT
In stock
The Enphase IQ Gateway Standard (ENV-S-WB-230) is a reliable communications gateway for monitoring Enphase microinverter systems. It collects basic PV production data (±5% accuracy) from up to 300 microinverters and delivers it to the Enphase Enlighten monitoring platform for analysis and remote management. Operating at 230V AC 50Hz with just 3W average consumption, it supports WiFi and Ethernet connectivity for flexible installation. Compact at 126×213×45mm, it mounts on standard DIN rail and includes a 5-year warranty. Designed for indoor installation or outdoor use in a dedicated enclosure.
Specifications
Power Supply
| Nominal grid voltage | 230 V (L-N) |
|---|---|
| Nominal frequency | 50 Hz |
| Maximum power consumption | 5 W |
| Average continuous power consumption | 3 W |
| Minimum/Maximum grid voltage | 184/276 V |
| Minimum/Maximum frequency | 45/55 Hz |
Monitoring
| Power measurement accuracy | ±5 (via PLC)% |
|---|---|
| Maximum microinverters polled | 300 |
Connectivity
| Network interfaces | Wi-Fi, Ethernet optional |
|---|
Environmental
| Ambient temperature range | -40 to 65 °C (outdoor) / -40 to 46°C (enclosure) |
|---|---|
| Maximum altitude | 2500 m |
| Environmental rating | IP30 (outdoor: outdoor-rated enclosure required) |
Construction
| Dimensions (H × W × D) | 126 × 213 × 45 mm |
|---|---|
| Weight | 0.5 kg |
| Mounting | DIN rail (12 modules) |
Warranty
| Warranty | 5 years |
|---|
General
| Optimiser Max Input | 5 |
|---|
Documents and datasheets
Datasheets
IQ Gateway Standard (Envoy-S Standard) — Datasheet
PDF · 1.2 MB
