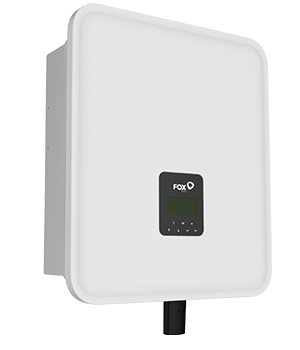

Fox AC 10.0kW Three Phase Charger Inverter

Three phase
180
600

Three-phase 10kW AC-coupled charger-inverter for retrofitting Fox ESS high-voltage batteries onto an existing three-phase solar PV system.

£1,939.20 inc. VAT

£1,616.00 exc. VAT

Out of stock

The Fox ESS AC3-10.0-E is a three-phase AC-coupled charger-inverter from the H3/AC3 range. It has no PV input of its own: it connects on the AC side of an existing three-phase solar installation and charges and discharges a Fox ESS high-voltage battery stack, making it suited to retrofitting battery storage onto a property that already has a separate PV inverter. Rated output is 10kW with a maximum efficiency of 98.0%, and it includes EPS (emergency power supply) backup output for use during a grid outage. The fan-cooled, IP65-rated enclosure is built for outdoor wall mounting, with standby consumption under 15W and remote monitoring through FoxCloud.

Specifications

Electrical

Rated Output Power	10000 W
Max Output Apparent Power	11000 VA
Rated Output Current (per phase)	14.5 A
Max Output Current (per phase)	16.0 A
Rated Grid Voltage	3L/N/PE 380/220; 400/230; 415/240 V

Battery

Max Charge/Discharge Current	26.0 A

Performance

Euro Efficiency	97.30%
Max Efficiency	98.00%
Max Battery Charge Efficiency (PV to BAT)	98.50%
Max Battery Discharge Efficiency (BAT to AC)	97.00%

EPS

EPS Max Output Apparent Power	10000 VA
EPS Peak Output Apparent Power (60s)	15000 VA
EPS Max Current (per phase)	22.7 A

Physical

Dimensions (W x H x D)	449 x 519 x 198 mm
Weight	28 kg
Cooling Method	FAN Cooling
Noise Emission	45 dB

Environmental

Operating Temperature Range	-25 ~ 60 °C
Humidity	0 ~ 100%

Safety

Ingress Protection	IP65
Standby Consumption	<15 W

General

Phases	Three phase
Inverter Battery Vmin	180
Inverter Battery Vmax	600

Documents and datasheets

Datasheets

AC3-10.0-E — Datasheet
PDF · 516 kB
Download
