Brand: Fox ESS
Product code: AEL-00864

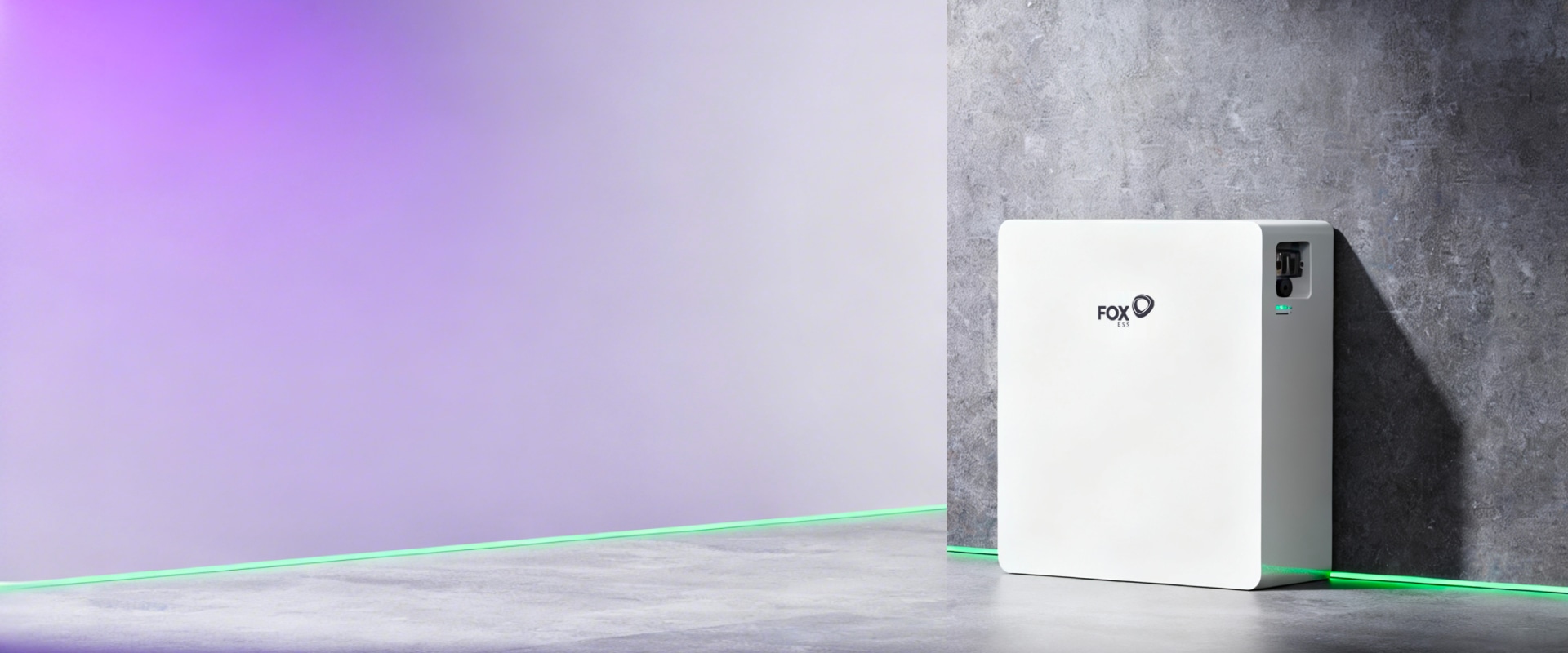

Fox Bundle H1-3.7 + EP12-H Wholegreen package
- 11.52
Fox Bundle H1-3.7 with EP12 11.52kWh battery system for household solar and storage.
£3,473.98 inc. VAT
£2,894.99 exc. VAT
In stock
The Fox Bundle H1-3.7 with EP12 combines a 3.68kW single-phase hybrid inverter with an 11.52kWh high-voltage LiFePO4 battery system. The H1-3.7-E-G2 hybrid inverter features dual MPPT trackers for PV array input, managing energy between solar, battery and grid with natural convection cooling and IP65 outdoor rating. The EP12 Plus battery stores energy with 90% depth of discharge and 30A max charge/discharge current. Together they form a complete household solar and storage system compatible with FoxCloud V2.0 app monitoring. EPS mode with sub-10ms switchover provides backup power during grid outages.
Specifications
Inverter
| Rated Output Power | 3680 W |
|---|---|
| Max. Apparent Power | 4048 VA |
| Max. Output Current | 18.4 A |
| MPPT Trackers | 2 |
| Max. Efficiency | 97.08% |
| European Efficiency | 95.70% |
Battery
| Nominal Energy | 11.52 kWh |
|---|---|
| Max. Charge/Discharge Current | 30 A |
| Depth of Discharge | 90% |
| Battery Type | LFP |
| Round-Trip Efficiency | ≥95% |
General
| Battery Usable | 11.52 |
|---|
Documents and datasheets
Datasheets
H1-3.7-E-G2 with EP12 Plus — Datasheet
PDF · 398 kB
