Brand: Fox ESS
Product code: AEB-00210
Fox EQ4800-L6 HV, 27.96kWh 1x Master 5x Slave
- 268.8
- LFP (LiFePO4)
Fox ESS EQ4800-L6 high-voltage battery stack, 1 master + 5 slave modules, 27.96kWh.
£9,297.73 inc. VAT
£7,748.11 exc. VAT
Out of stock

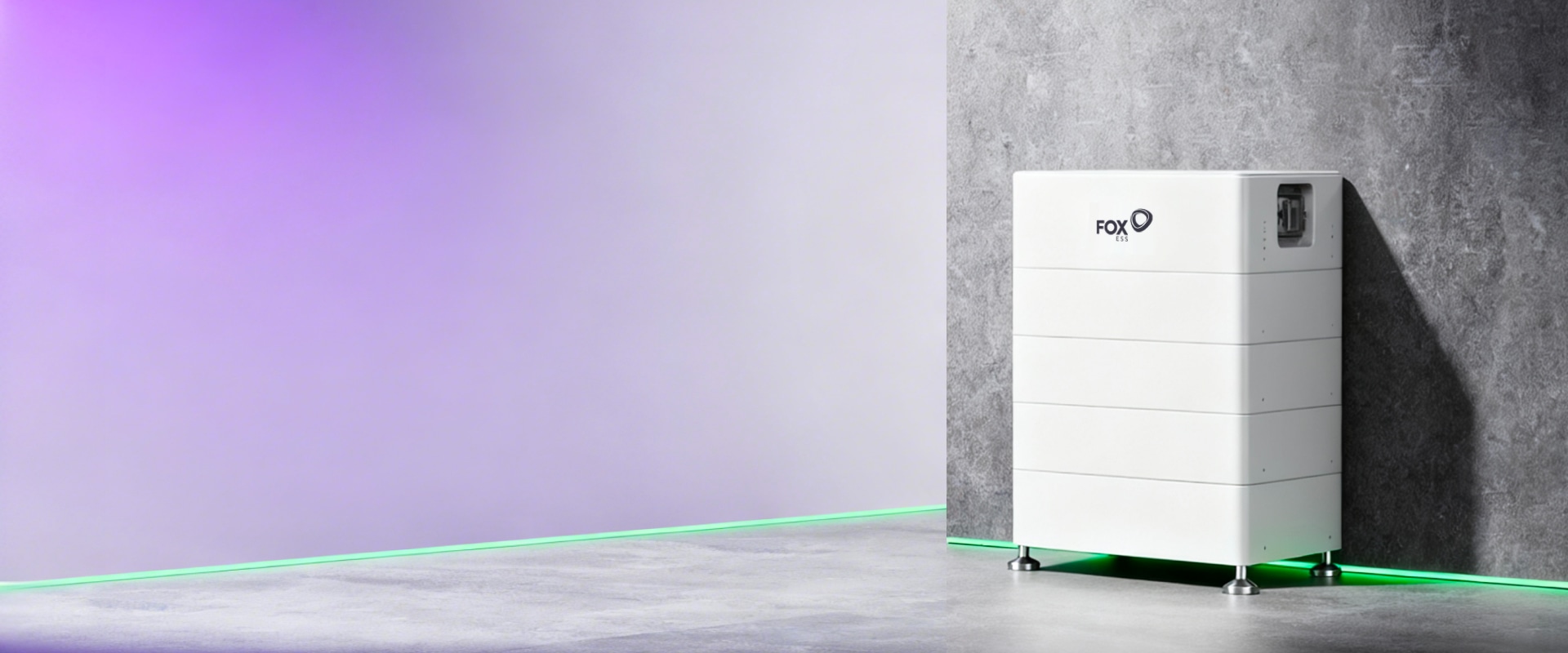

The Fox ESS EQ4800-L6 is a factory-configured stack of one EQ4800-M master module and five EQ4800-S slave modules, giving 27.96kWh at a nominal 268.8V. It communicates with the host hybrid inverter over CAN, supports a recommended charge/discharge current of 30A (50A maximum, 65A peak for 60 seconds) and carries IEC 62619 safety certification. The stack can be expanded up to EQ4800-L9 (9 modules, 41.93kWh) by adding further slave modules. The enclosure is IP65 rated for indoor or outdoor stand installation.
Specifications
Electrical
| Nominal Capacity | 27.96 kWh |
|---|---|
| Operating Voltage | 243.6 ~ 309.1 V |
| Recommend Charge/Discharge Current | 30 A |
| Max. Charge/Discharge Current | 50 A |
| Peak Discharge Current (60s) | 65 A |
| Communication | CAN |
Performance
| Battery Pack Round-Trip Efficiency | 95% |
|---|---|
| Depth Of Discharge | 90% |
Mechanical
| Dimensions (W*D*H) | 570*380*938 mm |
|---|---|
| Ingress Protection | IP65 |
General
| Battery Nominal | 268.8 |
|---|---|
| Battery Chemistry | LFP (LiFePO4) |
Documents and datasheets
Datasheets
EQ4800-L6 — Datasheet
PDF · 97 kB
