Fox ESS 2.0kW S Series 1PH Single Tracker PV Inverter

2 kW
Single phase
500
500
20

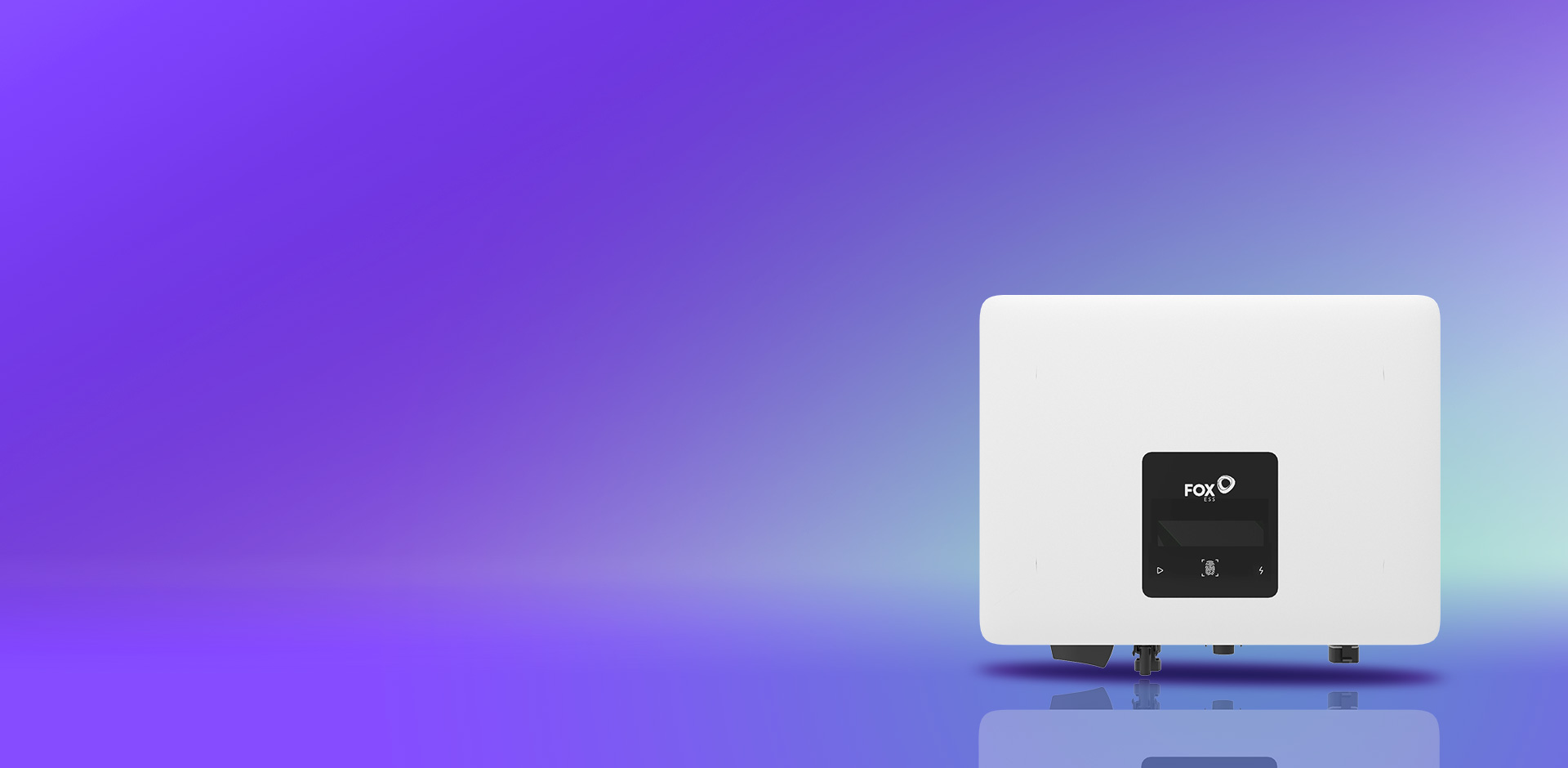

Fox ESS S2000-G3 single-phase PV inverter, 2.0kW rated output with single MPPT tracker.

£274.03 inc. VAT

£228.36 exc. VAT

In stock

The Fox ESS S2000-G3 is a 2.0kW single-phase PV inverter from the latest G3 generation, sized for small to medium residential installations. It features a single MPPT tracker with a 60V start-up voltage and operates across a wide 210–450V DC input window to suit arrays up to 3000W. The inverter reaches 97.4% maximum efficiency and 96.8% European efficiency in a compact, naturally cooled enclosure rated IP65 and measuring 290×220×116mm. Wall-mounted indoors or outdoors, it supports remote monitoring via FoxCloud V2.0 using optional WiFi or built-in RS485 connectivity. Anti-islanding protection and insulation monitoring ensure reliable grid-connected operation.

Specifications

Electrical

Nominal AC Power	2000 W
Max. AC Apparent Power	2200 VA
Max. AC Current	9.6 A
Rated Grid Voltage	220/230/240 V AC
Rated Grid Frequency	50/60 Hz
Max. DC Voltage	500 V DC
Start-up Voltage	60 V DC
MPPT Voltage Range (Full Load)	210–450 V DC
Max. Input Current	20 A DC
Max. Short-Circuit Current	26 A DC
Number of MPPT Trackers	1

Performance

Max. Efficiency	97.4%
European Efficiency	96.8%
MPPT Efficiency	99.0%

Protection

DC Reverse-polarity Protection	Yes
Anti-islanding Protection	Yes
Insulation Monitoring	Yes

Mechanical

Dimensions (W×H×D)	290×220×116 mm
Weight	5.4 kg
Ingress Protection	IP65
Cooling Method	Natural Convection

General

Operating Temperature Range	−25 to +60 °C
Max. Operating Altitude	3000 (derating above 2000m) m
Communication	RS485, Meter/CT, ISO alarm
Rated output	2 kW
Phases	Single phase
Inverter Mppt Vmax	500
Inverter Dc Vmax	500
Inverter Mppt Imax	20

Documents and datasheets

Datasheets

S2000-G3 — Datasheet
PDF · 497 kB
Download
