Brand: Fox ESS
Product code: AEB-00163
Fox ESS CQ16 (16.07kWh) High Voltage Storage Battery for H3 Plus Range
- DC
- LFP
- 51.2
- 4
- 15
16.07kWh high-voltage LFP battery module for the Fox ESS CQ series, stackable up to 15 modules per Control Box with a Fox H3 Plus hybrid inverter.
£2,822.74 inc. VAT
£2,352.28 exc. VAT
Out of stock

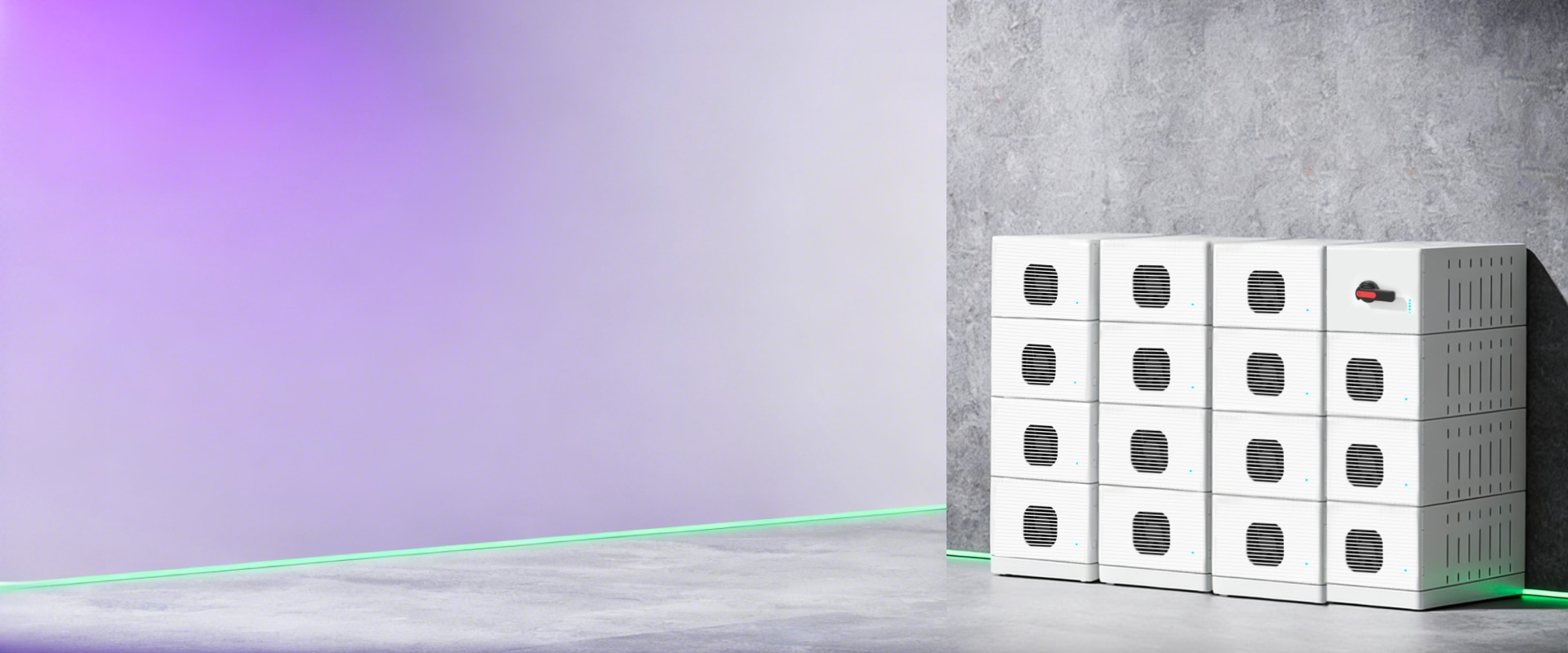

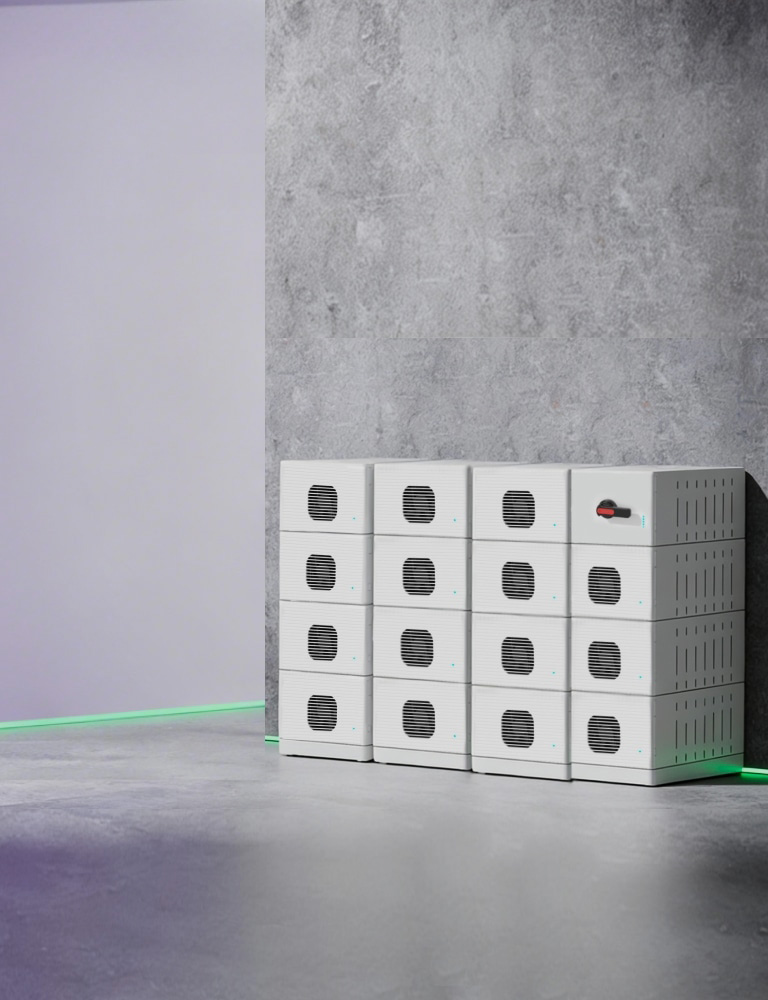

The Fox ESS CQ16 is a high-voltage LiFePO4 battery module with a nominal energy of 16.07kWh and nominal voltage of 51.2V, DC-coupled to a compatible Fox ESS high-voltage hybrid inverter (such as the H3 Plus range) via a dedicated Fox ESS High-Voltage Control Box (CQ BOX), one of which is required per system. Modules stack vertically, floor-mounted indoors, from a minimum of 4 up to 15 in series, scaling a single system from roughly 64kWh to over 240kWh. The battery offers 90% usable depth of discharge, intelligent air cooling, IP20 ingress protection, and a built-in fire protection function, with CAN communication to the control box.
Specifications
Electrical
| Nominal Voltage | 51.2 Vdc |
|---|---|
| Operating Voltage | 46.4 ~ 58.4 Vdc |
| Nominal Capacity | 314 Ah |
| Nominal Energy | 16.07 kWh |
| Max Charge/Discharge Current | 240 A |
| Recommended Discharge Current | 157 A |
| Peak Discharge Current (60s) | 470 A |
Performance
| Depth of Discharge | 90% |
|---|
Physical
| Dimensions (W x H x D) | 390 x 235 x 810 mm |
|---|---|
| Weight (approx.) | 128 kg |
| Cell Net Weight | 88.8 kg |
Environmental
| Operating Temperature | Charge: 0 ~ 55, Discharge: -10 ~ 55 °C |
|---|---|
| Storage Temperature | -10 ~ 50 °C |
| Humidity | 5 ~ 95% |
| Max Altitude | 3000 m |
Safety
| Ingress Protection | IP20 |
|---|---|
| Fire Protection Function | Yes |
General
| Battery Coupling | DC |
|---|---|
| Battery Chemistry | LFP |
| Battery Nominal | 51.2 |
| Battery Modules Min | 4 |
| Battery Modules Max | 15 |
Documents and datasheets
Datasheets
CQ16 — Datasheet
PDF · 125 kB
