Brand: Fox ESS
Product code: AEB-00194
Fox ESS - EMS to parallel multiple H3 Pro Inverters in a system

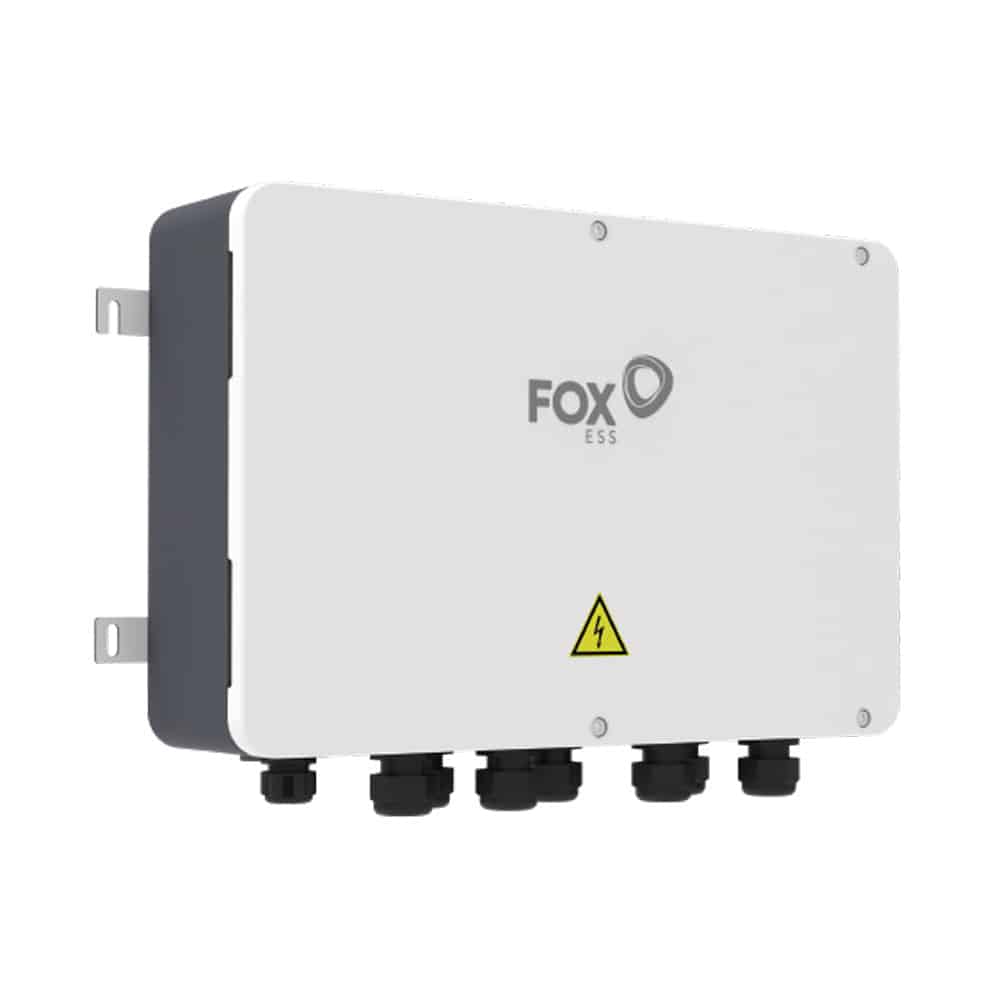

Fox ESS Communication Box (Smart Logger) - data logger and EMS used to parallel multiple H3 Pro inverters in one system.
£630.75 inc. VAT
£525.63 exc. VAT
Out of stock
The Fox ESS Communication Box, marketed as the Smart Logger, is a wall-mounted data logger and energy management unit used to combine and monitor multiple Fox ESS inverters as one system, including parallel H3 Pro installations. It handles up to 30 inverters over RS485 (Modbus RTU / Sunspec), with 2 CAN ports, dual Ethernet, WiFi and an optional 4G connection, plus 8 digital inputs, 4 relay outputs and 4 analogue inputs for site I/O. Power comes from an 85-300Vac supply, drawing 20W typically and 30W at peak. The enclosure is IP66 rated for indoor or outdoor wall mounting, weighs 5kg and operates from -30 to 60 degrees C.
Specifications
Communication
| Max. number of inverters | 30 |
|---|---|
| RS485 interface | 6 |
| CAN | 2 |
| Ethernet | 2 RJ45, 10M/100M |
| Digital Input | 8 0~24Vdc |
| Digital Output | 4 Relay, Normal Open |
| Analog Input | 4 0~20mA or 0~10Vdc |
Power Supply
| AC Input | 85 ~ 300 Vac, 50/60Hz |
|---|---|
| Power Consumption | Typ. 20, Max. 30 W |
Ambient
| Operating Temperature | -30 ~ 60 °C |
|---|
Mechanical
| Dimensions (W*H*D) | 450*300*115 mm |
|---|---|
| Protection Class | IP66 |
Documents and datasheets
Datasheets
Communication Box (Smart Logger) — Datasheet
PDF · 462 kB
