Brand: Fox ESS
Product code: AEB-00172
Fox ESS Evo Series 5.0kW with 10.24kWh
- 5 kW
- 15
- 1
- 80
- 550
- 600

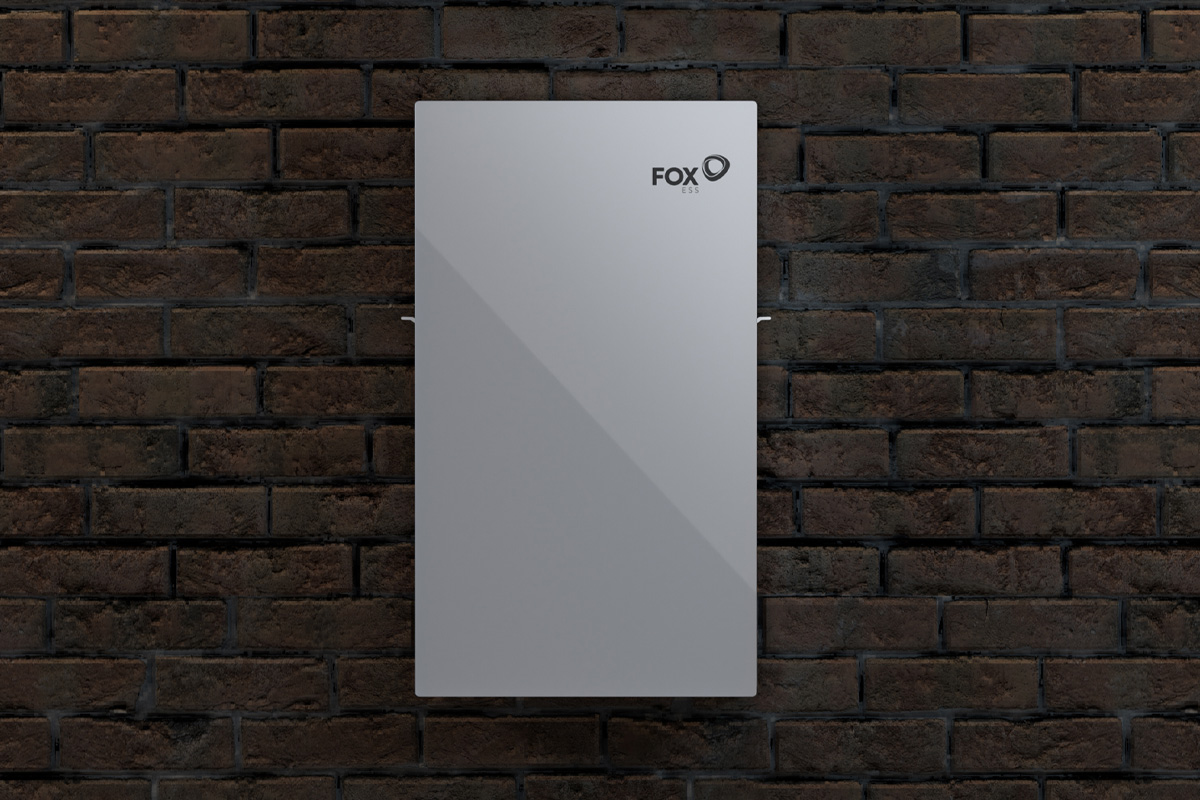

Fox ESS Evo Series EVO 10-5-H all-in-one hybrid inverter with integrated 10.24kWh battery, 5kW rated output.
£4,291.70 inc. VAT
£3,576.41 exc. VAT
In stock
The Fox ESS Evo Series EVO 10-5-H is an all-in-one single-phase hybrid inverter with a 10.24kWh LFP battery built into the same IP66-rated cabinet, rated at 5kW output with two MPP trackers for up to 16kW of PV array. The battery supports 95% depth of discharge over a rated 6,000-cycle life. EPS backup switches in under 4 milliseconds, and up to three units can be run in parallel for larger systems. The floor- or wall-mounted unit uses intelligent air cooling, weighs 113kg and measures 584x1009x197mm. Monitoring runs through Fox ESS's app and web portal over WiFi, LAN or an optional 4G module. It is a self-contained solar-plus-storage system that does not need a separate battery cabinet.
Specifications
Electrical
| Max. PV Array Power | 16000 Wp |
|---|---|
| Rated Power | 5000 W |
| Max. Apparent Power | 5500 VA |
| Rated Output Current (per phase) | 22.7 A |
Battery
| Battery Energy | 10.24 kWh |
|---|---|
| Depth of Discharge | 95% |
| Cycle Life | 6000 |
Performance
| Max. Conversion Efficiency | 97.60% |
|---|---|
| European Efficiency | 97.20% |
Mechanical
| Dimensions (W*H*D) | 584*1009*197 mm |
|---|---|
| Ingress Protection | IP66 |
General
| Switch Time (EPS) | <4 ms |
|---|---|
| Rated output | 5 kW |
| Inverter Dc Max | 15 |
| Inverter Strings Per Mppt | 1 |
| Inverter Mppt Vmin | 80 |
| Inverter Mppt Vmax | 550 |
| Inverter Dc Vmax | 600 |
| Battery Usable | 10.24 |
| Battery Coupling | DC |
| Battery Chemistry | LFP |
Documents and datasheets
Datasheets
EVO 10-5-H — Datasheet
PDF · 467 kB
