Brand: Fox ESS
Product code: AEB-00189

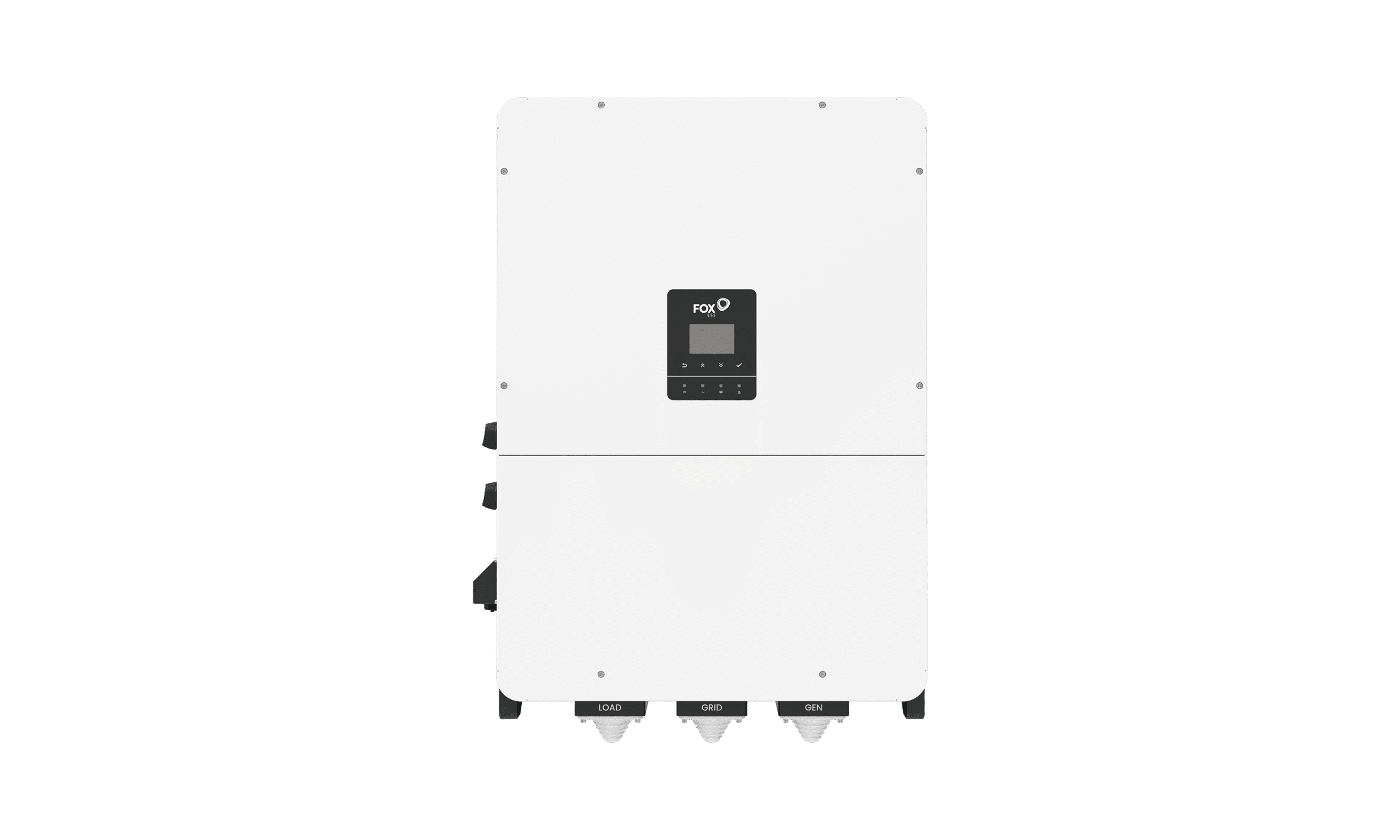

Fox ESS H3 Plus 50kW 3PH Hybrid Inverter
- 50 kW
- Three phase
- Hybrid
- 100
- 2
- 180
Fox ESS H3-50-Plus commercial three-phase hybrid inverter, 50kW rated output with 4 MPPTs and 3 battery ports.
£5,996.19 inc. VAT
£4,996.83 exc. VAT
Out of stock
The Fox ESS H3-50-Plus is a 50kW commercial three-phase hybrid inverter with four MPP trackers covering a 180-850V range for up to 100kW of PV array. It connects to Fox ESS high-voltage LFP batteries over a 180-950V range across three battery ports, with a combined charge/discharge current of up to 240A, and switches to EPS backup power in under 10 milliseconds when the grid fails, supporting more than six hours of backup supply. It weighs 115kg in a 730x1060x305mm wall-mounted enclosure. Operating data can be sent to Fox ESS's FoxCloud monitoring platform, with a colour LCD display on the unit itself. It is designed for commercial and industrial solar-plus-storage installations alongside Fox ESS's high-voltage battery range.
Specifications
Electrical
| Max. Array Power | 100 kW |
|---|---|
| Nominal AC Power | 50 kW |
| Max. AC Output Power | 55 kVA |
| Rated AC Output Current (per phase) | 76 A |
| Max. Charging/Discharging Current | 240 A |
Performance
| European Efficiency | 98.1% |
|---|---|
| Max. Efficiency | 98.5% |
Battery
| Battery Type | LFP (LiFePO4) |
|---|
Mechanical
| Dimensions (W*H*D) | 730*1060*305 mm |
|---|
General
| Switching Time (EPS) | <10 ms |
|---|---|
| Rated output | 50 kW |
| Phases | Three phase |
| Hybrid | Hybrid |
| Inverter Dc Max | 100 |
| Inverter Strings Per Mppt | 2 |
| Inverter Mppt Vmin | 180 |
| Inverter Mppt Vmax | 850 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 40 |
| Inverter Battery Vmin | 180 |
| Inverter Battery Vmax | 950 |
Documents and datasheets
Datasheets
H3-50-Plus — Datasheet
PDF · 429 kB
