Brand: Fox ESS
Product code: AEB-00240

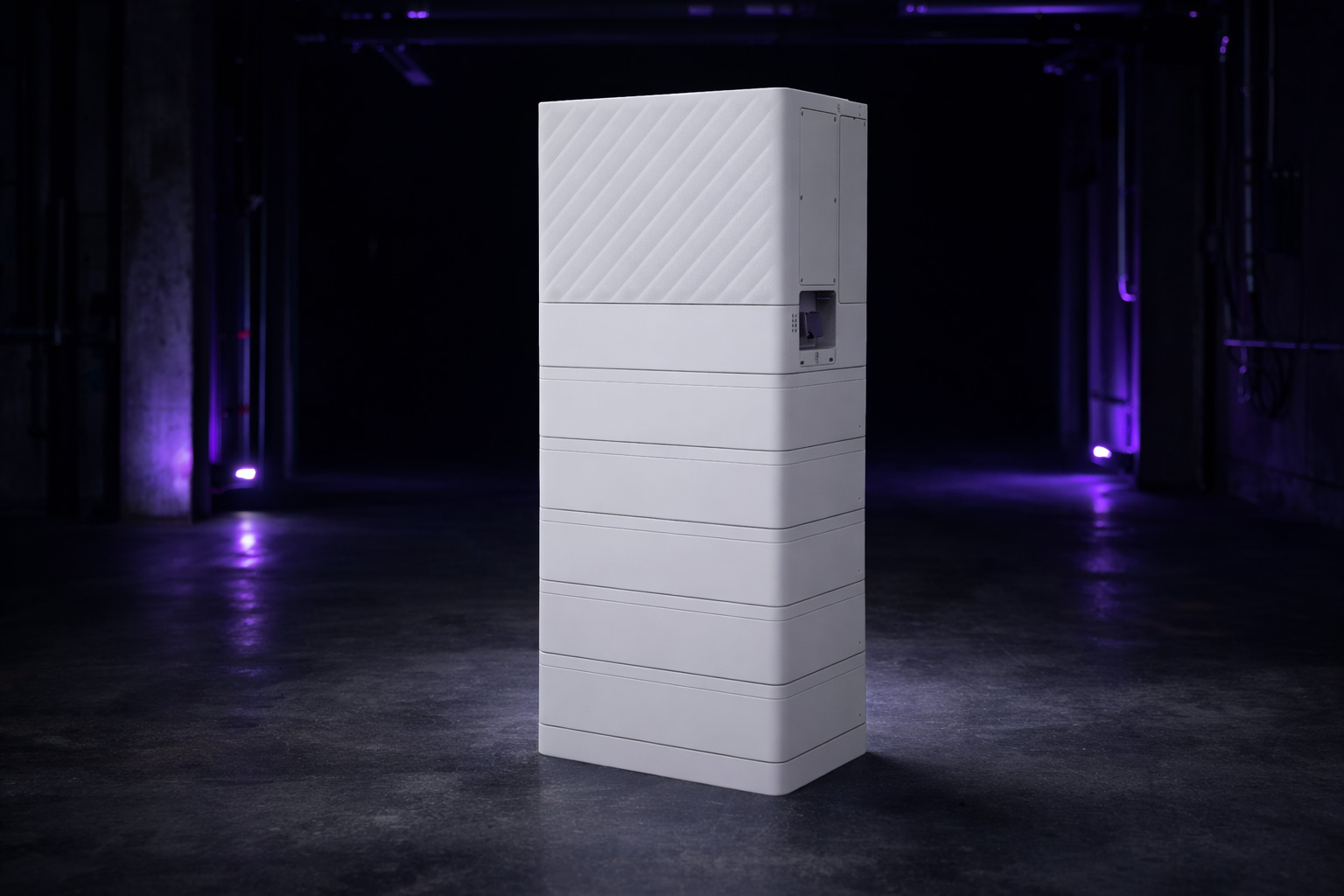

Fox ESS PQ Series 5.0 kW Stackable All-In-One with Heating Function
- 5 kW
- 16
- 80
- 550
- 600
- 20
Fox ESS PQ1-5.0 stackable all-in-one hybrid inverter, 5.0kW, 2 MPPTs, naturally cooled.
£1,365.41 inc. VAT
£1,137.84 exc. VAT
In stock
The PQ1-5.0 is Fox ESS's stackable all-in-one single-phase hybrid inverter for residential energy storage, rated at 5.0kW AC output with 16kW maximum PV array input across two independent MPP trackers. It features a 4ms seamless switchover to battery backup, natural cooling with noise under 35dB, and floor-mounted IP65 rating for indoor or outdoor use. The inverter achieves 97.62% peak and 97.20% European efficiency, supports battery voltages from 80V to 500V, and is designed for single-person installation as the head unit of a stackable battery system. Remote monitoring is available through FoxCloud with Ethernet, WiFi, Bluetooth and optional 4G connectivity.
Specifications
Inverter
| Rated Output Power | 5000 W |
|---|---|
| Max. Apparent Power | 5500 VA |
| Rated Output Current | 22.7 A |
| Min. Battery Voltage @ Full AC Load | 105 V |
| Max. Charge/Discharge Current | 50/50 A |
| EPS Max. Output Current (Bypass) | 40.0 A |
| Switch Time | 4 ms |
| Max. Conversion Efficiency | 97.62% |
| European Efficiency | 97.20% |
Mechanical
| Dimensions (W x H x D) | 570 x 420 x 380 mm |
|---|---|
| Net Weight | 35.0 kg |
| Ingress Protection | IP65 |
| Operating Temperature Range | -25 ~ +60 °C |
| Noise Emission (Average) | <35 dB |
General
| Rated output | 5 kW |
|---|---|
| Inverter Dc Max | 16 |
| Inverter Mppt Vmin | 80 |
| Inverter Mppt Vmax | 550 |
| Inverter Dc Vmax | 600 |
| Inverter Mppt Imax | 20 |
| Inverter Battery Vmin | 80 |
| Inverter Battery Vmax | 500 |
Documents and datasheets
Datasheets
PQ1-5.0 — Datasheet
PDF · 496 kB
