Brand: Fox ESS
Product code: AEB-00233
Fox ESS PQ1 12kW with 10kWh (2x EQS 5000) Storage
- 12 kW
- 20
- 80
- 550
- 600
- 80
Fox ESS PQ1-12.0 12kW hybrid inverter bundled with a 2-module EQ5000 battery, 10kWh storage.
£1,478.67 inc. VAT
£1,232.22 exc. VAT
In stock

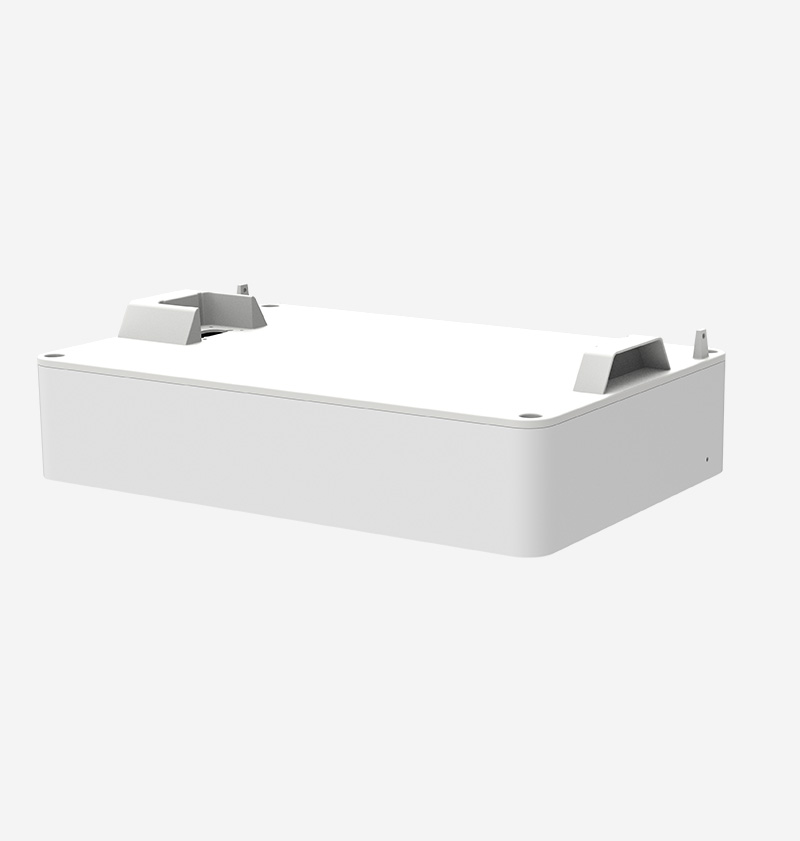

This bundle pairs Fox ESS's PQ1-12.0 single-phase stackable hybrid inverter with a 2-module Fox ESS EQ5000 high-voltage battery stack (one master, one slave), giving around 10kWh of storage. The inverter delivers a rated 12kW AC output from up to 20kW of PV across four MPP trackers, charges the battery at up to 12kW, and includes a built-in 63A bypass with a sub-4ms switch to backup power. The EQ5000 modules are LFP cells rated for 90% depth of discharge, stacking in series behind the master unit so the system can later be extended with further EQ5000 modules. The floor-mounted inverter is IP65-rated and monitored remotely via FoxCloud.
Specifications
Inverter
| Rated Output Power | 12000 W |
|---|---|
| Max. Apparent Power | 13200 VA |
| Rated Output Current | 54.5 A |
| Max. Charge/Discharge Current | 50/50 A |
| EPS Max. Output Current (Bypass) | 63.0 A |
| Switch Time | 4 ms |
| Max. Conversion Efficiency | 97.62% |
Mechanical
| Inverter Dimensions (W x H x D) | 570 x 420 x 380 mm |
|---|---|
| Inverter Net Weight | 35.0 kg |
| Ingress Protection | IP65 |
General
| Rated output | 12 kW |
|---|---|
| Inverter Dc Max | 20 |
| Inverter Mppt Vmin | 80 |
| Inverter Mppt Vmax | 550 |
| Inverter Dc Vmax | 600 |
| Inverter Battery Vmin | 80 |
| Inverter Battery Vmax | 500 |
| Inverter Ac Charge | 12 |
Documents and datasheets
Datasheets
PQ1-12.0 with EQ5000 Battery (2 modules) — Datasheet
PDF · 496 kB
