Brand: Fox ESS
Product code: AEB-00235

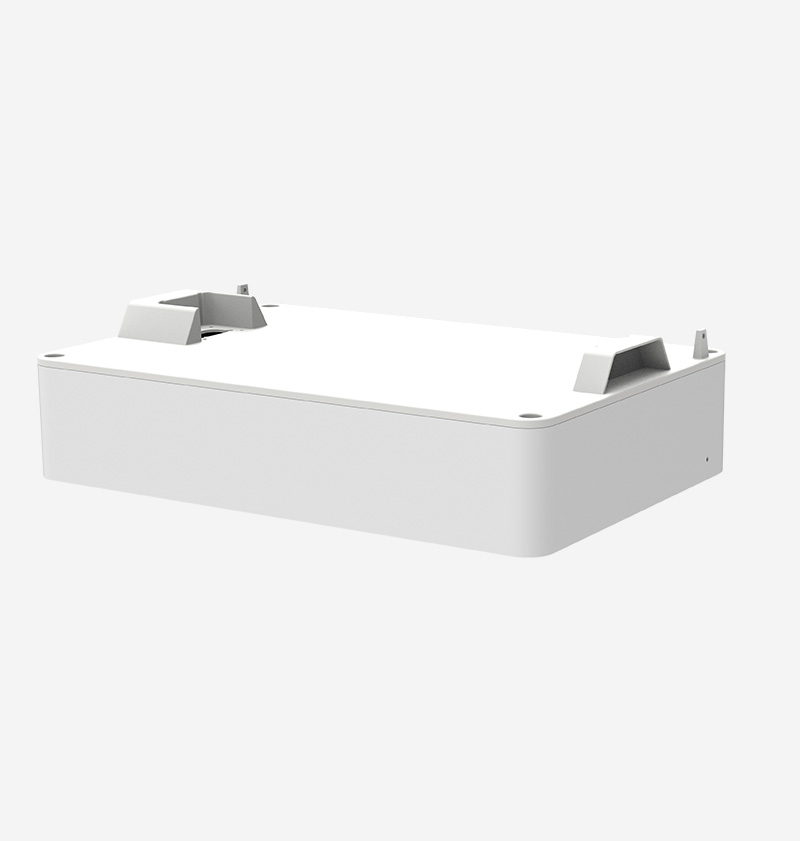

Fox ESS PQ1 12kW with 30kWh (6x EQS 5000) Storage
- 12 kW
- 20
- 80
- 550
- 600
- 20
12kW single-phase hybrid inverter bundled with a 6-module EQ5000 battery pack (29.52kWh nominal).
£10,511.81 inc. VAT
£8,759.84 exc. VAT
In stock
This bundle pairs Fox ESS's PQ1-12.0 single-phase hybrid inverter - the largest in the PQ1 stackable all-in-one range - with a six-module EQ5000 high-voltage battery stack. The inverter delivers a rated 12kW AC output from up to 20kW of PV across four MPP trackers, charges the battery at up to 12kW, and switches to backup power in under 4ms with a 63A bypass for whole-house support during a grid outage. The EQ5000 battery is built from LFP modules that scale from one master unit up to six in series; this configuration provides 29.52kWh of nominal storage at 90% depth of discharge. The floor-mounted inverter is IP65-rated for outdoor use and monitored remotely via the FoxCloud app. Suits residential or small commercial installations needing the highest single-phase output in the PQ1 range alongside full backup capability.
Specifications
Inverter
| Rated output power | 12000 W |
|---|---|
| Max apparent power | 13200 VA |
| Rated output current | 54.5 A |
| Max output current | 60.0 A |
| Min battery voltage at full AC load | 247 V |
| MPPT voltage range at full load | 155 ~ 550 V |
| Max conversion efficiency | 97.62% |
| Max charge/discharge current | 50/50 A |
| EPS (backup) max output current, bypass | 63.0 A |
Battery
| Depth of discharge | 90% |
|---|---|
| Nominal capacity (6-module pack) | 29.52 kWh |
Mechanical
| Inverter dimensions (W x H x D) | 570 x 420 x 380 mm |
|---|---|
| Inverter net weight | 35.0 kg |
| Ingress protection | IP65 |
| Operating temperature range | -25 to +60 °C |
General
| Rated output | 12 kW |
|---|---|
| Inverter Dc Max | 20 |
| Inverter Mppt Vmin | 80 |
| Inverter Mppt Vmax | 550 |
| Inverter Dc Vmax | 600 |
| Inverter Mppt Imax | 20 |
| Inverter Battery Vmin | 80 |
| Inverter Battery Vmax | 500 |
| Inverter Ac Charge | 12 |
Documents and datasheets
Datasheets
Fox ESS PowerQ PQ1-12.0 Single-Phase Hybrid Inverter with EQ5000 Battery (6 modules) — Datasheet
PDF · 496 kB
Manuals and guides
Fox ESS PowerQ PQ1-12.0 Single-Phase Hybrid Inverter with EQ5000 Battery (6 modules) — Manual
PDF · 457 kB
Fox ESS PowerQ PQ1-12.0 Single-Phase Hybrid Inverter with EQ5000 Battery (6 modules) — Manual
PDF · 496 kB
