Brand: Fox ESS
Product code: AEB-00239

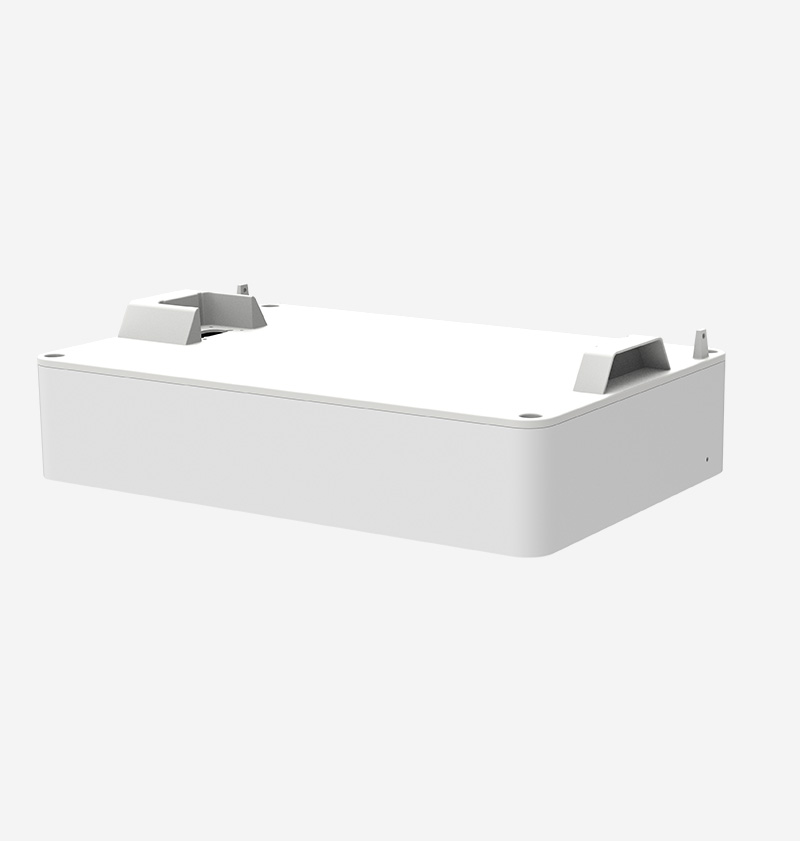

Fox ESS PQ1 3.7kW with 30kWh (6x EQS 5000) Storage
- 3.7 kW
- 16
- 80
- 550
- 600
- 20
Fox ESS PQ1-3.7 stackable hybrid inverter with maximum 29.52kWh EQ5000 battery storage.
£10,473.28 inc. VAT
£8,727.73 exc. VAT
In stock
Maximum capacity residential energy storage system pairing Fox ESS's 3.7kW PQ1 stackable hybrid inverter with six EQ5000 LFP battery modules for the full system capacity of 29.52kWh. The inverter handles up to 16kW PV array input across two independent MPPT trackers with 80-550V window and delivers 4ms switchover to battery backup. Six EQ5000 modules connected in series provide 90% depth of discharge, all connected via plug-and-play cables for installation. System includes naturally cooled inverter head unit and full remote monitoring via FoxCloud with WiFi, Ethernet and Bluetooth.
Specifications
Inverter
| Rated Output Power | 3680 W |
|---|---|
| Max. Apparent Power | 3680 VA |
| Rated Output Current | 16.7 A |
| Max. Charge/Discharge Current | 50/50 A |
| Switch Time | 4 ms |
| Max. Conversion Efficiency | 97.60% |
Battery
| Nominal Capacity (6-module pack) | 29.52 kWh |
|---|---|
| Chemistry | LFP (LiFePO4) |
| Depth of Discharge | 90% |
| Maximum Modules in Series | 6 |
General
| Rated output | 3.7 kW |
|---|---|
| Inverter Dc Max | 16 |
| Inverter Mppt Vmin | 80 |
| Inverter Mppt Vmax | 550 |
| Inverter Dc Vmax | 600 |
| Inverter Mppt Imax | 20 |
| Inverter Battery Vmin | 80 |
| Inverter Battery Vmax | 500 |
| Battery Chemistry | LFP (LiFePO4) |
Documents and datasheets
Datasheets
PQ1-3.7 with 30kWh EQ5000 Storage — Datasheet
PDF · 496 kB
