Brand: Fox ESS
Product code: AEB-00241
Fox ESS PQ1 5kW with 10kWh (2x EQS 5000) Storage
- 5 kW
- 16
- 80
- 550
- 600
- 20
Fox ESS PQ1-5.0 stackable hybrid inverter with 9.84kWh EQ5000 battery storage.
£4,403.31 inc. VAT
£3,669.43 exc. VAT
In stock

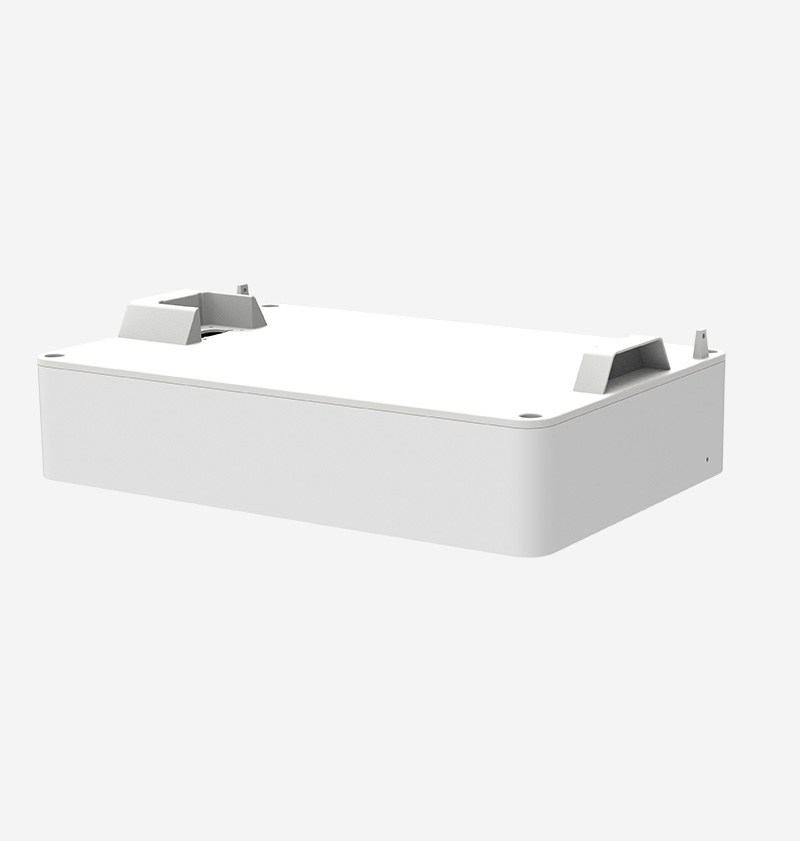

Residential energy storage system combining Fox ESS's 5.0kW PQ1 stackable hybrid inverter with two EQ5000 LFP battery modules for 9.84kWh total usable capacity. The 5.0kW inverter accepts up to 16kW PV input with two MPPT trackers and 4ms seamless battery backup switchover. EQ5000 modules are LFP chemistry with 90% depth of discharge, connected via plug-and-play cabling. Naturally cooled with less than 35dB noise, the system includes remote monitoring via FoxCloud, with Ethernet, WiFi and Bluetooth connectivity for full system oversight.
Specifications
Inverter
| Rated Output Power | 5000 W |
|---|---|
| Max. Apparent Power | 5500 VA |
| Rated Output Current | 22.7 A |
| Max. Charge/Discharge Current | 50/50 A |
| Switch Time | 4 ms |
| Max. Conversion Efficiency | 97.62% |
Battery
| Nominal Capacity (2-module pack) | 9.84 kWh |
|---|---|
| Chemistry | LFP (LiFePO4) |
General
| Rated output | 5 kW |
|---|---|
| Inverter Dc Max | 16 |
| Inverter Mppt Vmin | 80 |
| Inverter Mppt Vmax | 550 |
| Inverter Dc Vmax | 600 |
| Inverter Mppt Imax | 20 |
| Inverter Battery Vmin | 80 |
| Inverter Battery Vmax | 500 |
| Battery Chemistry | LFP (LiFePO4) |
Documents and datasheets
Datasheets
PQ1-5.0 with 10kWh EQ5000 Storage — Datasheet
PDF · 496 kB
