Brand: Fox ESS
Product code: AEB-00243

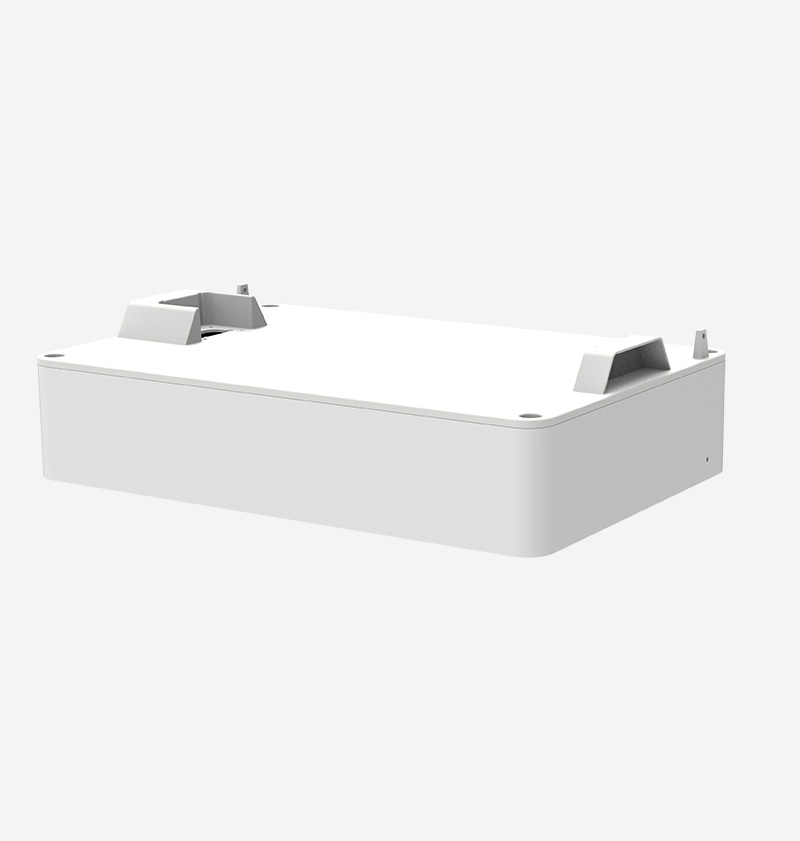

Fox ESS PQ1 5kW with 30kWh (6x EQS 5000) Storage
- 5 kW
- 16
- 80
- 550
- 600
- 20
Fox ESS PQ1-5.0 stackable hybrid inverter with maximum 29.52kWh EQ5000 battery storage.
£10,479.12 inc. VAT
£8,732.60 exc. VAT
In stock
Maximum capacity residential energy storage system pairing Fox ESS's 5.0kW PQ1 stackable hybrid inverter with six EQ5000 LFP battery modules for the full 29.52kWh usable capacity. The 5.0kW inverter handles 16kW maximum PV array input with two MPPT trackers and delivers 4ms switchover to battery backup. Six EQ5000 modules with 90% depth of discharge are connected via plug-and-play cabling for installation. System features naturally cooled operation under 35dB, remote FoxCloud monitoring and multiple connectivity options for comprehensive system management.
Specifications
Inverter
| Rated Output Power | 5000 W |
|---|---|
| Max. Apparent Power | 5500 VA |
| Rated Output Current | 22.7 A |
| Max. Charge/Discharge Current | 50/50 A |
| Switch Time | 4 ms |
| Max. Conversion Efficiency | 97.62% |
Battery
| Nominal Capacity (6-module pack) | 29.52 kWh |
|---|---|
| Chemistry | LFP (LiFePO4) |
| Maximum Modules in Series | 6 |
General
| Rated output | 5 kW |
|---|---|
| Inverter Dc Max | 16 |
| Inverter Mppt Vmin | 80 |
| Inverter Mppt Vmax | 550 |
| Inverter Dc Vmax | 600 |
| Inverter Mppt Imax | 20 |
| Inverter Battery Vmin | 80 |
| Inverter Battery Vmax | 500 |
| Battery Chemistry | LFP (LiFePO4) |
Documents and datasheets
Datasheets
PQ1-5.0 with 30kWh EQ5000 Storage — Datasheet
PDF · 496 kB
