Brand: Fox ESS
Product code: AEB-00245
Fox ESS PQ1 8kW with 10kWh (2x EQS 5000) Storage
- 8 kW
- 20
- 80
- 550
- 600
- 20
Fox ESS PQ1-8.0 stackable hybrid inverter with 9.84kWh EQ5000 battery storage.
£4,413.71 inc. VAT
£3,678.09 exc. VAT
Out of stock

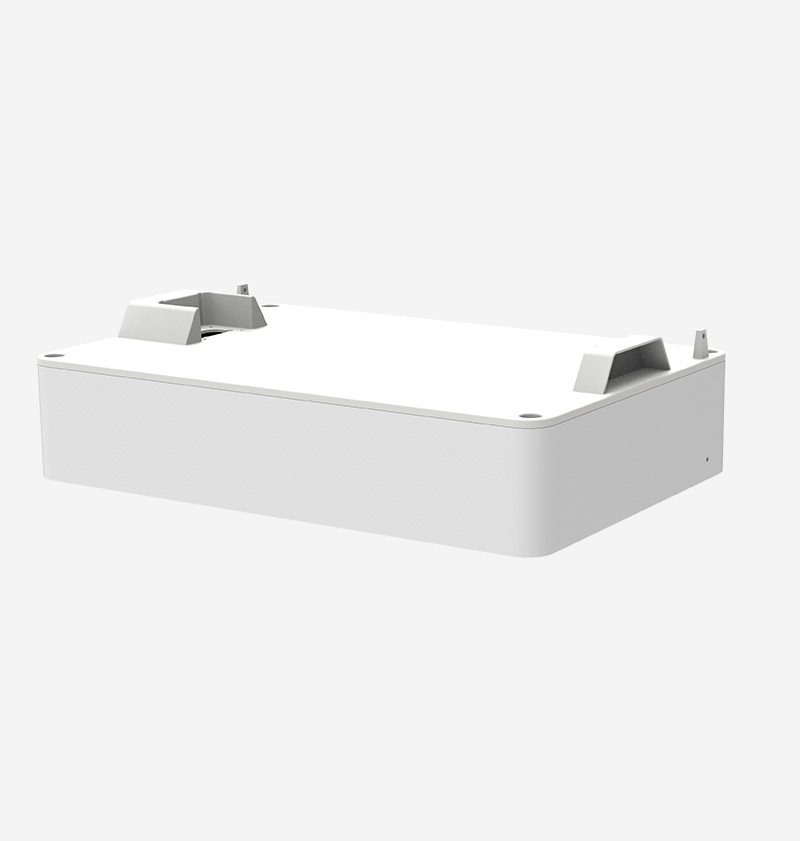

Residential energy storage system combining Fox ESS's 8.0kW PQ1 stackable hybrid inverter with two EQ5000 LFP battery modules for 9.84kWh usable capacity. The largest single-phase inverter in the PQ1 range, the 8.0kW model accepts up to 20kW PV input with four independent MPPT trackers and provides 4ms seamless battery backup switchover. EQ5000 modules are LFP chemistry with 90% depth of discharge, connected via plug-and-play cables. System features active cooling for higher loads, quiet operation under 50dB and comprehensive remote monitoring via FoxCloud.
Specifications
Inverter
| Rated Output Power | 8000 W |
|---|---|
| Max. Apparent Power | 8800 VA |
| Rated Output Current | 36.4 A |
| Max. Charge/Discharge Current | 50/50 A |
| Switch Time | 4 ms |
| Max. Conversion Efficiency | 97.62% |
Battery
| Nominal Capacity (2-module pack) | 9.84 kWh |
|---|---|
| Chemistry | LFP (LiFePO4) |
General
| Rated output | 8 kW |
|---|---|
| Inverter Dc Max | 20 |
| Inverter Mppt Vmin | 80 |
| Inverter Mppt Vmax | 550 |
| Inverter Dc Vmax | 600 |
| Inverter Mppt Imax | 20 |
| Inverter Battery Vmin | 80 |
| Inverter Battery Vmax | 500 |
| Battery Chemistry | LFP (LiFePO4) |
Documents and datasheets
Datasheets
PQ1-8.0 with 10kWh EQ5000 Storage — Datasheet
PDF · 496 kB
