Brand: Fox ESS
Product code: AEB-00246
Fox ESS PQ1 8kW with 20kWh (4x EQS 5000) Storage
- 8 kW
- 20
- 80
- 550
- 600
- 20
Fox ESS PQ1-8.0 stackable hybrid inverter with a four-module EQ5000 battery stack.
£1,490.32 inc. VAT
£1,241.94 exc. VAT
Out of stock

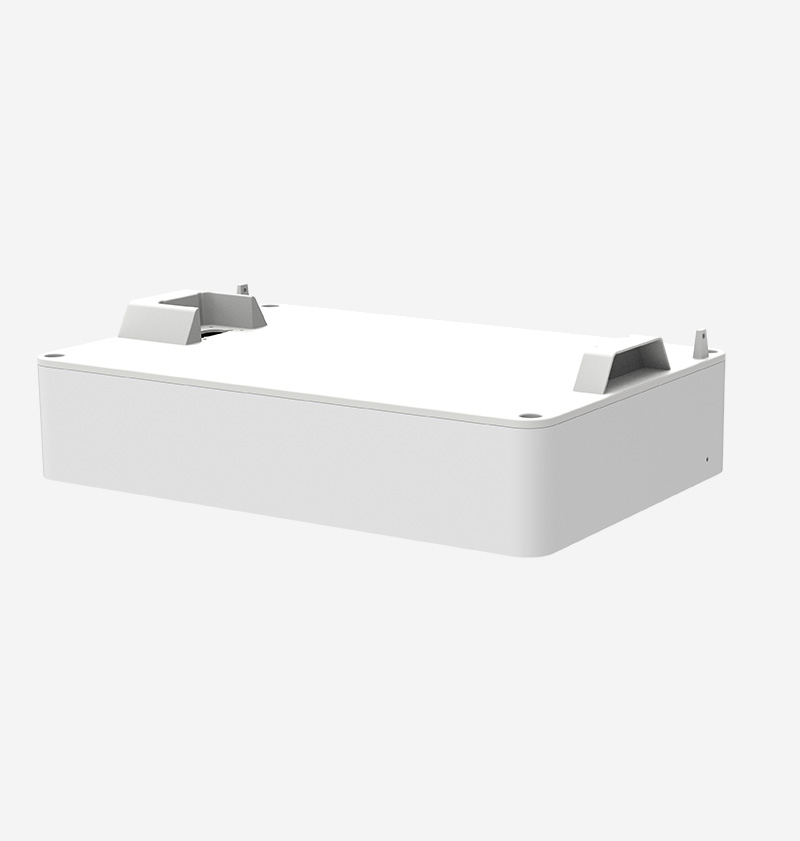

Extended residential energy storage system pairing Fox ESS's 8.0kW PQ1 stackable hybrid inverter with four EQ5000 LFP battery modules in series. The 8.0kW inverter handles 20kW maximum PV array input with four independent MPPT trackers and delivers 4ms switchover to battery backup. The four EQ5000 modules offer 90% depth of discharge and connect via plug-and-play cabling. System includes active cooling for reliability, quiet operation under 50dB and remote FoxCloud monitoring with comprehensive connectivity options.
Specifications
Inverter
| Rated Output Power | 8000 W |
|---|---|
| Max. Apparent Power | 8800 VA |
| Rated Output Current | 36.4 A |
| Max. Charge/Discharge Current | 50/50 A |
| Switch Time | 4 ms |
| Max. Conversion Efficiency | 97.62% |
Battery
| Chemistry | LFP (LiFePO4) |
|---|
General
| Rated output | 8 kW |
|---|---|
| Inverter Dc Max | 20 |
| Inverter Mppt Vmin | 80 |
| Inverter Mppt Vmax | 550 |
| Inverter Dc Vmax | 600 |
| Inverter Mppt Imax | 20 |
| Inverter Battery Vmin | 80 |
| Inverter Battery Vmax | 500 |
| Battery Chemistry | LFP (LiFePO4) |
Documents and datasheets
Datasheets
PQ1-8.0 with 20kWh EQ5000 Storage — Datasheet
PDF · 496 kB
