Brand: Fox ESS
Product code: AEB-00170

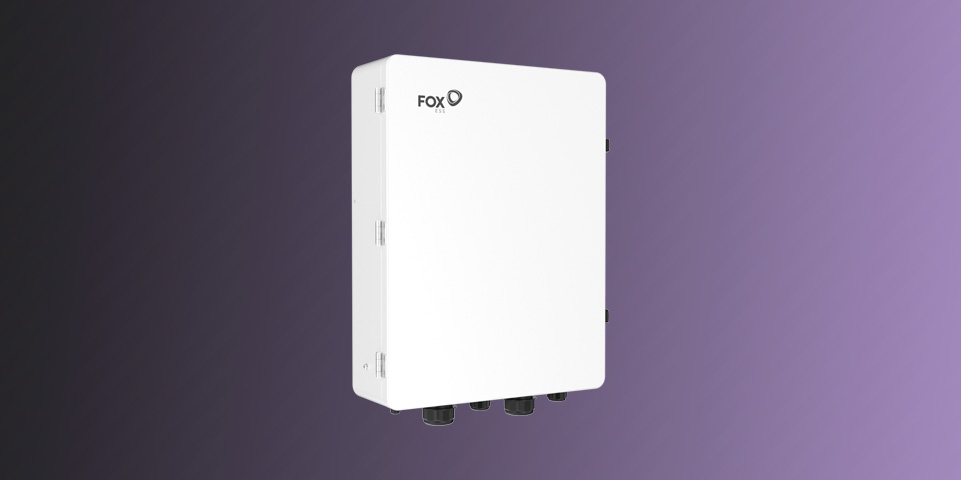

Fox ESS Single Phase EPS Box - Whole Home Back Up Box
- Single phase
Fox ESS EPS Box-SP single-phase whole-home backup switching box, 100A utility input, IP65.
£556.42 inc. VAT
£463.68 exc. VAT
In stock
The Fox ESS EPS Box-SP is a single-phase backup switching box that sits between the grid, a compatible Fox ESS single-phase hybrid inverter or AC charger (H1-G2, K, PowerQ or Evo series) and the household load, switching the installation automatically between on-grid and off-grid supply for whole-home backup. It is rated for a maximum utility input of 100A per phase and a 63A inverter-side connection, in a wall-mounted, naturally-cooled metal enclosure rated IP65 for indoor or outdoor use. It weighs 16kg net and operates from -25°C to +60°C. Communication to the inverter runs over RS-485, with built-in meter support. It is intended as an accessory for a compatible Fox ESS single-phase hybrid system, not as a standalone product.
Specifications
Electrical
| Rated Voltage | 220/230/240 VAC |
|---|---|
| Max. Utility Input Current (per phase) | 100 A |
| Max. Inverter Grid Input Current (per phase) | 63 A |
| Max. Output Current (per phase, Load) | 100 A |
Mechanical
| Dimensions (W*H*D) | 420*550*138.5 mm |
|---|---|
| Gross Weight | 19.3 kg |
| Ingress Protection | IP65 |
General
| Operating Temperature Range | -25 ~ +60 °C |
|---|---|
| Phases | Single phase |
Documents and datasheets
Datasheets
EPS BOX-SP — Datasheet
PDF · 345 kB
