Brand: Fox ESS
Product code: AEB-00183
Fox H3 Smart 12.0KW 3ph Hybrid Inverter
- 12 kW
- Three phase
- Hybrid
- 22.5
- 120
- 950

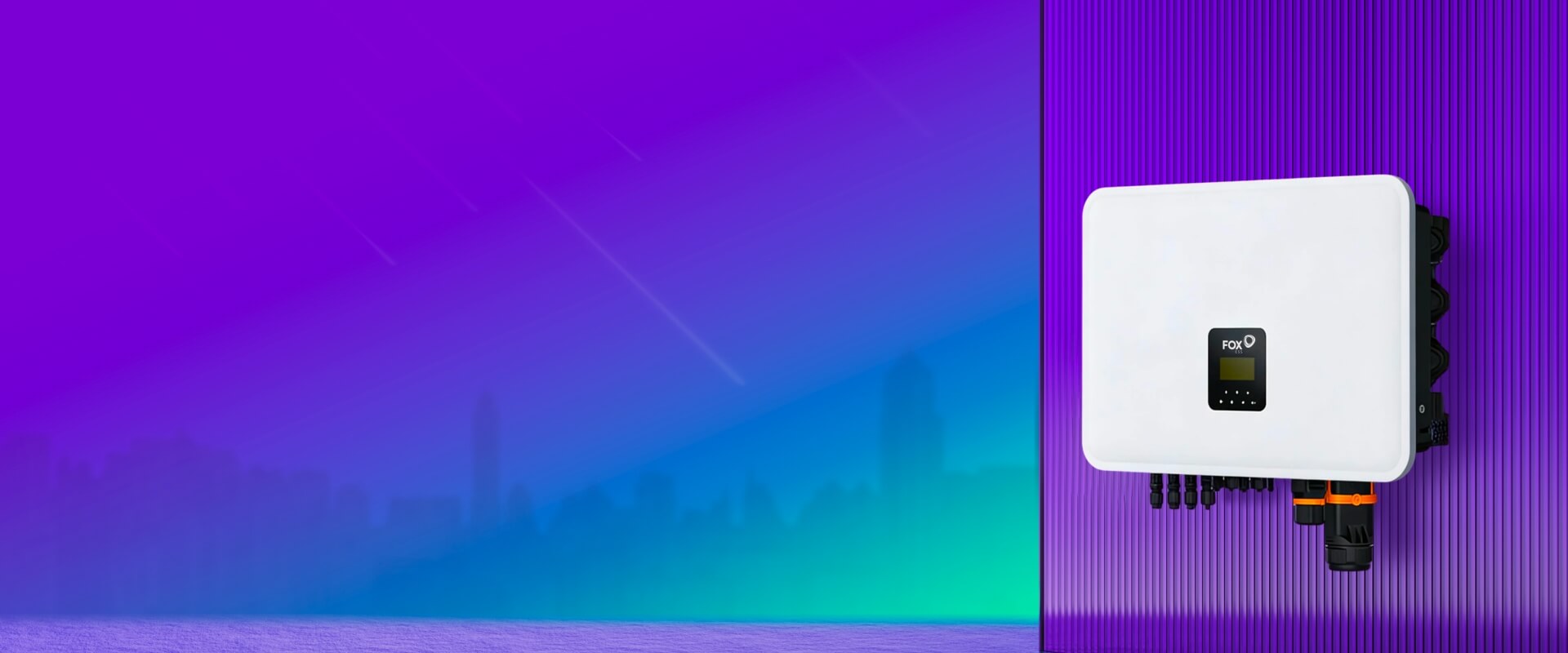

Fox ESS H3-12.0-Smart three-phase hybrid inverter, 12kW rated output with 3 MPPTs and EPS backup.
£1,814.05 inc. VAT
£1,511.71 exc. VAT
In stock
The Fox ESS H3-12.0-Smart is a 12kW three-phase hybrid inverter with three independent MPP trackers covering a 120-950V range for a 24kW PV array. It charges and discharges Fox ESS high-voltage LFP batteries over a 100-800V window, with a maximum charge/discharge current of 50A, and switches to EPS backup power in under 10 milliseconds when the grid fails. The wall-mounted enclosure is rated IP65 for indoor or outdoor installation, weighs 34kg net and uses fan cooling at this power rating. Communication covers Ethernet, WiFi, Bluetooth and an optional 4G module, with built-in meter and SG Ready support for remote monitoring through Fox ESS's app and web portal. It is designed to pair with Fox ESS's high-voltage battery range for three-phase solar and storage installations.
Specifications
Electrical
| Max. Array Power | 24000 Wp |
|---|---|
| Nominal AC Power | 12000 W |
| Max. Apparent AC Power | 13200 VA |
| Rated AC Current (per phase) | 18.2 A |
| Max. Charge/Discharge Current | 50.0 A |
Performance
| Max. Efficiency | 97.90% |
|---|---|
| European Efficiency | 97.20% |
Battery
| Battery Type | Lithium-Ion battery (LFP) |
|---|
Mechanical
| Dimensions (W*H*D) | 600*450*226 mm |
|---|---|
| Ingress Protection | IP65 |
| Cooling | FAN cooling |
General
| Switch Time (EPS) | <10 ms |
|---|---|
| Rated output | 12 kW |
| Phases | Three phase |
| Hybrid | Hybrid |
| Inverter Dc Max | 22.5 |
| Inverter Mppt Vmin | 120 |
| Inverter Mppt Vmax | 950 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 20 |
| Inverter Battery Vmin | 100 |
| Inverter Battery Vmax | 800 |
| Inverter Ac Charge | 14.4 |
