Brand: Fox ESS
Product code: AEB-00221
Fox Junction Box for paralleling up to 4 EP Series Batteries

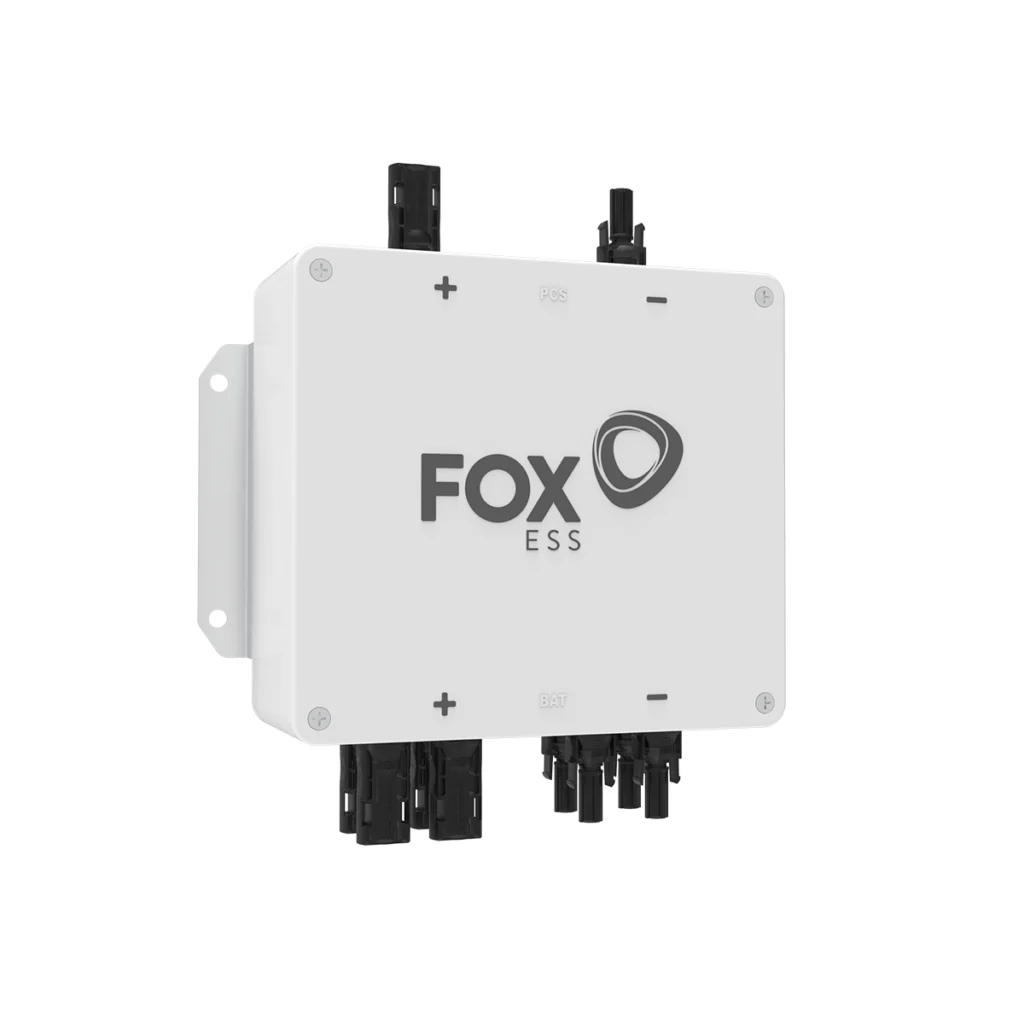

Fox ESS HV-Junction Box: combines up to 4 EP-series high-voltage batteries onto one hybrid inverter.
£178.00 inc. VAT
£148.33 exc. VAT
In stock
The Fox ESS HV-Junction Box lets up to four EP-series high-voltage battery modules (EP5, EP6, EP11, EP12 and their EK equivalents) be wired in parallel onto a single compatible hybrid inverter, including the K, H1(G2), H3, H3 Smart, H3 Pro and US series. It takes four battery inputs and combines them to one load output rated at a continuous 50A and a 65A peak, at a nominal 500V. The wall-mounted enclosure is IP65-rated for indoor or outdoor installation, weighs 2.6kg and is supplied as a straightforward way to scale an EP-series battery system beyond what a single inverter's battery input would otherwise support.
Specifications
Electrical
| Nominal Voltage | 500 V |
|---|---|
| Max. Continuous Current | 50 A |
| Peak Current | 65 @60S A |
General
| System Parallel Description | Supports 4 battery inputs and 1 load output |
|---|---|
| Compatible Battery | EP5/EP6, EP11/EP12, EK5/EK6, EK11/EK12 |
| Compatible PCS | K, H1(G2), H3, H3 SMART, H3 PRO, US Series |
Mechanical
| Dimensions (W x H x D) | 223 x 246 x 89 mm |
|---|---|
| Ingress Protection | IP65 |
| Operating Temperature | -20 ~ 70 °C |
Documents and datasheets
Datasheets
HV-Junction Box (4-way Battery) — Datasheet
PDF · 460 kB
