Brand: Growatt
Product code: AEI-00714

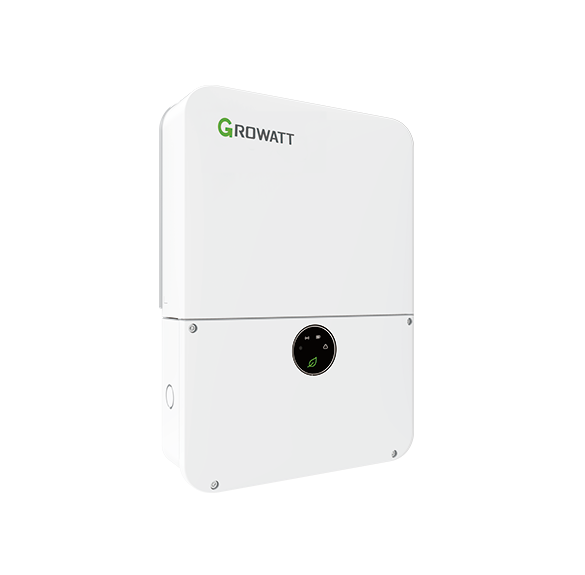

GROWATT MIN 2500TL XH2 Dual MPPT with DC
- 5
- 40
- 490
- 500
- 16
- 1
Single-phase 2.5kW battery-ready inverter, XH2 generation, dual MPPT, 98.2% efficiency.
£452.34 inc. VAT
£376.95 exc. VAT
Out of stock
The Growatt MIN 2500TL-XH2 is a single-phase, transformerless inverter for residential solar, accepting up to 5kW of PV across two independent MPP trackers rated at 16A each. It reaches a maximum efficiency of 98.2% (97.1% European weighted) over a DC input range of 40-490V. The battery interface is compatible with Growatt's ARK XH and APX HV battery systems, allowing storage to be added later without extra hardware, and backup output is supported. The enclosure is rated IP66 and uses natural convection cooling, weighs 10.8kg and measures 375 x 350 x 160mm. Type II DC surge protection is included as standard, with AFCI active arc-fault protection available as an option.
Specifications
Electrical
| AC Nominal Power | 2500 W |
|---|---|
| Max Recommended PV Power | 5000 W |
| Max Output Apparent Power | 2500 VA |
| Max Output Current | 11.3 A |
| Max DC Voltage | 500 V |
| Start Voltage | 50 V |
| Nominal DC Voltage | 360 V |
| Max Input Current per MPPT | 16 A |
| Max Short-circuit Current per MPPT | 24 A |
| Power Factor | 0.8 leading to 0.8 lagging (adjustable) |
| THDi | <3% |
Battery
| Max Backup Apparent Power | 2500 VA |
|---|
Performance
| Max Efficiency | 98.2% |
|---|---|
| European Efficiency | 97.1% |
| MPPT Efficiency | 99.9% |
Physical
| Dimensions | 375 x 350 x 160 mm |
|---|---|
| Weight | 10.8 kg |
| Topology | Transformerless |
| Cooling | Natural convection |
Environmental
| Operating Temperature Range | -30 to 60 °C |
|---|---|
| Maximum Altitude | 4000 m |
Safety
| Ingress Protection Rating | IP66 |
|---|---|
| Nighttime Power Consumption | <3 W |
| AFCI Protection | Optional |
General
| Inverter Dc Max | 5 |
|---|---|
| Inverter Mppt Vmin | 40 |
| Inverter Mppt Vmax | 490 |
| Inverter Dc Vmax | 500 |
| Inverter Mppt Imax | 16 |
| Inverter Strings Per Mppt | 1 |
Documents and datasheets
Datasheets
MIN 2500TL-XH2 — Datasheet
PDF · 1.1 MB
