Brand: Growatt
Product code: AEI-00715

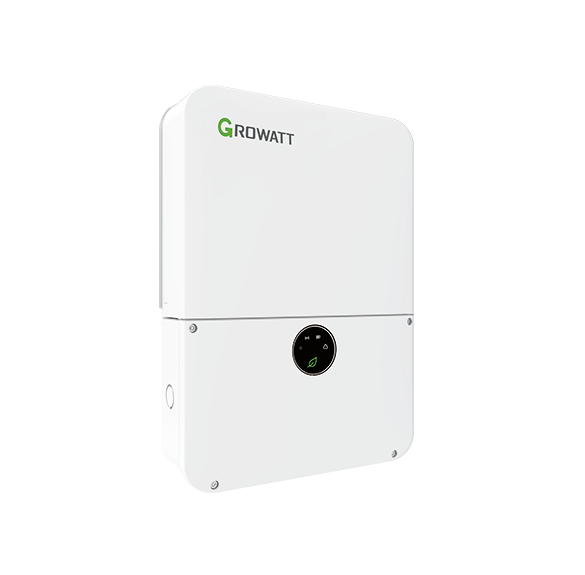

GROWATT MIN 3000TL XH Dual MPPT with DC
- 4.2
- 80
- 500
- 500
- 12.5
- 1
Single-phase 3kW battery-ready inverter with dual MPPT and 98.2% efficiency.
£491.33 inc. VAT
£409.44 exc. VAT
Out of stock
The Growatt MIN 3000TL-XH is a single-phase, transformerless inverter for residential solar installations, with a maximum recommended PV array size of 4.2kW split across two independent MPP trackers. It reaches a maximum efficiency of 98.2% (97.1% European weighted) over a DC input range of 80-500V. The battery-ready design accepts a storage system over a 350-480V DC range without extra hardware, and backup power is supported via an Automatic Switch Box accessory. Natural convection cooling keeps the unit low-maintenance, and it is rated IP65 for outdoor mounting. The compact 375 x 350 x 160mm enclosure weighs 10.8kg, and optional AFCI protection is available alongside the standard DC reverse-polarity and anti-islanding protections.
Specifications
Electrical
| AC Nominal Power | 3000 W |
|---|---|
| Max Recommended PV Power | 4200 W |
| Max Output Apparent Power | 3000 VA |
| Max Output Current | 13.6 A |
| Max DC Voltage | 500 V |
| Start Voltage | 100 V |
| Nominal DC Voltage | 360 V |
| Max Input Current per MPPT | 12.5 A |
| Max Short-circuit Current per MPPT | 16 A |
| Power Factor | 0.8 leading to 0.8 lagging (adjustable) |
| THDi | <3% |
Battery
| DC Operating Voltage Range (Storage) | 350 to 480 V |
|---|---|
| Max Operation Current (Storage) | 10 A |
| Max Discharge Power | 3000 W |
| Backup Power | Yes (via Automatic Switch Box) |
Performance
| Max Efficiency | 98.2% |
|---|---|
| European Efficiency | 97.1% |
| MPPT Efficiency | 99.9% |
Physical
| Dimensions | 375 x 350 x 160 mm |
|---|---|
| Weight | 10.8 kg |
| Topology | Transformerless |
| Cooling | Natural convection |
| Noise Emission (typical) | 35 dB(A) |
Environmental
| Operating Temperature Range | -25 to 60 °C |
|---|---|
| Maximum Altitude | 4000 m |
Safety
| Ingress Protection Rating | IP65 |
|---|---|
| Nighttime Power Consumption | <1 W |
| AFCI Protection | Optional |
General
| Inverter Dc Max | 4.2 |
|---|---|
| Inverter Mppt Vmin | 80 |
| Inverter Mppt Vmax | 500 |
| Inverter Dc Vmax | 500 |
| Inverter Mppt Imax | 12.5 |
| Inverter Strings Per Mppt | 1 |
| Inverter Battery Vmin | 350 |
| Inverter Battery Vmax | 480 |
Documents and datasheets
Datasheets
MIN 3000TL-XH — Datasheet
PDF · 713 kB
