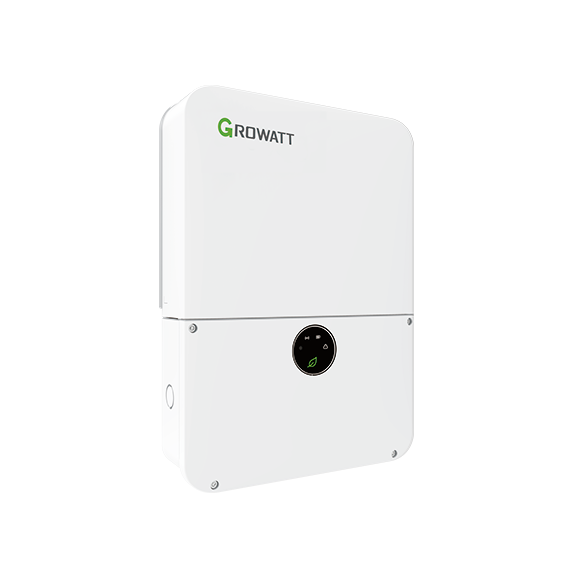

GROWATT MIN 3600TL XH Dual MPPT with DC

5.04
80
550
550
12.5

Single-phase 3.6kW battery-ready inverter with dual MPPT and 98.2% efficiency.

£490.03 inc. VAT

£408.36 exc. VAT

In stock

The Growatt MIN 3600TL-XH is a single-phase, transformerless inverter for residential solar installations, with a maximum recommended PV array size of 5.04kW split across two independent MPP trackers. It reaches a maximum efficiency of 98.2% (97.2% European weighted) over a DC input range of 80-550V. The battery-ready design allows future storage to be added via the built-in battery interface without extra hardware. Natural convection cooling keeps the unit low-maintenance, and it is rated IP65 for outdoor mounting. Built-in AFCI protection and Type II surge protection on the DC side are included as standard, and the compact 375 x 350 x 160mm enclosure weighs 10.8kg.

Specifications

Electrical

AC Nominal Power	3600 W
Max Recommended PV Power	5040 W
Max Output Apparent Power	3600 VA
Max Output Current	16 A
Max DC Voltage	550 V
Start Voltage	100 V
Nominal Voltage	360 V
Strings per MPPT	1
Max Input Current per MPPT	12.5 A
Max Short-circuit Current per MPPT	16 A
Power Factor	0.8 leading to 0.8 lagging (adjustable)
THD	<3%

Performance

Max Efficiency	98.2%
European Efficiency	97.2%
MPPT Efficiency	99.9%

Battery

Max Discharge Power	3600 W

Physical

Dimensions	375 x 350 x 160 mm
Weight	10.8 kg
Topology	Transformerless
Cooling	Natural convection

Environmental

Operating Temperature Range	-25 to 60 °C
Humidity	0 to 100 (No condensation)%
Maximum Altitude	4000 m

Safety

Ingress Protection Rating	IP65
Nighttime Power Consumption	<3 W
Type II SPD	Yes (DC side)
AFCI Protection	Yes

General

Inverter Dc Max	5.04
Inverter Mppt Vmin	80
Inverter Mppt Vmax	550
Inverter Dc Vmax	550
Inverter Mppt Imax	12.5

Documents and datasheets

Datasheets

MIN 3600TL-XH — Datasheet
PDF · 713 kB
Download
