GROWATT MIN 4200TL X Dual MPPT with DC

5.88
80
550
550
13.5
1

Single-phase 4.2kW non-hybrid string inverter with dual MPPT and 98.4% efficiency.

£552.99 inc. VAT

£460.83 exc. VAT

Out of stock

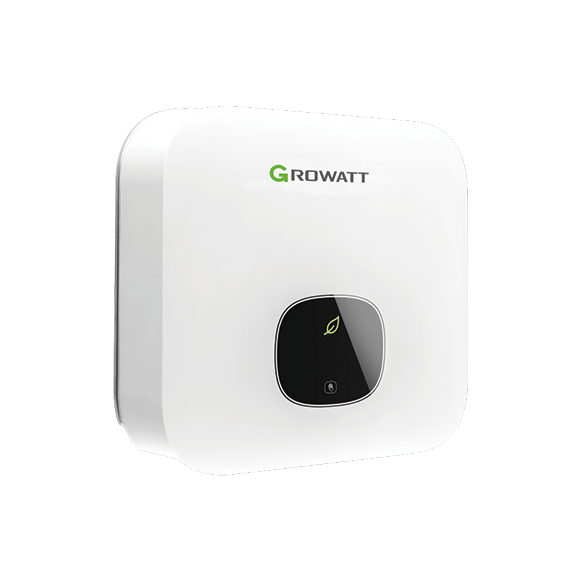

The Growatt MIN 4200TL-X is a single-phase, transformerless string inverter for residential solar installations, accepting up to 5.88kW of PV split across two independent MPP trackers. It reaches a maximum efficiency of 98.4% (97.5% European weighted) over a DC input range of 80-550V, with AC output of up to 4200W. This is a grid-tie-only model with no battery interface. Natural convection cooling keeps the unit low-maintenance, and it is rated IP65 for outdoor mounting. Type II DC-side surge protection and optional AFCI protection are available, and the enclosure measures 375 x 350 x 160mm and weighs 10.8kg.

Specifications

Electrical

AC Nominal Power	4200 W
Max Recommended PV Power	5880 W
Max Output Apparent Power	4200 VA
Max Output Current	19 A
Max DC Voltage	550 V
Start Voltage	100 V
Nominal DC Voltage	360 V
Max Input Current per MPPT	13.5 A
Max Short-circuit Current per MPPT	16.9 A
Power Factor	0.8 leading to 0.8 lagging (adjustable)
THDi	<3%

Performance

Max Efficiency	98.4%
European Efficiency	97.5%
MPPT Efficiency	99.9%

Physical

Dimensions	375 x 350 x 160 mm
Weight	10.8 kg
Topology	Transformerless
Cooling	Natural convection
Noise Emission (typical)	35 dB(A)

Environmental

Operating Temperature Range	-25 to 60 °C
Maximum Altitude	4000 m

Safety

Ingress Protection Rating	IP65
Nighttime Power Consumption	<1 W
AFCI Protection	Optional

General

Inverter Dc Max	5.88
Inverter Mppt Vmin	80
Inverter Mppt Vmax	550
Inverter Dc Vmax	550
Inverter Mppt Imax	13.5
Inverter Strings Per Mppt	1

Documents and datasheets

Datasheets

MIN 4200TL-X — Datasheet
PDF · 1.3 MB
Download
