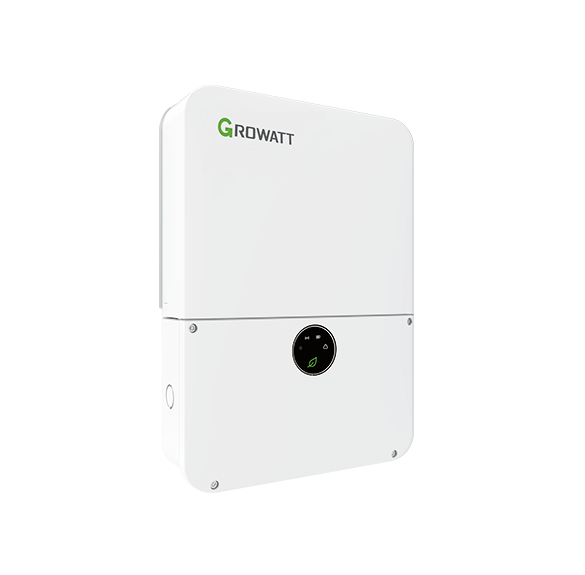

GROWATT MIN 6000TL XH2 Dual MPPT with DC

11.6
40
550
600
16

Single-phase 6kW battery-ready inverter, XH2 generation, dual MPPT, 98.4% efficiency.

£700.90 inc. VAT

£584.08 exc. VAT

In stock

The Growatt MIN 6000TL-XH2 is the largest single-phase model in the XH2 range, accepting up to 11.6kW of PV across two independent MPP trackers rated at 16A each. It reaches a maximum efficiency of 98.4% (97.5% European weighted) over a DC input range of 40-550V, with a maximum DC voltage of 600V. The battery interface is compatible with Growatt's ARK XH and APX HV battery systems, allowing storage to be added later without extra hardware. The enclosure is rated IP66 and uses natural convection cooling, weighs 10.8kg and measures 375 x 350 x 160mm. Built-in AFCI protection and Type II DC surge protection are included as standard.

Specifications

Electrical

AC Nominal Power	6000 W
Max Recommended PV Power	11600 W
Max Output Apparent Power	6000 VA
Max Output Current	27.2 A
Max DC Voltage	550 V
Start Voltage	50 V
Nominal Voltage	360 V
Strings per MPPT	1
Max Input Current per MPPT	16 A
Max Short-circuit Current per MPPT	24 A
Power Factor	0.8 leading to 0.8 lagging (adjustable)
THD	<3%

Performance

Max Efficiency	98.4%
European Efficiency	97.5%
MPPT Efficiency	99.9%

Battery

Max Discharge Power	6000 W
Compatible Battery	ARK XH Battery, APX HV Battery

Physical

Dimensions	375 x 350 x 160 mm
Weight	10.8 kg
Topology	Transformerless
Cooling	Natural convection

Environmental

Operating Temperature Range	-25 to 60 °C
Humidity	0 to 100 (No condensation)%
Maximum Altitude	4000 m

Safety

Ingress Protection Rating	IP66
Nighttime Power Consumption	<3 W
Type II SPD	Yes (DC side)
AFCI Protection	Yes

General

Inverter Dc Max	11.6
Inverter Mppt Vmin	40
Inverter Mppt Vmax	550
Inverter Dc Vmax	600
Inverter Mppt Imax	16

Documents and datasheets

Datasheets

MIN 6000TL-XH2 — Datasheet
PDF · 1.1 MB
Download
