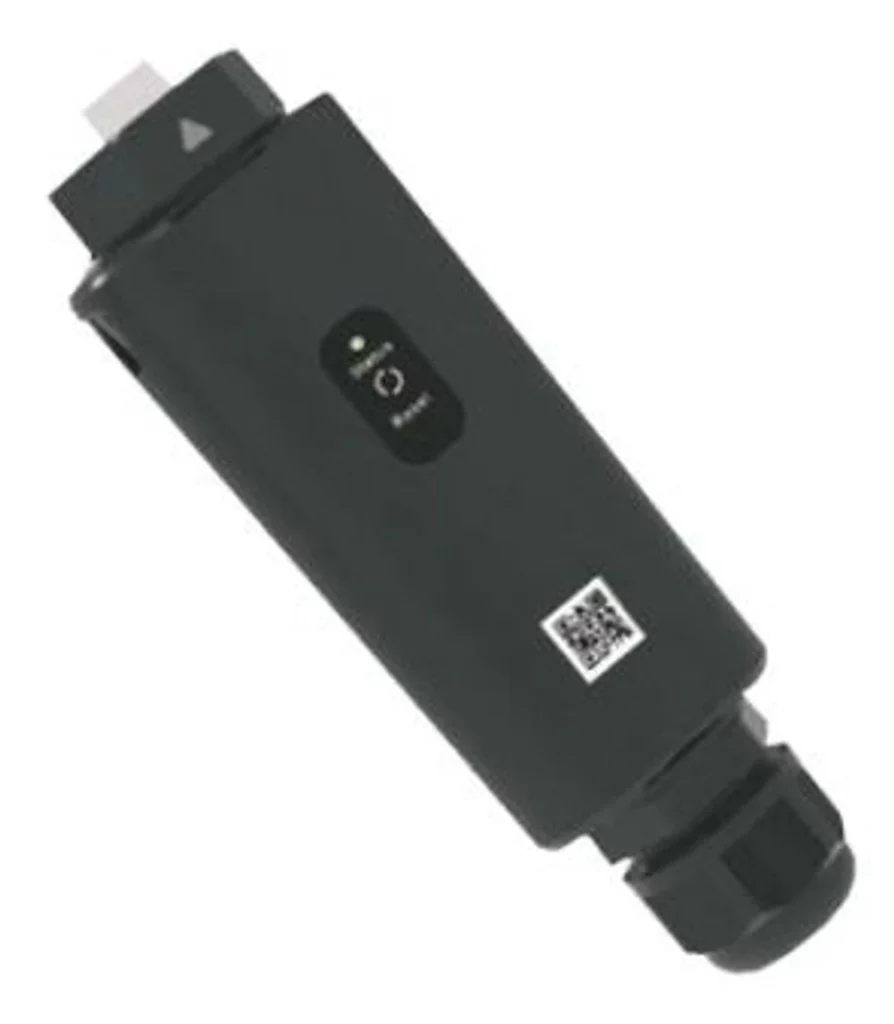

Growatt ShineWiLan-X2, Intergrated WiFi, LAN and Bluetooth Monitoring Device

The ShineWiLan-X2 is a plug-in datalogger that gives a Growatt inverter WiFi, wired LAN and Bluetooth connectivity in a single IP65-rated module, for remote monitoring through Growatt's ShineServer platform. It communicates with the inverter over Modbus RTU and uploads data to the server via MQTT every five minutes, storing up to a month of readings locally if the connection drops. Configuration is done through the Growatt app over Bluetooth, and firmware can be upgraded locally without removing the unit. Measuring only 47 x 152 x 28mm and weighing 94g, it is compatible with Growatt's X, XE, XH, MIN, TL3-LV and SPH-UP inverter series. Suits installations that need wired network reliability with WiFi and Bluetooth as fallback options, or where inverter and router are within Cat5e cabling distance.
