Brand: GSE
Product code: AEM-01050

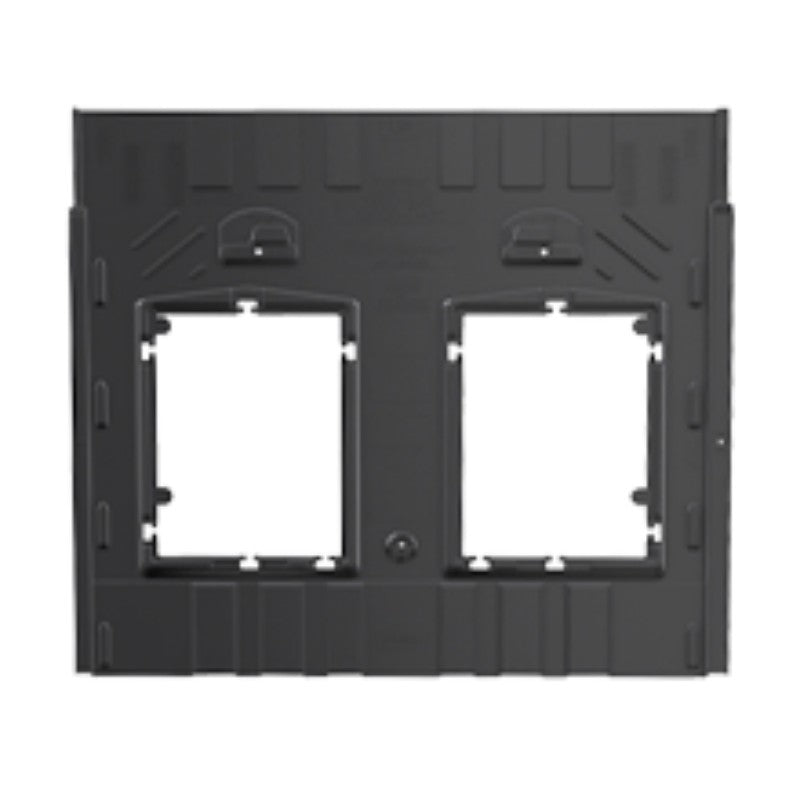

GSE Frame Portrait DPO - 1650/1135
- 1135
- 1650
- curved tiles, interlocking, flat tiles, slates, metal, zinc, trapezoidal
GSE portrait half-frame for in-roof mounting. 1650 × 1135 mm. Supports 1610–1800 mm modules.
£32.30 inc. VAT
£26.92 exc. VAT
In stock
The GSE Frame Portrait DPO 1650/1135 is a half-frame mounting plate for in-roof solar installations. Supplied as a pair (two frames per module), it accommodates portrait-orientation modules measuring 1610 to 1800 mm in length and 1131 to 1135 mm in width. The frame integrates seamlessly with the GSE In-Roof System, enabling installation on all roof types including curved and interlocking tiles, flat tiles, slates, metal, zinc and trapezoidal coverings. Suitable for roof slopes between 12 and 50 degrees, the system works on both new buildings and retrofit installations.
Specifications
Mounting
| Frame type | Portrait DPO half-frame (2 per module) |
|---|
Dimensions
| Frame dimensions | 1650 × 1135 mm (half-frame) |
|---|
Compatibility
| Compatible module length | 1570–1800 mm (recommended 1610 mm) |
|---|---|
| Compatible module width | 1131–1135 mm |
Installation
| Roof slope range | 12–50° |
|---|
Roof types
| Compatible roof coverings | All types: curved tiles, interlocking tiles, flat tiles, slates, metal, zinc, trapezoidal |
|---|---|
| Building types | New buildings and retrofit installations |
General
| Mounting Frame Height | 1135 |
|---|---|
| Mounting Frame Length | 1650 |
| Mounting Roof Kinds | curved tiles, interlocking, flat tiles, slates, metal, zinc, trapezoidal |
Documents and datasheets
Datasheets
GSE Frame Portrait DPO 1650/1135 — Datasheet
PDF · 7.4 MB
