Brand: Fox ESS
Product code: AEB-01825

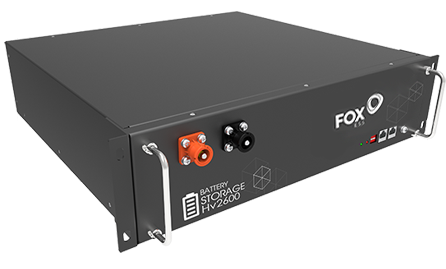

HV2600 2.6kWh HV Battery V1
- LiFePO4
- 102.4
- 2.56
- 1
- 8
Fox ESS HV2600-V1 2.56kWh LiFePO4 battery module, scalable to 20.48kWh.
£939.44 inc. VAT
£782.87 exc. VAT
Out of stock
The HV2600-V1 is a single high-voltage LiFePO4 battery module from Fox ESS delivering 2.56kWh of usable storage at 102.4V nominal voltage. It features 90% depth of discharge, 95% round-trip efficiency and supports up to 8 modules in series for maximum system capacity of 20.48kWh. Each module weighs 29.7kg and is rated for over 6,000 cycles at 90% DoD. Communication is via CAN or RS485, making it suitable for integration into hybrid inverter systems. Operating range spans -10 to +50°C for discharge, with natural convection cooling.
Specifications
Electrical
| Nominal Capacity (Single Module) | 2.56 kWh |
|---|---|
| Nominal Voltage | 102.4 V |
| Operating Voltage Range | 80 ~ 116.8 V |
| Max. Charge/Discharge Current | 50 A |
| Peak Discharge Current (30s) | 65 A |
| Depth of Discharge | 90% |
| Round-Trip Efficiency | >95% |
| Cycle Life (@90% DoD) | ≥6000 cycles |
| Communication | CAN, RS485 |
| Maximum Modules in Series | 8 |
Mechanical
| Dimensions | 420 x 116 x 480 mm |
|---|---|
| Weight | 29.7±1 kg |
Environmental
| Charge Temperature Range | 0 ~ 50 °C |
|---|---|
| Discharge Temperature Range | -10 ~ 50 °C |
| Ingress Protection | IP21 |
General
| Battery Chemistry | LiFePO4 |
|---|---|
| Battery Nominal | 102.4 |
| Battery Usable | 2.56 |
| Battery Modules Min | 1 |
| Battery Modules Max | 8 |
Documents and datasheets
Datasheets
HV2600 2.56kWh V1 — Datasheet
PDF · 466 kB
