Brand: Intatec
Product code: AEA-00045

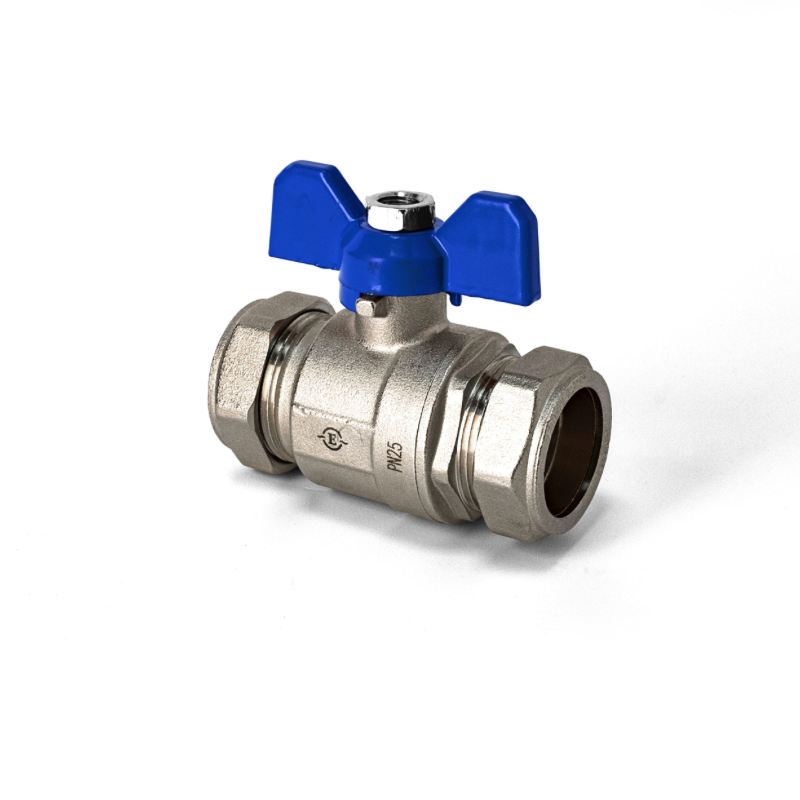

Intatec 28mm Butterfly Ball Valve with Red & Blue Handle
Intatec TR28BBV 28mm full bore compression ball valve with butterfly handle.
£13.38 inc. VAT
£11.15 exc. VAT
In stock
The Intatec TR28BBV is a 28mm full-bore butterfly ball valve with compression fittings at each end, for isolating or balancing pipework in heating and renewable energy installations. It has an overall length of 82.5mm, with further body dimensions of 65.5mm and 52mm, and is fitted with colour-coded red and blue butterfly handles for quarter-turn shut-off. It is rated to a maximum operating pressure of 25 bar and a maximum inlet temperature of 110°C, and is WRAS approved for use on hot and cold water systems.
Specifications
Physical
| Connection size | 28 mm |
|---|---|
| Dimension B (overall length) | 82.5 mm |
| Dimension C | 65.5 mm |
| Dimension D | 52 mm |
| Connection type | Compression fittings |
| Valve type | Full bore butterfly ball valve |
Pressure
| Max Operating Pressure | 25 Bar |
|---|
Temperature
| Maximum Inlet Temperature | 110 degrees |
|---|
Features
| Handle type | Butterfly handles (red and blue supplied) |
|---|
Documents and datasheets
Datasheets
Butterfly Ball Valve 28mm — Datasheet
PDF · 179 kB
