K2 Roof Fastener - Roof hook- for Pan Tiles

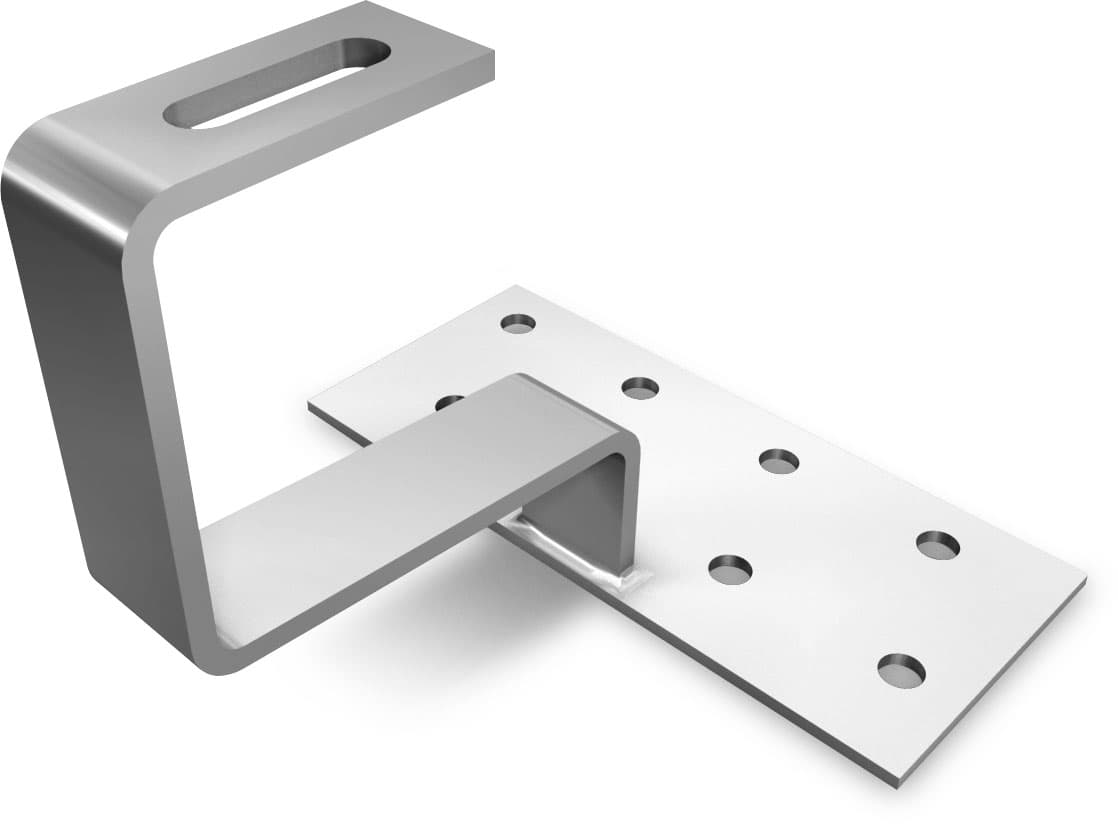

The K2 roof hook for pan tile roofs is a Z-shaped bracket for fixing K2 mounting rail to pitched roofs finished in pantiles. A slotted hole in the bracket takes a hammerhead screw and M10 nut, letting the rail position be adjusted along the hook before final tightening. The base plate measures 180 x 80 x 4mm, giving a height under bracket of 38mm, a bracket height of 69mm, a total height of 124mm and a bracket depth of 91mm. It is made from stainless steel 1.4016 for outdoor corrosion resistance. It is supplied in packs of 25 for use with K2's SolidRail and InsertionRail pitched-roof mounting systems, and is listed in K2's roof hook compatibility matrix for clay and concrete pantile roofs.
