Brand: SolaX
Product code: AEI-00787

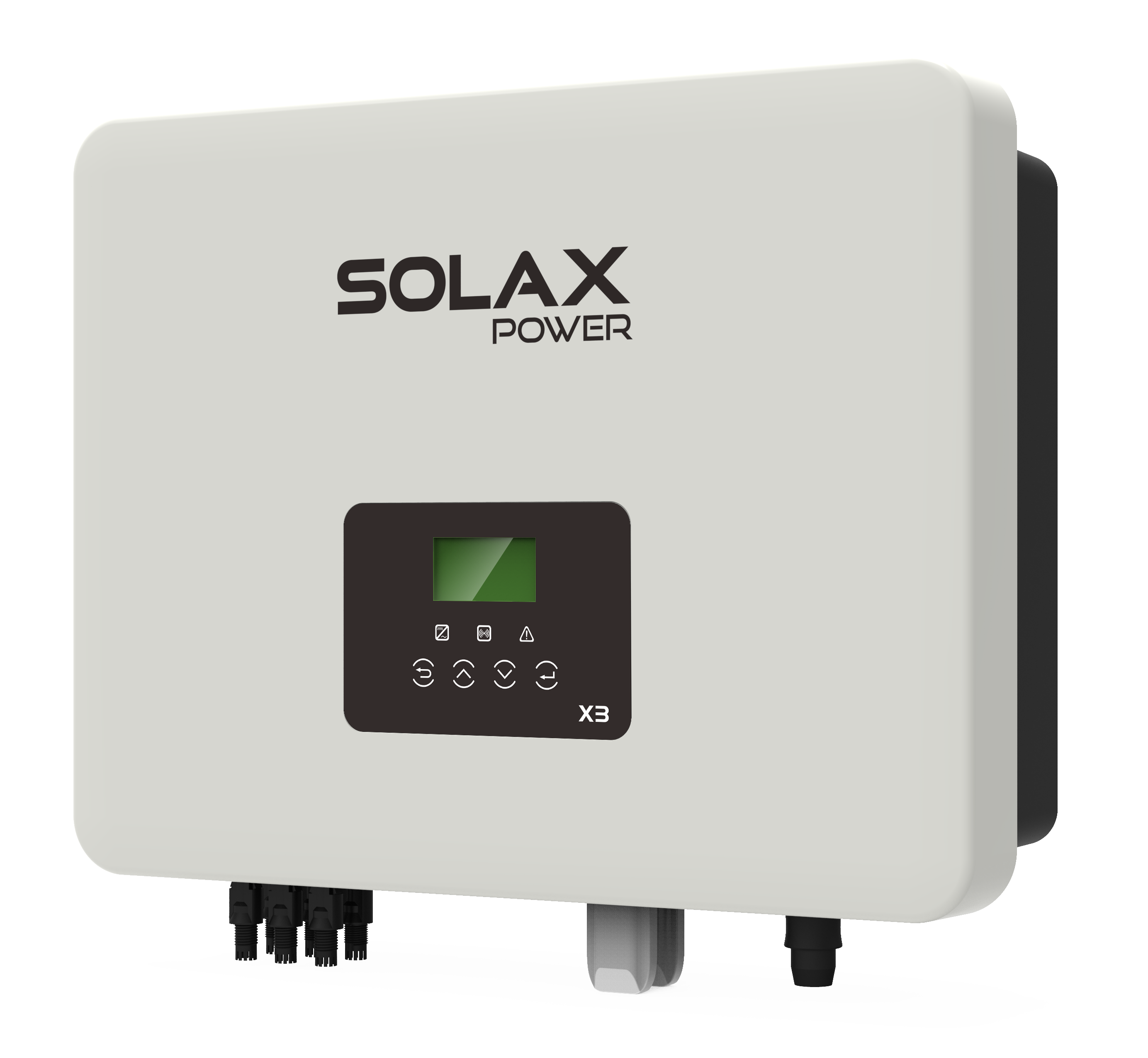

NSP - SolaX X3 Pro 3 Phase Inverter 25kW G2
- 25 kW
- Three phase
- 37.5
- 160
- 980
- 1100
SolaX X3-PRO G2 25kW three-phase commercial on-grid string inverter with 3 MPPTs and up to 98% efficiency.
£1,573.49 inc. VAT
£1,311.24 exc. VAT
Out of stock
The SolaX X3-PRO G2 is a three-phase, grid-tied solar inverter for larger residential and light commercial installations. The 25kW model accepts up to 37.5kWp of PV across 3 MPP trackers (2 strings each) with a wide 160-980V MPPT range and up to 32A per tracker, and delivers 25kW rated output at 37.9A, up to 27.5kVA maximum. It includes 24-hour WiFi/LAN/4G monitoring, smart loads management for devices such as heat pumps and EV chargers, and built-in export power control. The inverter is IP66 rated for outdoor installation and operates across a -30 to 60°C ambient range.
Specifications
PV Input
| Max. recommended PV array power | 37.5 kWp |
|---|---|
| Operation voltage range | 135-985 V |
AC Output
| Rated output power | 25 kW |
|---|---|
| Rated output current | 37.9 A |
| Max. output apparent power | 27.5 kVA |
| Max. output continuous current | 41.8 A |
Environment
| Operation temperature range | -30 to 60 °C |
|---|
Protection
| Ingress protection | IP66 |
|---|
General
| Rated output | 25 kW |
|---|---|
| Phases | Three phase |
| Inverter Dc Max | 37.5 |
| Inverter Mppt Vmin | 160 |
| Inverter Mppt Vmax | 980 |
| Inverter Dc Vmax | 1100 |
| Inverter Mppt Imax | 32 |
Documents and datasheets
Datasheets
SolaX X3-PRO G2 25kW — Datasheet
PDF · 751 kB
