Brand: Pylontech
Product code: AEB-00313

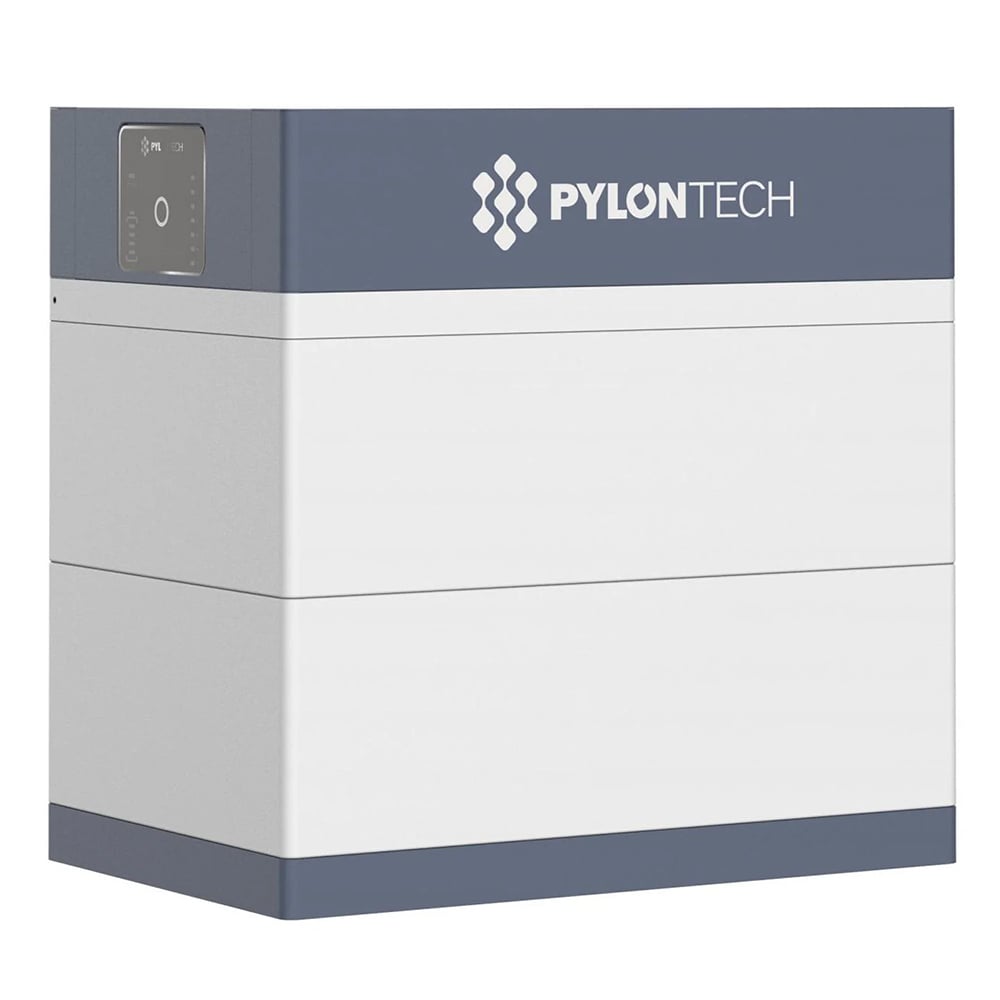

Pylon Force-H3 High Voltage System stack of 2 incl. BMU (10.2 kWh)
- 204.8
- 9.69
- LiFePO4
Force-H3 high-voltage battery tower: 2 modules, 10.24kWh nominal (9.69kWh usable) at 204.8V, with FC1000 control module.
£2,548.99 inc. VAT
£2,124.16 exc. VAT
In stock
This is a Pylontech Force-H3 high-voltage battery system built from 2 FH10050 modules stacked under one FC1000 control module, giving 10.24kWh nominal capacity (9.69kWh usable at 95% depth of discharge) at 204.8V nominal system voltage. The stack measures 540 x 350 x 530mm and weighs 92kg, communicates over Modbus RTU or CAN, and is rated IP55 for indoor or sheltered installation. Charge/discharge current is 50A continuous, rising to 55A for up to 15 minutes. Up to six Force-H3 strings can be combined in parallel with a P-Combiner box for larger systems; this listing is a single string.
Specifications
Battery
| Nominal Capacity | 10.24 kWh |
|---|---|
| Depth of Discharge | 95% |
| Charge/Discharge Current (Normal) | 50 A |
| Charge/Discharge Current (Max, 15min) | 55 A |
| Design Life | 15+ years |
| Cycle Life | >8,000 cycles |
| IP Rating | IP55 |
Mechanical
| Height | 530 mm |
|---|
General
| Battery Nominal | 204.8 |
|---|---|
| Battery Usable | 9.69 |
| Battery Chemistry | LiFePO4 |
Documents and datasheets
Datasheets
Force-H3 High-Voltage Battery System, 2-Module Stack, 10.24kWh with FC1000 BMU — Datasheet
PDF · 877 kB
