Brand: Pylontech
Product code: AEB-00316

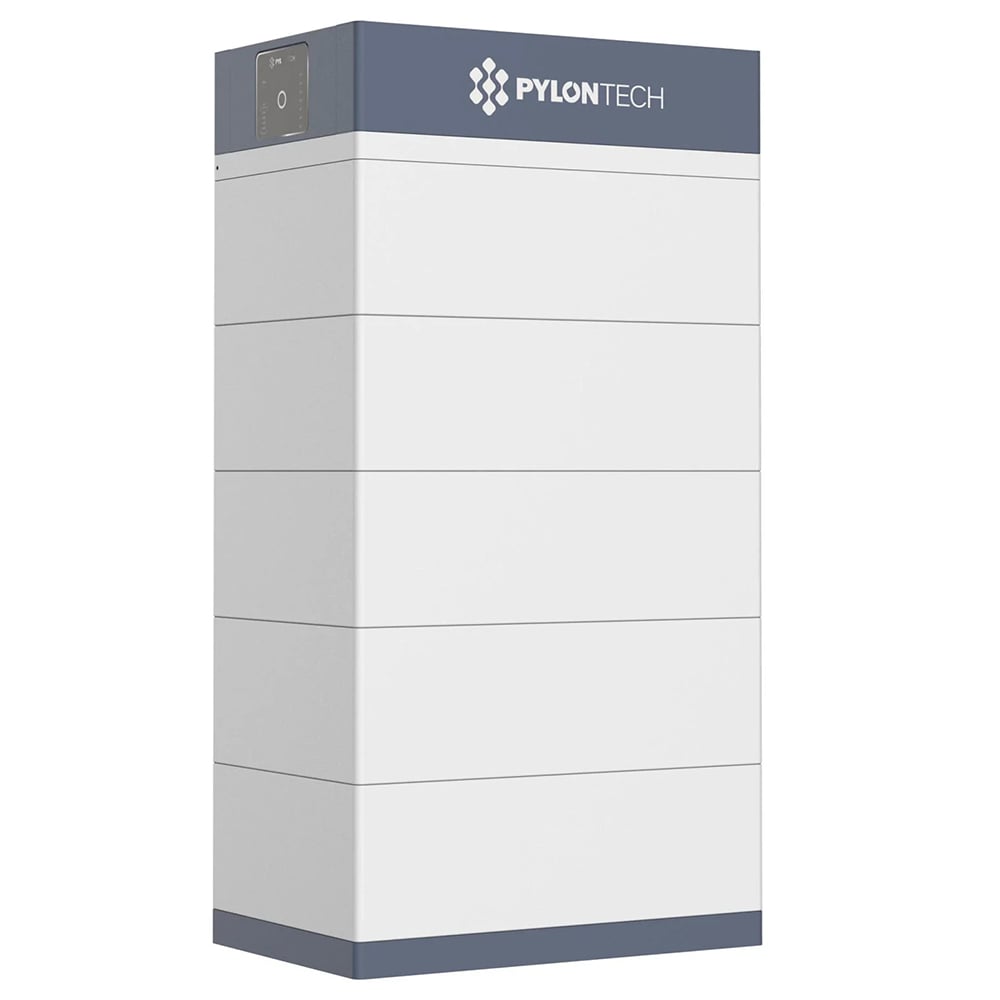

Pylon Force-H3 High Voltage System stack of 5 incl. BMU (25.6 kWh)
- 512
- 24.32
- LiFePO4
Force-H3 high-voltage battery tower: 5 modules, 25.6kWh nominal (24.32kWh usable) at 512V, with FC1000 control module.
£5,490.05 inc. VAT
£4,575.04 exc. VAT
In stock
This is a Pylontech Force-H3 high-voltage battery system built from 5 FH10050 modules stacked under one FC1000 control module, giving 25.6kWh nominal capacity (24.32kWh usable at 95% depth of discharge) at 512V nominal system voltage. The stack measures 540 x 350 x 1040mm and weighs 209kg, communicates over Modbus RTU or CAN, and is rated IP55 for indoor or sheltered installation. Charge/discharge current is 50A continuous, rising to 55A for up to 15 minutes. Up to six Force-H3 strings can be combined in parallel with a P-Combiner box for larger systems; this listing is a single string.
Specifications
Battery
| Nominal Capacity | 25.6 kWh |
|---|---|
| Depth of Discharge | 95% |
| Charge/Discharge Current (Normal) | 50 A |
| Charge/Discharge Current (Max, 15min) | 55 A |
| Design Life | 15+ years |
| Cycle Life | >8,000 cycles |
| IP Rating | IP55 |
Mechanical
| Height | 1040 mm |
|---|
General
| Battery Nominal | 512 |
|---|---|
| Battery Usable | 24.32 |
| Battery Chemistry | LiFePO4 |
Documents and datasheets
Datasheets
Force-H3 High-Voltage Battery System, 5-Module Stack, 25.6kWh with FC1000 BMU — Datasheet
PDF · 877 kB
