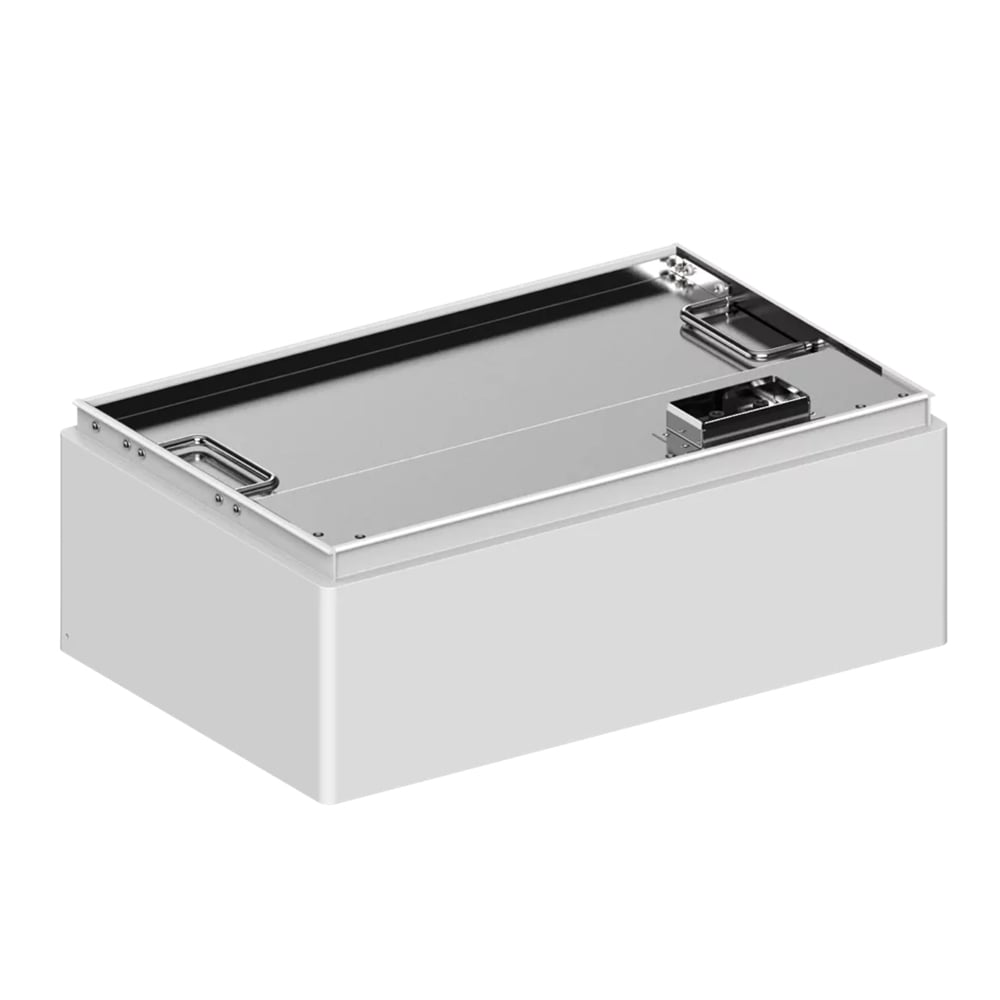

Pylon Force-H3 High Voltage System stack of 7 incl. BMU (35.8 kWh)

This high-voltage battery system stacks seven FH10050 modules to provide 716.8V nominal system voltage and 35.84kWh nominal capacity, with 34.01kWh usable at 95% depth of discharge. The LiFePO4 chemistry supports a normal charge/discharge current of 50A, rising to 55A for up to 15 minutes. An integrated battery management unit monitors cell balancing and system health across the stack, communicating over Modbus RTU or CAN. The enclosure carries an IP55 rating for indoor or sheltered outdoor installation, with a design life of over 15 years and a cycle life exceeding 8000 cycles at 25°C. Multiple stacks can be connected in parallel for larger commercial installations. Suited to high-voltage hybrid inverters that support this voltage range, this system is intended for commercial and light industrial self-consumption, peak shaving and backup applications.
