Brand: Solis
Product code: AEB-00436
S6 10kW 3PH Hybrid Inverter (incl. 3PH meter) UK
- 10 kW
- Three phase
- Hybrid
- 1
- 200
- 850

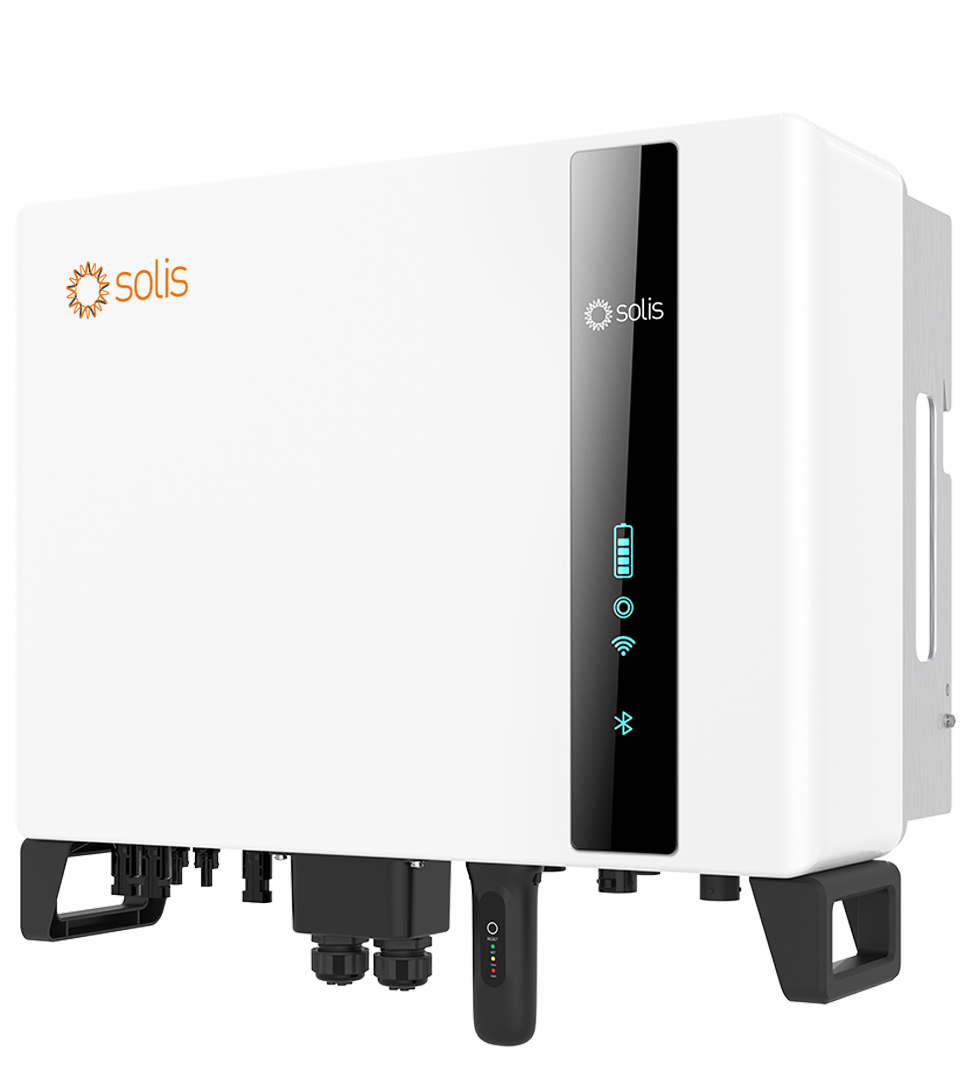

Solis S6-EH3P10K-H-EU 10kW three-phase high-voltage hybrid inverter, bundled with a 3-phase meter, UK-labelled SKU.
£1,546.18 inc. VAT
£1,288.48 exc. VAT
Out of stock
The Solis S6-EH3P10K-H-EU is a three-phase, high-voltage hybrid inverter rated at 10kW, taking a recommended PV array of up to 20kW across 4 MPPT inputs (200-850V range, 16A max per input). It pairs with a 120-600V battery (up to 700V maximum), with charge/discharge power up to 10kW (50A), and switches to backup power in under 10ms, with each output phase able to carry up to 50% of rated power independently. Maximum efficiency is 97.90%, with 97.51% EU weighted efficiency. Measuring 600 x 500 x 230mm and weighing 30.2kg, it is IP66-rated for -25°C to +60°C operation, with an LED status display, Bluetooth and app setup, and RS485/CAN communication (Wi-Fi, cellular and LAN optional). This listing is bundled with a 3-phase meter, UK-labelled SKU.
Specifications
Electrical
| Recommended max. PV array size | 20 kW |
|---|---|
| Max. usable PV input power | 16 kW |
| Start-up voltage | 160 V |
| Max. short circuit current (per MPPT) | 24 A |
| Rated output power | 10 kW |
| Max. apparent output power | 10 kVA |
| Rated grid voltage | 380 / 400 V (3/N/PE) |
| Rated grid output current | 15.2 / 14.4 A |
| Power factor | > 0.99 (0.8 leading to 0.8 lagging) cos(φ) |
| THDi | < 3% |
| Max. efficiency | 97.90% |
| EU efficiency | 97.51% |
| Back-up switch time | < 10 ms |
Battery
| Max. battery voltage (footnote) | 700 V |
|---|---|
| Max. charge / discharge power | 10 kW |
| Max. charge / discharge current | 50 A |
Physical
| Dimensions | 600 x 500 x 230 mm (W x H x D) |
|---|
Environmental
| Operating temperature range | -25 to +60 °C |
|---|---|
| Ingress protection | IP66 |
| Max. operation altitude | 4000 m |
General
| Rated output | 10 kW |
|---|---|
| Phases | Three phase |
| Hybrid | Hybrid |
| Inverter Strings Per Mppt | 1 |
| Inverter Mppt Vmin | 200 |
| Inverter Mppt Vmax | 850 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 16 |
| Inverter Battery Vmin | 120 |
| Inverter Battery Vmax | 600 |
Documents and datasheets
Datasheets
S6-EH3P10K-H-EU — Datasheet
PDF · 395 kB
