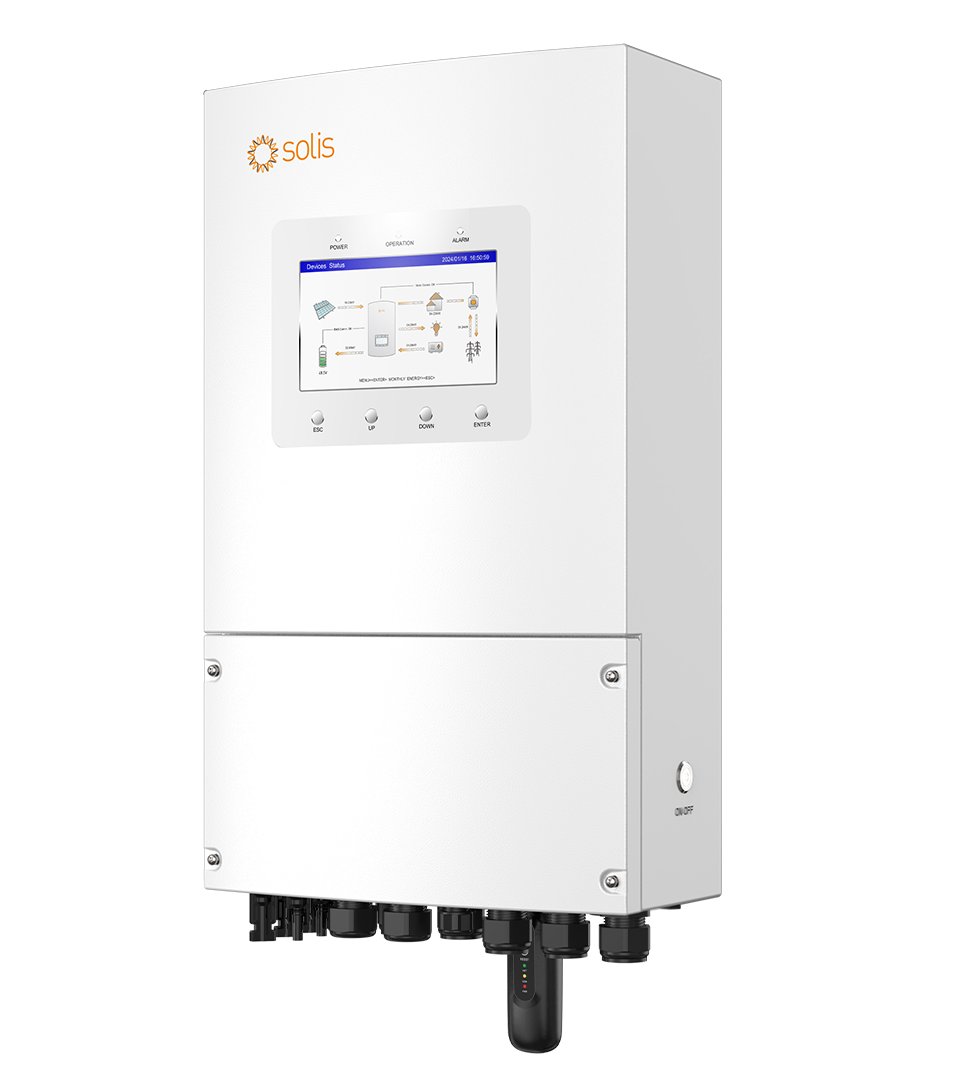

S6 3 kW Plus Single Phase Low Voltage Hybrid Inverter

The Solis S6-EH1P3K-L-PLUS is a single-phase, low-voltage hybrid inverter rated at 3kW, part of the S6-EH1P-L-PLUS Solarator series. It takes a recommended PV array of up to 6kW across 2 MPPT inputs (90-435V range, 16A max per input), and pairs with 40-60V lithium or lead-acid batteries for a charge/discharge current of up to 70A. Maximum efficiency is 96.2%, with 96.1% EU weighted efficiency, and the unit switches to backup power in under 10ms. Measuring 335 x 560 x 253mm and weighing 23kg, it is IP66-rated for -25°C to +60°C operation, with a 7-inch LCD display, Bluetooth and app setup, and RS485/CAN communication (Wi-Fi, GPRS and LAN optional). Suitable for residential and small commercial self-consumption, backup power and time-of-use optimisation.
