Brand: Solis
Product code: AEB-00440
S6 5kW 3PH Hybrid Inverter (incl. 3PH meter) UK
- 5 kW
- Three phase
- Hybrid
- 1
- 200
- 850
Solis S6-EH3P5K-H-EU 5kW three-phase high-voltage hybrid inverter; catalogue SKU carries a UK regional label on the same hardware.
£1,368.30 inc. VAT
£1,140.25 exc. VAT
Out of stock

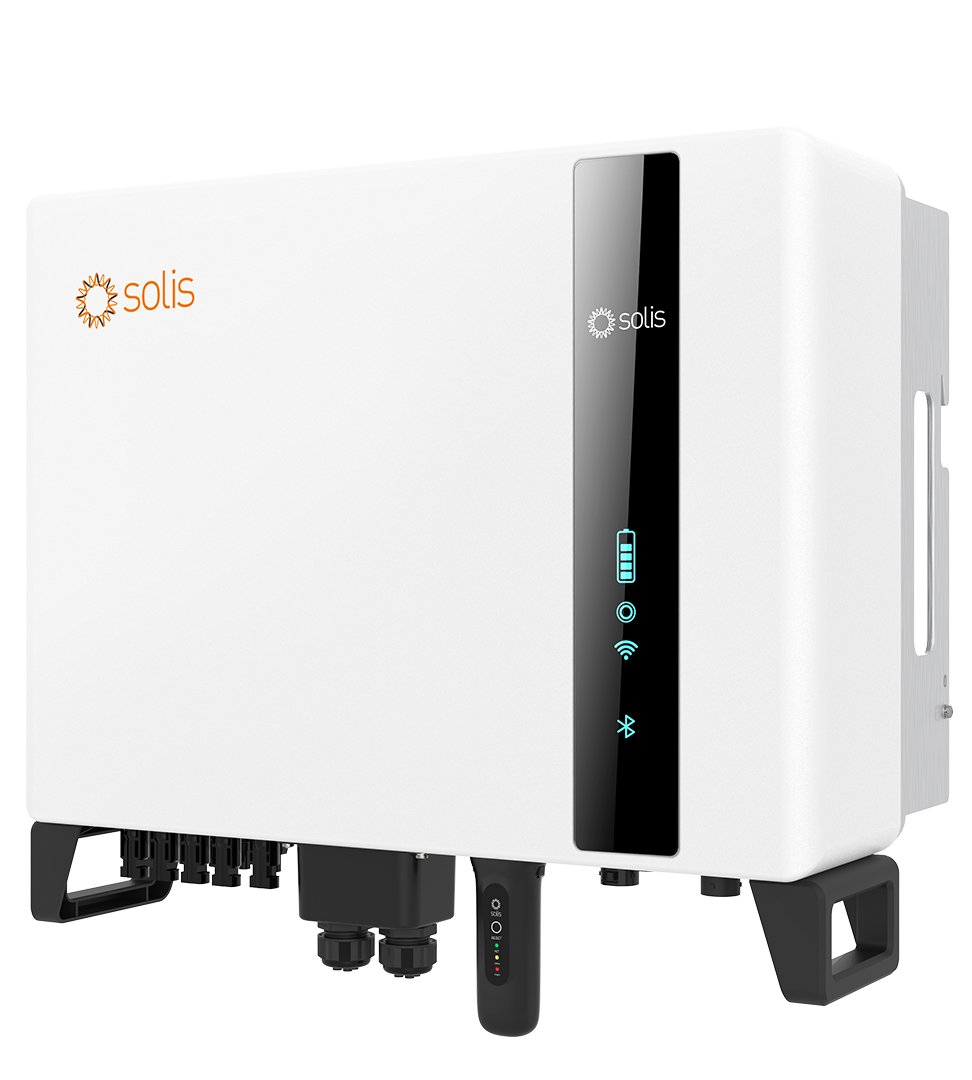

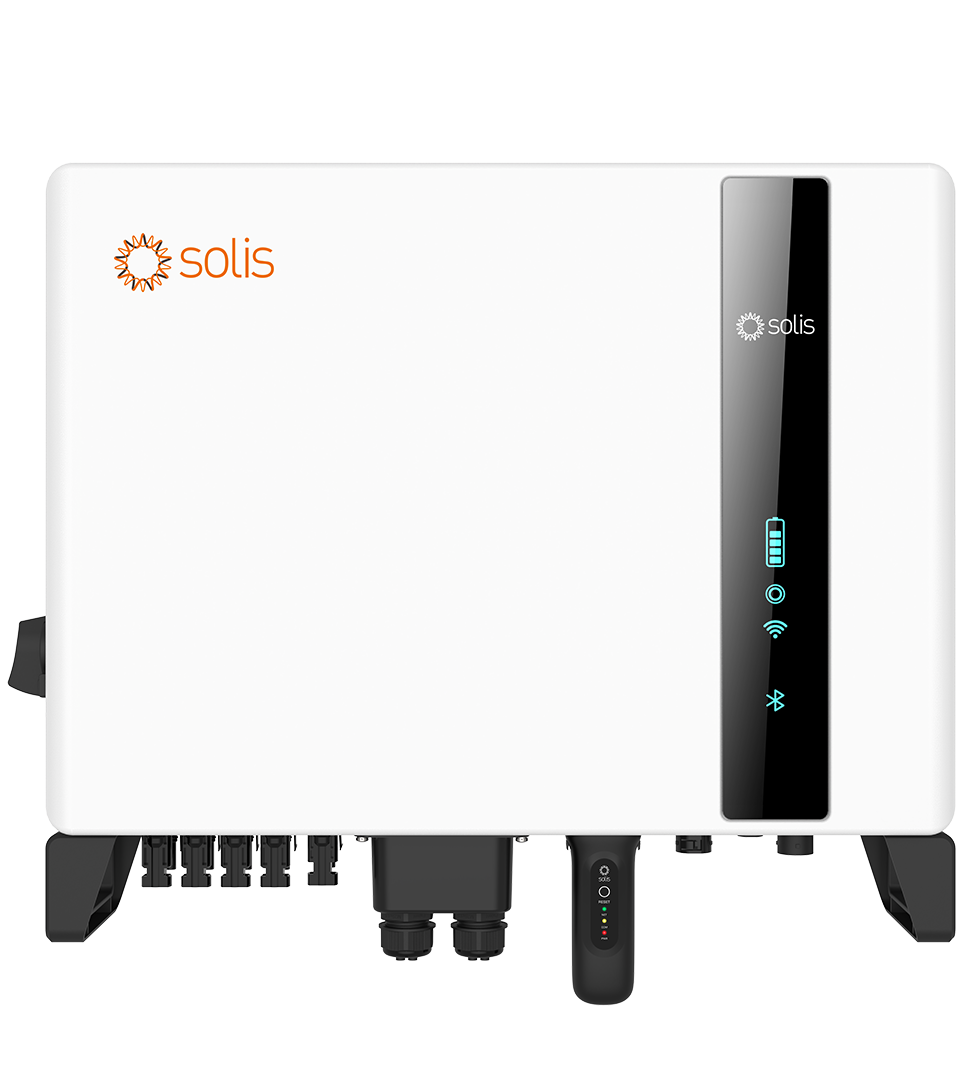

The Solis S6-EH3P5K-H-EU is a three-phase, high-voltage hybrid inverter rated at 5kW, taking a recommended PV array of up to 10kW across 2 MPPT inputs (200-850V range, 16A max per input). It pairs with a 120-600V battery, with charge/discharge power up to 5kW (25A), and switches to backup power in under 10ms, delivering 1.6x rated power for 60s in off-grid mode. Maximum efficiency is 96.50%, with 96.77% EU weighted efficiency. Measuring 600 x 500 x 210mm and weighing 27.6kg, it is IP66-rated for -25°C to +60°C operation, with Bluetooth and app setup and RS485/CAN communication.
Specifications
Electrical
| Recommended max. PV array size | 10 kW |
|---|---|
| Max. usable PV input power | 8.0 kW |
| Start-up voltage | 160 V |
| Max. short circuit current (per MPPT) | 24 A |
| Rated output power | 5 kW |
| Max. apparent output power | 5 kVA |
| Rated grid voltage | 380 / 400 V (3/N/PE) |
| Rated grid output current | 7.6 / 7.2 A |
| Max. input current (grid AC) | 11.4 / 10.9 A |
| Power factor | > 0.99 (0.8 leading to 0.8 lagging) cos(φ) |
| THDi | < 3% |
| Max. efficiency | 96.50% |
| EU efficiency | 96.77% |
| Back-up switch time | < 10 ms |
| Max. apparent output power (back-up) | 1.6x rated power, 60s |
Battery
| Max. charge / discharge power | 5 kW |
|---|---|
| Max. charge / discharge current | 25 A |
Physical
| Dimensions | 600 x 500 x 210 mm (W x H x D) |
|---|---|
| Weight | 27.6 kg |
Environmental
| Operating temperature range | -25 to +60 °C |
|---|---|
| Ingress protection | IP66 |
| Noise emission (typical) | < 46.9 dB(A) |
| Max. operation altitude | 4000 m |
General
| Rated output | 5 kW |
|---|---|
| Phases | Three phase |
| Hybrid | Hybrid |
| Inverter Strings Per Mppt | 1 |
| Inverter Mppt Vmin | 200 |
| Inverter Mppt Vmax | 850 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 16 |
| Inverter Battery Vmin | 120 |
| Inverter Battery Vmax | 600 |
Documents and datasheets
Datasheets
S6-EH3P5K-H-EU — Datasheet
PDF · 392 kB
