Brand: Solis
Product code: AEB-00441

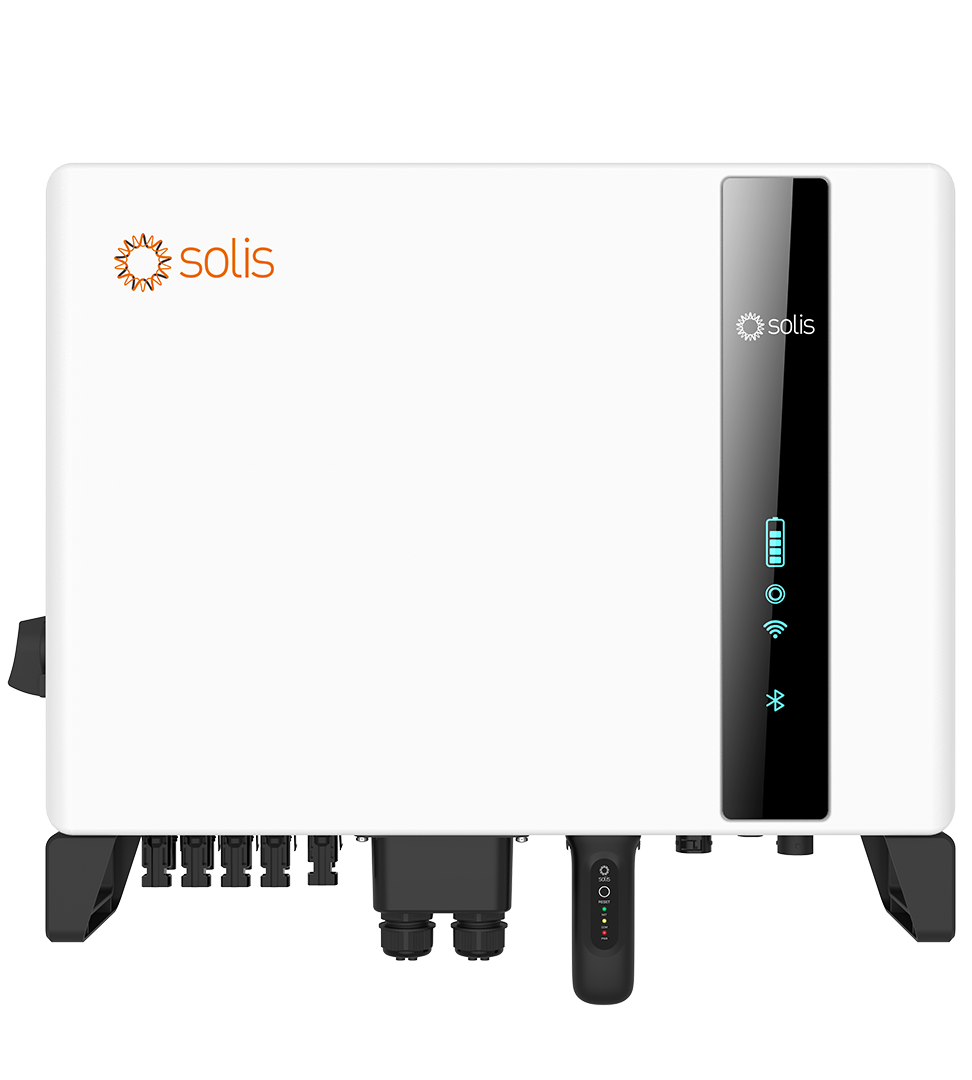

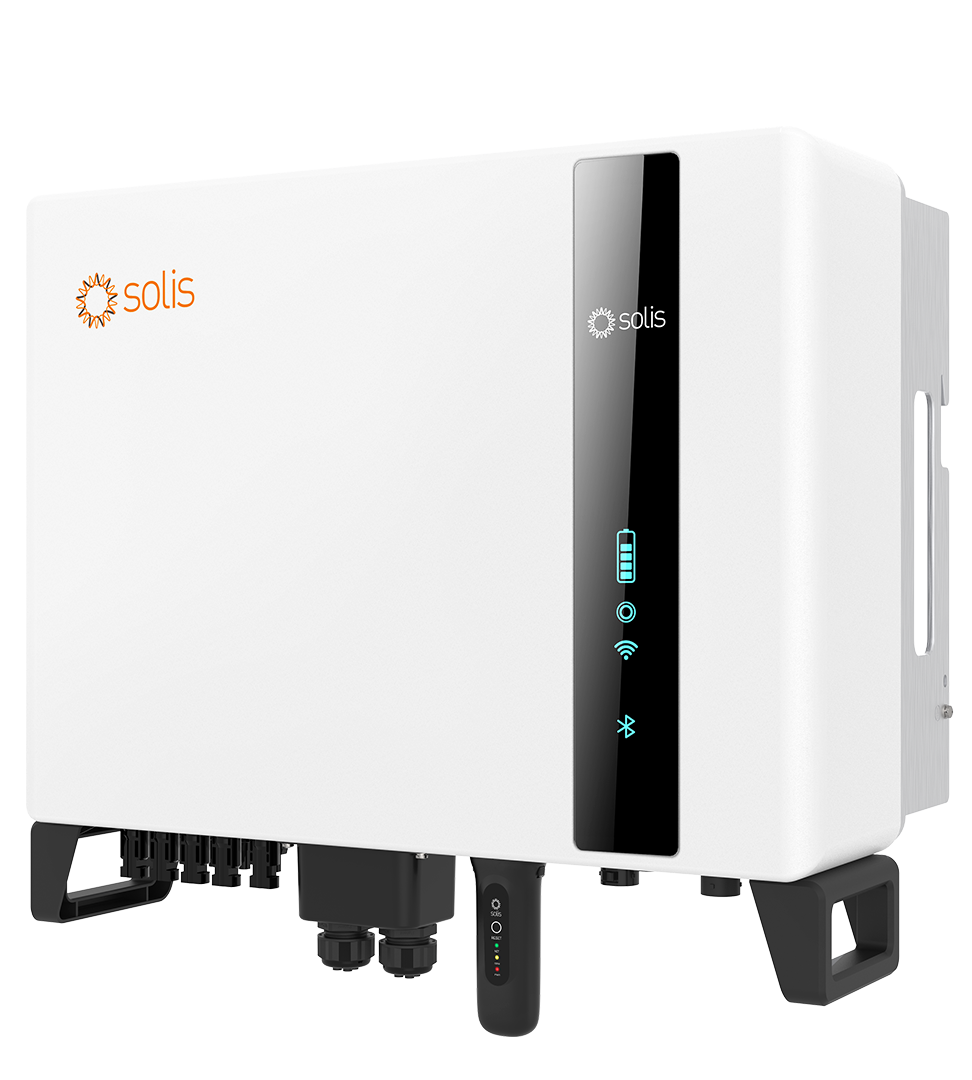

S6 6kW 3PH Hybrid Inverter (incl. 3PH meter) UK
- 6 kW
- Three phase
- Hybrid
- 1
- 200
- 850
Solis S6-EH3P6K-H-EU 6kW three-phase high-voltage hybrid inverter; catalogue SKU carries a UK regional label on the same hardware.
£1,252.43 inc. VAT
£1,043.69 exc. VAT
In stock
The Solis S6-EH3P6K-H-EU is a three-phase, high-voltage hybrid inverter rated at 6kW, taking a recommended PV array of up to 12kW across 2 MPPT inputs (200-850V range, 16A max per input). It pairs with a 120-600V battery, with charge/discharge power up to 6kW (25A), and switches to backup power in under 10ms, delivering 1.6x rated power for 60s in off-grid mode. Maximum efficiency is 97.00%, with 97.10% EU weighted efficiency. Measuring 600 x 500 x 230mm and weighing 30.2kg, it is IP66-rated for -25°C to +60°C operation, with Bluetooth and app setup and RS485/CAN communication.
Specifications
Electrical
| Recommended max. PV array size | 12 kW |
|---|---|
| Max. usable PV input power | 9.6 kW |
| Start-up voltage | 160 V |
| Max. short circuit current (per MPPT) | 24 A |
| Rated output power | 6 kW |
| Max. apparent output power | 6 kVA |
| Rated grid voltage | 380 / 400 V (3/N/PE) |
| Rated grid output current | 9.1 / 8.7 A |
| Max. input current (grid AC) | 13.6 / 13.0 A |
| Power factor | > 0.99 (0.8 leading to 0.8 lagging) cos(φ) |
| THDi | < 3% |
| Max. efficiency | 97.00% |
| EU efficiency | 97.10% |
| Back-up switch time | < 10 ms |
| Max. apparent output power (back-up) | 1.6x rated power, 60s |
Battery
| Max. charge / discharge power | 6 kW |
|---|---|
| Max. charge / discharge current | 25 A |
Physical
| Dimensions | 600 x 500 x 230 mm (W x H x D) |
|---|---|
| Weight | 30.2 kg |
Environmental
| Operating temperature range | -25 to +60 °C |
|---|---|
| Ingress protection | IP66 |
| Noise emission (typical) | < 46.9 dB(A) |
| Max. operation altitude | 4000 m |
General
| Rated output | 6 kW |
|---|---|
| Phases | Three phase |
| Hybrid | Hybrid |
| Inverter Strings Per Mppt | 1 |
| Inverter Mppt Vmin | 200 |
| Inverter Mppt Vmax | 850 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 16 |
| Inverter Battery Vmin | 120 |
| Inverter Battery Vmax | 600 |
Documents and datasheets
Datasheets
S6-EH3P6K-H-EU — Datasheet
PDF · 392 kB
