Brand: Solis
Product code: AEI-00795
S6 Mini 2kW 1MPPT 1Ph Inverter - with DC isolator
- 2 kW
- Single phase
- 1 MPPT
- 3
- 1
- 500

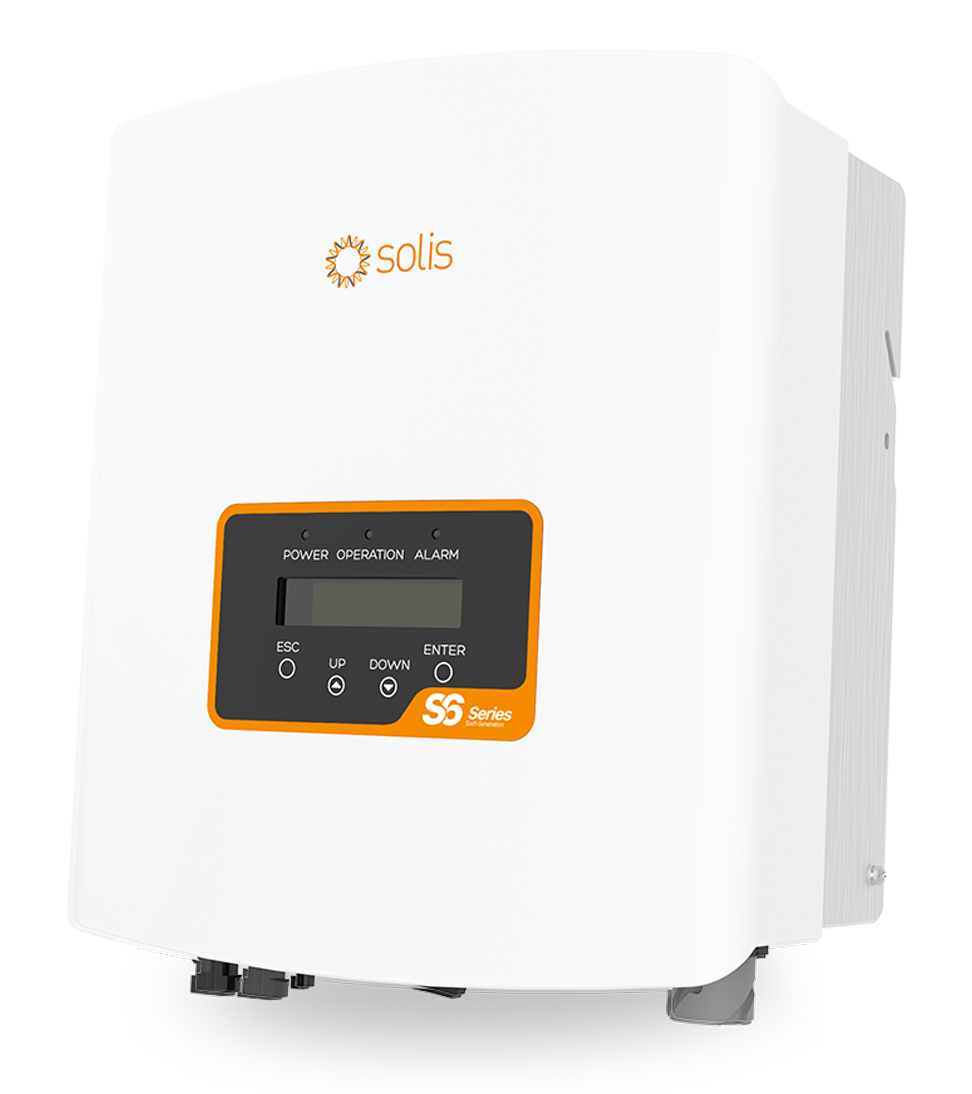

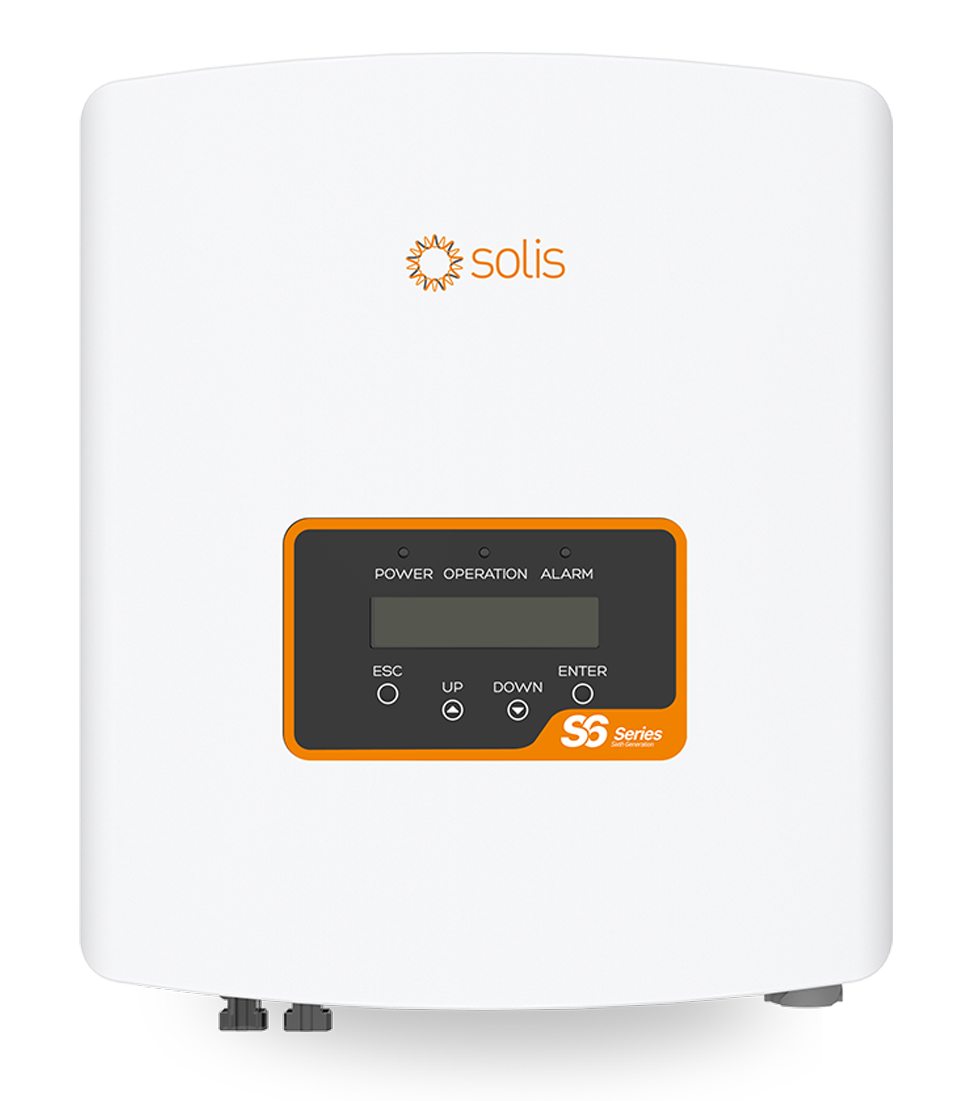

Solis S6-GR1P2K-M S6 Mini single-phase grid-tied inverter, 2kW output, 1 MPPT, with integrated DC switch.
£324.80 inc. VAT
£270.67 exc. VAT
In stock
The Solis S6-GR1P2K-M is a 2kW single-phase grid-tied string inverter from the S6 Mini range, for small residential PV systems with a recommended maximum array size of 3kW. It has one MPPT tracker for a single string. Maximum efficiency is 97.1%, with 96.4% EU efficiency, and a DC switch is integrated. The transformerless unit is naturally cooled, with typical noise below 20dB(A), and its IP66 enclosure is rated for -25°C to +60°C. It measures 310 x 373 x 160mm, uses MC4 connectors on the DC side and a quick-connection plug on the AC side, and has an LCD display with RS485 communication and optional Wi-Fi or GPRS monitoring. It is listed for connection under G98.
Specifications
Input DC
| Recommended max. PV power | 3 kW |
|---|---|
| Max. short circuit current | 22 A |
| MPPT number / Max. input strings number | 1 / 1 |
Output AC
| Rated output power | 2 kW |
|---|---|
| Max. apparent output power | 2.2 kVA |
| Max. output power | 2.2 kW |
| Rated grid voltage | 1/N/PE, 220 / 230 V |
| Rated grid frequency | 50 / 60 Hz |
| Rated grid output current | 9.1 / 8.7 A |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) |
| THDi | < 3% |
Efficiency
| Max. efficiency | 97.1% |
|---|---|
| EU efficiency | 96.4% |
Protection
| Integrated DC switch | Yes |
|---|
General
| Dimensions (W × H × D) | 310 × 373 × 160 mm |
|---|---|
| Topology | Transformerless |
| Self-consumption (night) | < 1 W |
| Operating ambient temperature range | -25 to +60 °C |
| Relative humidity | 0 - 100% |
| Ingress protection | IP66 |
| Noise emission (typical) | < 20 dB(A) |
| Cooling concept | Natural cooling |
| Max. operation altitude | 4000 m |
| Rated output | 2 kW |
| Phases | Single phase |
| MPPT trackers | 1 MPPT |
| Inverter Dc Max | 3 |
| Inverter Strings Per Mppt | 1 |
| Inverter Mppt Vmax | 500 |
Features
| DC connection | MC4 connector |
|---|---|
| AC connection | Quick connection plug |
| Display | LCD |
| Communication | RS485, Optional: Wi-Fi, GPRS |
Documents and datasheets
Datasheets
S6-GR1P2K-M — Datasheet
PDF · 228 kB
