Brand: SolarEdge
Product code: AEI-00750
SE-SIN-RWR0IBNH8 - 3PH With DC Safety Unit, Rapid Shutdown, AC/DC surge protection (Type II), MC4
- Three phase

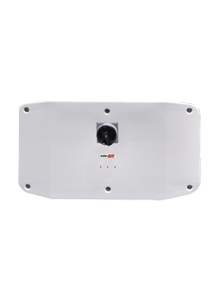

Synergy Manager for a SolarEdge three-phase Synergy inverter, with DC safety unit, optional rapid shutdown and Type II AC/DC surge protection.
£2,094.34 inc. VAT
£1,745.28 exc. VAT
In stock
This is a Synergy Manager for SolarEdge's three-phase inverter range with Synergy technology, for 400V grids in Europe (the family spans SE50K to SE100K). A complete inverter is made up of one Synergy Manager and two or three Synergy Units, which are separate items. This Manager has the DC safety unit fitted, optional rapid shutdown (automatically de-energising DC conductors on AC grid disconnect), built-in arc fault protection, and Type II surge protection on the DC side (integrated, field replaceable) with an AC surge protection kit sold separately. DC connections are MC4 or gland depending on part number. The Synergy Manager measures 360 x 560 x 295mm, weighs 18kg, operates from -40 to +60°C and is rated IP65 for indoor or outdoor mounting.
Specifications
Synergy Manager
| Dimensions, Synergy Manager (H x W x D) | 360 x 560 x 295 mm |
|---|---|
| Weight, Synergy Manager | 18 kg |
| DC disconnect switch | Optional |
| DC surge protection | Type II, field replaceable, integrated |
| AC surge protection | Type II, field replaceable, optional (AC SPD kit for Synergy Manager, P/N SE-AC-SPD-SM, 5 units per box, purchased separately) |
| RS485 surge protection (ports 1 + 2) | Type II, field replaceable, integrated |
| DC fuses (single pole) | Optional, 25 A / 30 A |
| DC connection | MC4 or gland, depending on part number; only MC4 connectors made by Staubli are approved |
| Rapid shutdown | Optional (automatic upon AC Grid Disconnect) |
| Arc fault protection | Built-in, user configurable (according to UL 1699B) |
| Operating temperature range | -40 to +60 °C |
| Noise | < 67 dBA |
| Protection rating | IP65, outdoor and indoor |
| Mounting | Brackets provided |
| Maximum input voltage DC+ to DC- (whole inverter, any model in the family) | 1000 V DC |
| Operating voltage range (whole inverter, any model in the family) | 680 - 1000 V DC |
| Ground-fault isolation detection (whole inverter, any model in the family) | 167 kΩ sensitivity per Synergy Unit |
General
| Phases | Three phase |
|---|
Documents and datasheets
Datasheets
SolarEdge Synergy Manager for the Three Phase Inverter with Synergy Technology, for Europe (DC safety unit, rapid shutdown, AC/DC surge protection, MC4) — Datasheet
PDF · 844 kB
