Brand: SolarEdge
Product code: AEB-00342
SolarEdge 10,000W Home Hub Inverter with Whole Home Backup Potential 1PH
- Single phase
- 20
- 480
10kW single-phase Home Hub inverter with MultiRange Concept, integrated SolarEdge Home Battery 400V storage and whole-home backup potential.
£1,819.54 inc. VAT
£1,516.28 exc. VAT
Out of stock

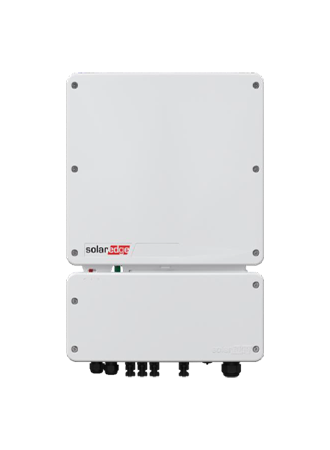

The SolarEdge SE10000H-RWSKBF57 is a 10kW single-phase Home Hub inverter built on SolarEdge's MultiRange Concept - one physical part number on-site commissioned, via SolarEdge Go, to any power class from 2.2kW to 10kW. It manages PV production, up to three SolarEdge Home Battery 400V units and backup operation during a power outage from a single unit, drawing up to 20kW of PV input and reaching 99.2% peak and 99% European weighted efficiency. Backup output is selectable from 3,000W up to the unit's own rated power and requires the separately purchased SolarEdge Home Backup Interface. The unit measures 535 x 370 x 185mm with its integrated connection unit, weighs 19.6kg, is naturally cooled, carries an IP65 rating for indoor or outdoor mounting, and is covered by a 12-year product warranty, extendable to 25 years.
Specifications
AC output (on-grid)
| Rated AC Power | 10,000 VA |
|---|---|
| Maximum Continuous Output Current RMS | 45.5 A |
| Fault Current Protection (100ms) | 70 A |
AC output (backup, 50Hz)
| Maximum AC Power in Backup Operation | 10,000 W |
|---|---|
| Maximum Continuous Output Current in Backup Operation | 45.5 A |
AC output (backup, 60Hz)
| Maximum AC Power in Backup Operation | 12,500 W |
|---|
Input
| Maximum DC PV Power | 20,000 W |
|---|---|
| Maximum Input Current | 25.5 Adc |
| Nominal DC Input Voltage | 380 Vdc |
Efficiency
| Maximum Inverter Efficiency | 99.2% |
|---|---|
| European Weighted Efficiency | 99% |
Battery storage
| Supported battery | SolarEdge Home Battery 400V |
|---|---|
| Number of batteries per inverter | 3 max |
| Continuous power per battery | 5000 W |
Installation
| Warranty | 12 years (standard), extendable to 25 |
|---|---|
| Noise | 25 dBA max |
| Protection Rating | IP65 |
General
| Phases | Single phase |
|---|---|
| Inverter Dc Max | 20 |
| Inverter Dc Vmax | 480 |
Documents and datasheets
Datasheets
SolarEdge Home Hub Inverter, Single Phase, for Europe / India / Philippines, 10kW (SE10000H-RWSKBF57) — Datasheet
PDF · 873 kB
