Brand: SolarEdge
Product code: AEI-00737
SolarEdge 33,300W Three Phase M4 Basic NO DISPLAY
- Three phase
- 49.95
- 680
- 1000
- 1000
- 48.25
33.3kW three-phase inverter, M4 basic (no-display) configuration, SetApp commissioning, 98.3% peak efficiency.
£1,990.64 inc. VAT
£1,658.87 exc. VAT
In stock

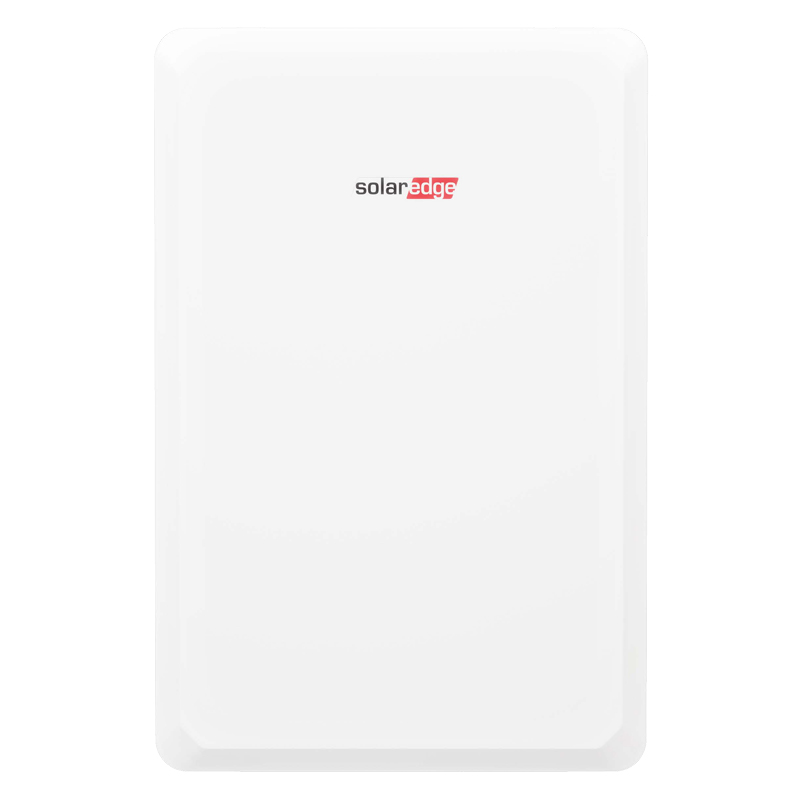

The SolarEdge SE-33300-APP is the M4 Basic, no-display variant of SolarEdge's SE33.3K three-phase string inverter for commercial systems with power optimisers. It delivers 33.3kW rated AC output at up to 98.3% peak efficiency (98% European weighted), from a single MPP tracker accepting up to 49.95kW of PV array power over an operating range of 680-1000V DC. The transformer-less, ungrounded design is commissioned entirely from a smartphone using the SolarEdge SetApp, with no physical display. Standard features include integrated Type II DC surge protection and user-configurable arc fault detection. The base unit measures 550 x 317 x 273mm and weighs 32kg, is IP65 rated for indoor or outdoor mounting, and is cooled by a user-replaceable fan across an operating range of -40°C to +60°C.
Specifications
AC Output
| Rated AC Active Power Output | 33300 W |
|---|---|
| Maximum AC Apparent Output Power | 33300 VA |
| AC Output Voltage (Line to Line / Line to Neutral) | 380/220 or 400/230 Vac |
| Maximum Continuous Output Current (per Phase) | 48.25 Aac |
| AC Frequency | 50/60 ± 5% |
| Total Harmonic Distortion | <3% |
DC Input
| Maximum DC Power (Module STC) | 49950 W |
|---|---|
| Maximum Input Voltage DC+ to DC- | 1000 Vdc |
| Operating Voltage Range | 680-1000 Vdc |
| Maximum Input Current | 48.25 Adc |
Efficiency
| Maximum Inverter Efficiency | 98.3% |
|---|---|
| European Weighted Efficiency | 98% |
| Nighttime Power Consumption | <4 W |
Physical
| Dimensions | 550 x 317 x 273 mm |
|---|---|
| Weight | 32 kg |
Environmental
| Operating Temperature Range | -40 to +60 °C |
|---|---|
| Protection Rating | IP65 |
| Cooling Method | Fan |
| Noise | <62 dBA |
Features
| DC Surge Protection | Type II, field replaceable, integrated |
|---|---|
| Arc Fault Protection | Integrated, User Configurable |
Configuration
| Commissioning | SetApp mobile application via built-in Wi-Fi access point |
|---|
General
| Phases | Three phase |
|---|---|
| Inverter Dc Max | 49.95 |
| Inverter Mppt Vmin | 680 |
| Inverter Mppt Vmax | 1000 |
| Inverter Dc Vmax | 1000 |
| Inverter Mppt Imax | 48.25 |
