Brand: SolarEdge
Product code: AEB-00374
SolarEdge Battery Cabinet 102.4 kWh
- 97.28
- LFP
- AC
SolarEdge CSS-OD AC-coupled commercial battery cabinet, 102.4kWh total / 97.28kWh usable LFP capacity.
£39,580.90 inc. VAT
£32,984.08 exc. VAT
In stock

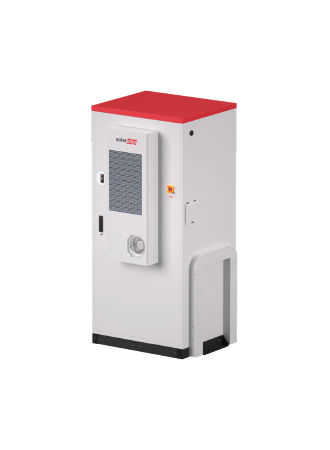

The SolarEdge CSS-OD Battery Cabinet (CSS-OU-20) is a pre-assembled, factory-tested LFP battery enclosure for commercial and industrial storage sites, holding 102.4kWh of total capacity (97.28kWh usable) across two 10-module clusters for 1+1 redundancy. It is AC-coupled to the site through a separately purchased SolarEdge Battery Inverter (PCS050) - up to two cabinets can be paralleled on one inverter with a cabling extension kit - and is managed by the SolarEdge ONE optimisation platform. The cabinet includes a built-in HVAC cooling system and carries a 10-year system warranty.
Specifications
Battery
| Total battery capacity | 102.4 kWh |
|---|---|
| Usable battery capacity | 97.28 kWh |
| Battery module total capacity | 5.12 kWh |
| Number of modules | 10 + 10 |
| Maximum C-rate (charge/discharge) | 0.5 C-rate |
Mechanical
| Battery cabinet dimensions (W x D x H) | 1100 x 930 x 2380 mm |
|---|---|
| Battery cabinet weight | 1433 kg |
| IP protection | IP54 |
Environmental
| Maximum operating altitude | 3000 m |
|---|
Warranty
| Performance warranty | 6000 cycles or 10 years to 70% SoH |
|---|
General
| Battery Usable | 97.28 |
|---|---|
| Battery Chemistry | LFP |
| Battery Coupling | AC |
Documents and datasheets
Datasheets
SolarEdge CSS-OD Battery Cabinet 102.4 kWh (CSS-OU-20) — Datasheet
PDF · 197 kB
