Brand: SolarEdge
Product code: AEE-00632

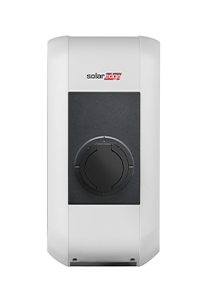

SolarEdge EV Charger 22kW 3PH, Socket Type 2, RFID, MID, UK
SolarEdge EV Charger, 22kW three-phase, Type 2 socket, RFID authentication and MID-certified metering, for UK installations.
£1,426.24 inc. VAT
£1,188.53 exc. VAT
Out of stock
The SolarEdge EV Charger 22kW (SE-EVK22URM-01) is a three-phase home charging point delivering up to 22kW to a Type 2 socket, with a configurable rated current from 10A to 32A. It integrates with the SolarEdge Home ecosystem to charge from excess solar generation, supports custom scheduling for off-peak charging, and includes an RFID reader and MID-certified metering for accurate billing. The unit is rated IP54 and IK10 for indoor or outdoor mounting, and is UKCA-marked for use in the United Kingdom.
Specifications
Electrical
| Rated AC power output (three phase) | 22 kW |
|---|---|
| Nominal AC output voltage | 230 / 400 V |
| Line frequency | 50 Hz |
| Rated current, configurable | 10 / 13 / 16 / 20 / 25 / 32 A |
| Internal consumption, idle | 4 W |
| Internal consumption, plugged in | 5 W |
| Internal consumption, charging | 7 W |
Protection
| Rated short-circuit current | <10 kA |
|---|---|
| Protection class | IP54 |
| Mechanical impact protection | IK10 |
Mechanical
| Height (socket variant) | 495 mm |
|---|---|
| Width | 240 mm |
| Depth | 142 mm |
| Weight (socket variant) | 5 kg |
Documents and datasheets
Datasheets
SolarEdge EV Charger, 22 kW, Socket, RFID, MID, UKCA (SE-EVK22URM-01) — Datasheet
PDF · 226 kB
