Brand: SolarEdge
Product code: AEE-00633

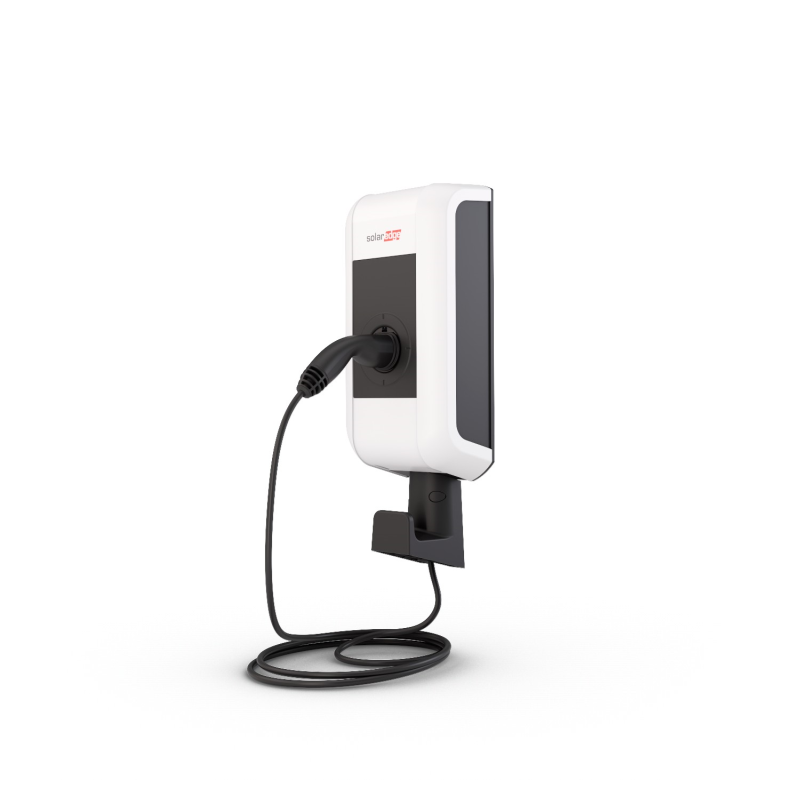

SolarEdge EV Charger 7.4kW 1PH, 6m Cable Type 2, UK
- 7.4
- 1
- true
- 6
- Type 2
SolarEdge EV Charger, 7.4kW single-phase with a 6m Type 2 tethered cable, IP54 rated.
£1,255.47 inc. VAT
£1,046.23 exc. VAT
In stock
The SolarEdge EV Charger (SE-EVK74C00-01) is a 7.4kW single-phase residential charger on a 230V, 50Hz supply, with configurable current of 10, 13, 16, 20, 25 or 32A. It has an integral 6m Type 2 tethered connector (EN 62196-1) and supports TT, TN and IT mains forms. Internal consumption is 4W idle, 5W plugged in and 7W while charging. It measures 643 x 240 x 142mm and weighs 7.8kg, and charges to Mode 3 (IEC 61851-1) with RDC-DD residual current protection (>6mA, <10s, IEC 62955) and an over-voltage category of III. The enclosure is rated IP54 and IK10. It is UKCA marked, G-100 compliant, and carries a 3-year warranty.
Specifications
Electrical
| Rated AC Power Output | 7.4 kW |
|---|---|
| Rated Current (configurable) | 10 / 13 / 16 / 20 / 25 / 32 A |
| Nominal AC Output Voltage | 230 V |
| Line Frequency | 50 Hz |
| Mains Forms | TT / TN / IT |
| Internal Consumption | Idle: 4; plugged in: 5; charging: 7 W |
Connector & Cable
| Connector Type | Type 2: up to 32 A / 400 V AC EN 62196-1 |
|---|---|
| Cable Length | 6 m (for variants with cable) |
Protection
| Charge Mode | Mode 3 IEC 61851-1 AC charging |
|---|---|
| Over-Voltage Category | III EN 60664 |
| Protection Class | IP54 |
| Protection Against Mechanical Impact | IK10 |
| Residual Direct Current (RDC-DD) | >6 mA, <10 s, IEC 62955 |
Physical
| Height x Width x Depth (Cable) | 643 x 240 x 142 mm |
|---|---|
| Weight (Cable) | 7.8 kg |
General
| EV Charging Rated | 7.4 |
|---|---|
| EV Charging Phases | 1 |
| EV Charging Tethered | true |
| EV Charging Cable Length | 6 |
| EV Charging Connector Type | Type 2 |
