Brand: SolarEdge
Product code: AEB-00377

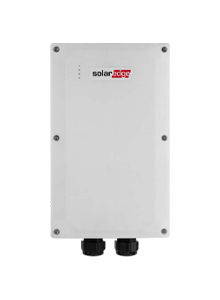

SolarEdge Home Backup Interface
SolarEdge Home Backup Interface for single-phase Home Hub inverters, automatic whole-home or selected-load backup on grid interruption.
£424.75 inc. VAT
£353.96 exc. VAT
In stock
The SolarEdge Home Backup Interface, Single Phase (BI-EU1P, PN BI-NEUNU-1P-01), automatically provides backup power to home loads when the grid goes down, working with a single-phase SolarEdge Home Hub Inverter. It can back up the entire home or selected circuits, integrates an energy meter accurate to 1.25% for import/export monitoring, and is rated for 100A continuous AC current with a switchover time of under 3 seconds. The enclosure is IP65-rated for indoor or outdoor mounting and carries a 12-year product warranty.
Specifications
Grid connection
| AC current input | 100 A |
|---|---|
| AC voltage line-neutral (nominal) | 230 V |
| On grid to off grid switchover time | <3 sec |
Output
| Maximum AC current output | 100 A |
|---|
Additional features
| Energy meter accuracy | 1.25% |
|---|
Installation
| Weight | <5 kg |
|---|---|
| Dimensions (H x W x D) | 390 x 238 x 147 mm |
| Operating temperature range | -40 to +50 C |
| Protection rating | IP65 |
Documents and datasheets
Datasheets
SolarEdge Home Backup Interface, Single Phase, for Europe (BI-EU1P / BI-NEUNU-1P-01) — Datasheet
PDF · 185 kB
