Brand: SolarEdge
Product code: AEB-00367
SolarEdge Home Battery - 1PH 400V 9.7kWh Battery v02
- Single phase
- 9.7
- DC
- 5
- 5
- 3
9.7kWh usable SolarEdge Home Battery 400V for a single-phase SolarEdge Home Wave or StorEdge inverter.
£5,336.62 inc. VAT
£4,447.19 exc. VAT
In stock

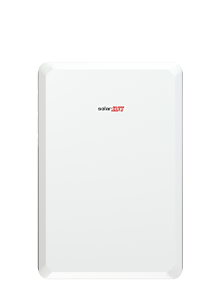

The SolarEdge Home Battery 400V (BAT-10K1P) packs 9.7kWh of usable energy (100% depth of discharge) into a DC-coupled design for SolarEdge's single-phase Home Wave and StorEdge inverters. It delivers up to 5000W continuous output and 7500W for 10 seconds in backup operation, with a peak round-trip efficiency above 94.5%. The unit measures 790 x 1179 x 250mm, weighs 119kg, mounts to floor or wall, carries an IP55 rating for indoor or outdoor use, and is covered by a 10-year product warranty. Up to three units can be installed per inverter, each needing its own pair of branch connectors except the last.
Specifications
Battery
| Usable Energy (100% DoD) | 9700 Wh |
|---|---|
| Peak Output Power in Backup (10 seconds) | 7500 W |
| Peak Roundtrip Efficiency | 94.5% |
| Voltage Range | 350-450 Vdc |
Compatibility
| Compatible inverters | SolarEdge Home Wave Inverter, StorEdge Single Phase Inverter with HD-Wave Technology |
|---|
Installation
| Dimensions (W x H x D) | 790 x 1179 x 250 mm |
|---|---|
| Weight | 119 kg |
| Protection Rating | IP55 |
General
| Phases | Single phase |
|---|---|
| Battery Usable | 9.7 |
| Battery Coupling | DC |
| Battery Max Charge | 5 |
| Battery Max Discharge | 5 |
| Battery Modules Max | 3 |
Documents and datasheets
Datasheets
SolarEdge Home Battery 400V, 9.7kWh, Single Phase (BAT-10K1P) — Datasheet
PDF · 179 kB
